RCF BS 5EN Suspended Sound Projectors - 5" 10W (IP65) - EN54-24

Suspended Sound Projectors - 5" 10W (IP65) - EN54-24

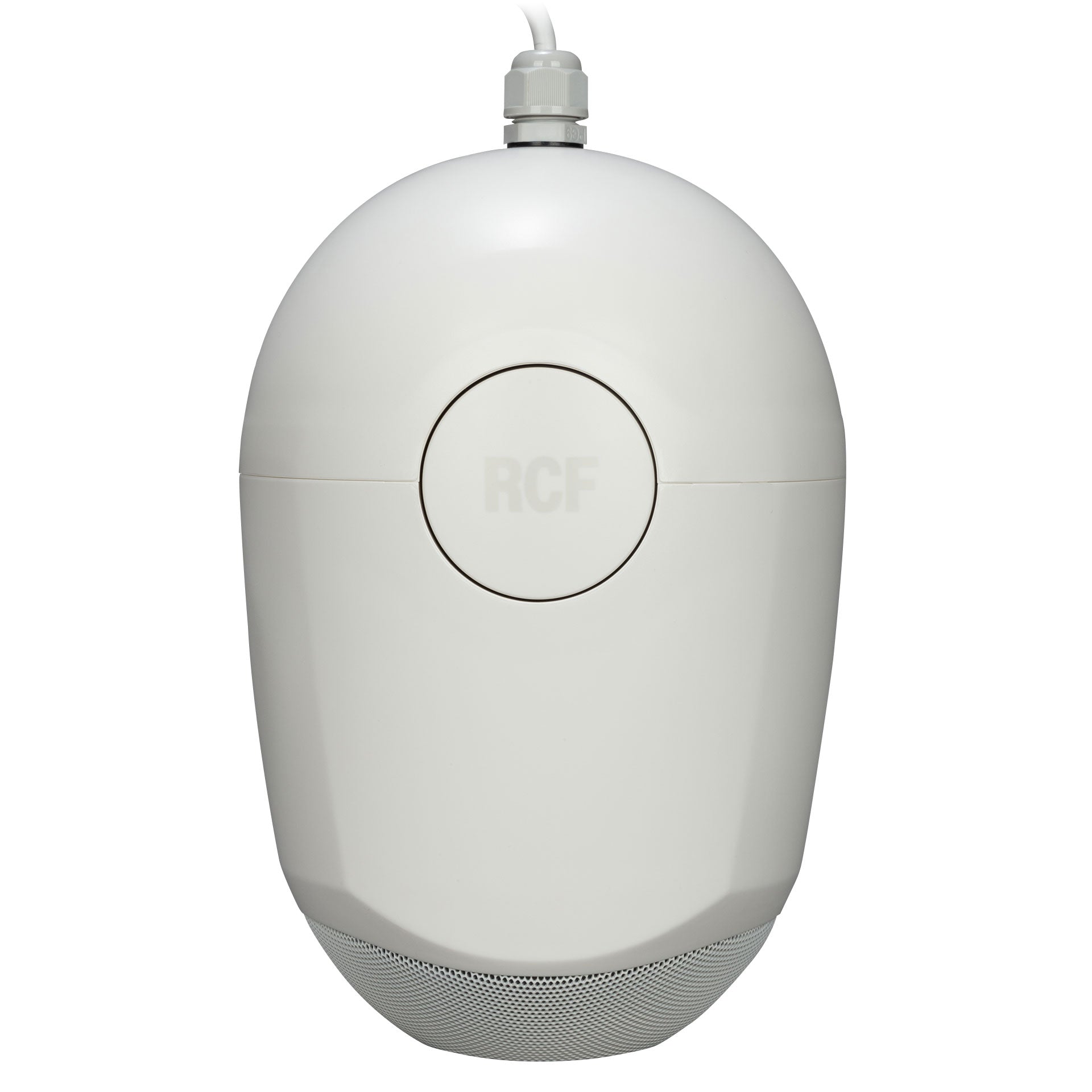

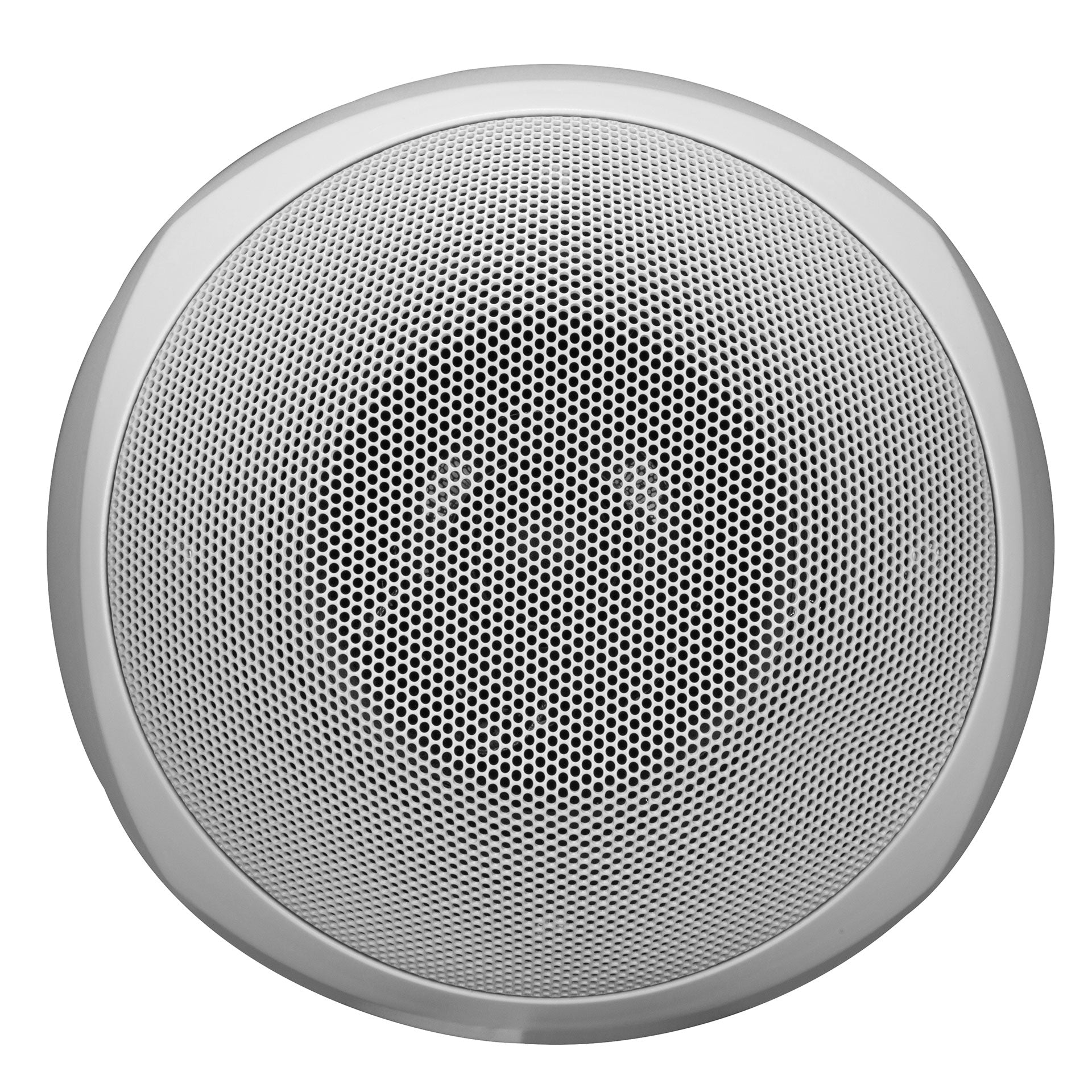

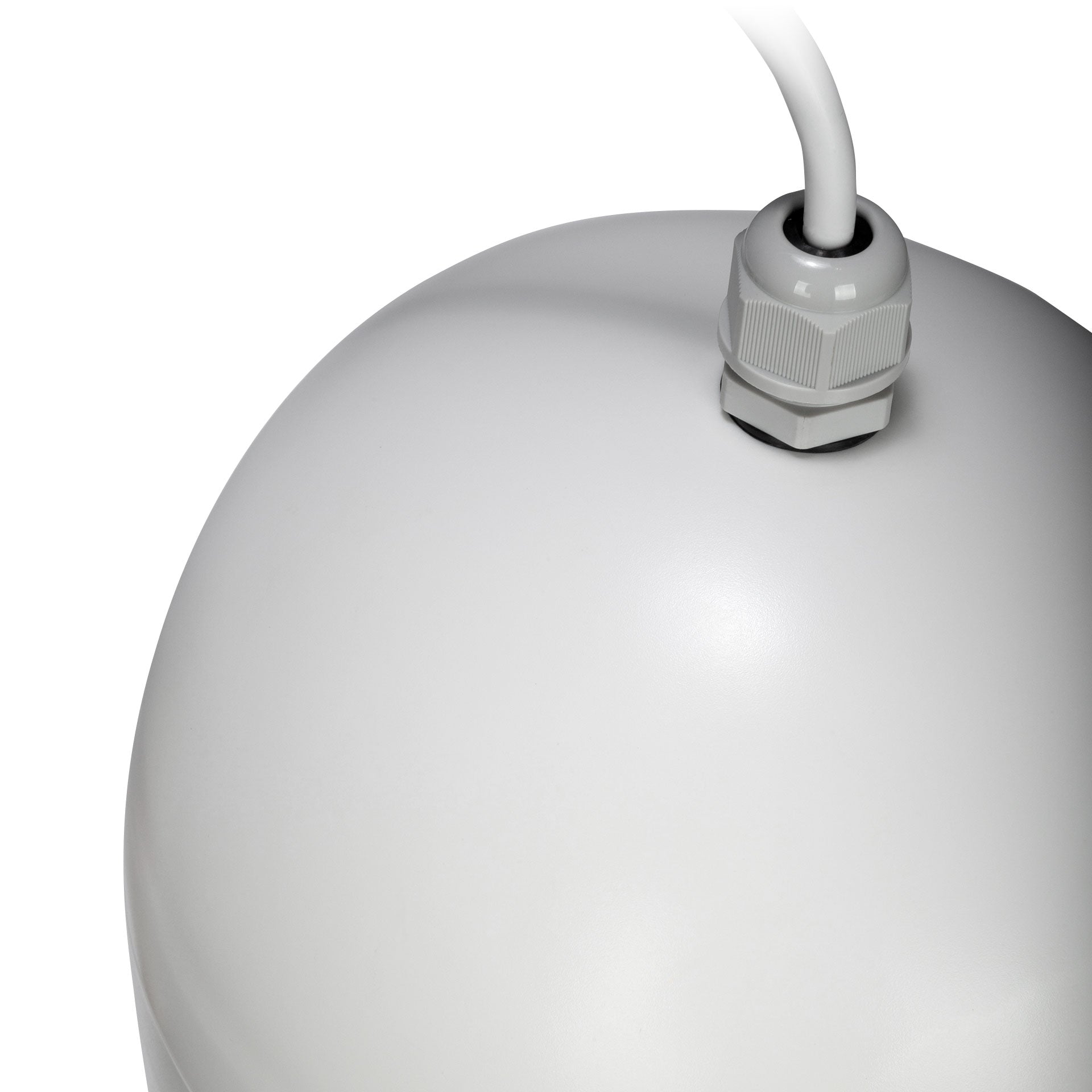

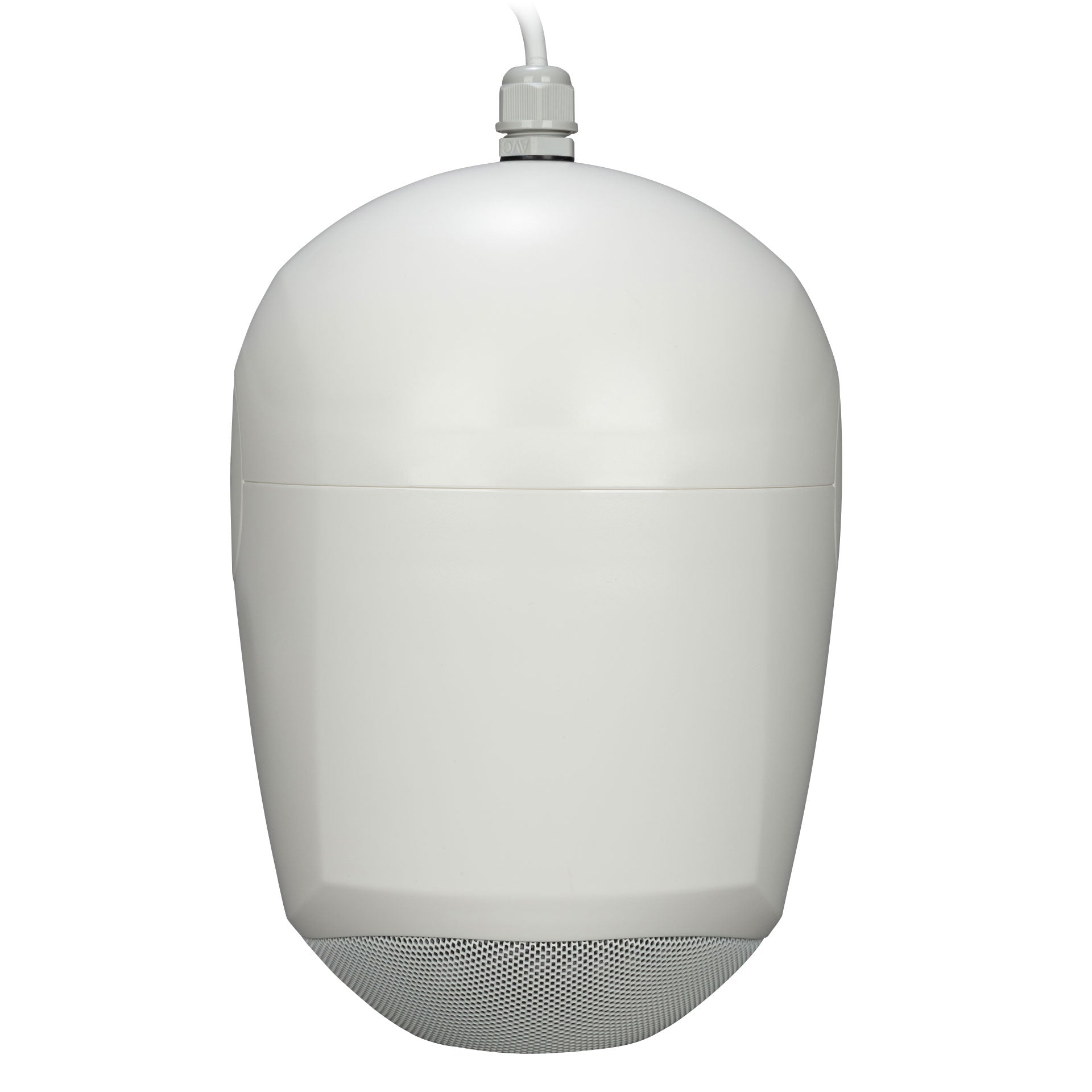

BS 5EN is a pendant speaker suitable for all those installations where high intelligibility for alarm messages broadcasting and great sound reproduction quality are required. Thanks to its IP65 protection grade, it can be installed both indoor and outdoor. Moreover, a modern and endearing design makes it the perfect product for environments where projectors are intended also as architectural elements and contribute to improve global aesthetics.

FEATURES

• 5" coaxial woofer with 0.75" dome tweeter.
• Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W.
• 88 dB sensitivity.
• Colour white RAL 9016.
• Flameproof ABS body, steel grille.
• In/out ceramic terminal block.
• Thermal fuse protection.
• Protection grade IP65.
• 5 m cable included.

Specifications

ACOUSTICAL SPECIFICATIONS

• Frequency Response (-10dB): 80 Hz - 20000 Hz
• Max SPL @ 1m: 101 dB
• Max SPL @ 4m: 89 dB
• Coverage angle: 170°
• System Sensitivity: 88 dB
• System Sensitivity 1W @ 4m: 76 dB

POWER SECTION

• Amplification: Full Range
• Power Handling: 20 W
• Peak Power Handling: 80 W PEAK
• Protections: Thermal fuse

TRANSDUCERS

• Dome Tweeter: 1 x 0.75''
• Woofer: 1 x Coaxial 5.0''

INPUT/OUTPUT SECTION

• Input connectors: Ceramic screw terminals
• Output connectors: Ceramic screw terminals
• Constant Voltage Transformer: 100 V
• Power selection 1: 20 W - 500 ohm
• Power selection 2: 10 W - 1000 ohm
• Power selection 3: 5 W - 2000 ohm
• Power selection 4: 2.5 W - 4000 ohm

STANDARD COMPLIANCE

• IP protection grade: IP 65
• Safety agency: CE compliant
• EN54-24 certified: Yes
• CPR number: 0068-CPR-058/2014

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: ABS
• Hardware: Wall mount metal plate and 5m cable
• Grille: Steel
• Color: White - RAL 9016

SIZE / WEIGHT

• Height: 261 mm / 10.28 inches
• Width: 176 mm / 6.93 inches
• Depth: 183 mm / 7.2 inches
• Weight: 2.79 kg / 6.15 lbs

SHIPPING INFORMATION

• Package Height: 230 mm / 9.06 inches
• Package Width: 350 mm / 13.78 inches
• Package Depth: 230 mm / 9.06 inches
• Package Weight: 4.39 kg / 9.68 lbs
