RCF BM 3022 Goos. consolle c/w microph., 0 dB output, AC/DC

Goos. consolle c/w microph., 0 dB output, AC/DC

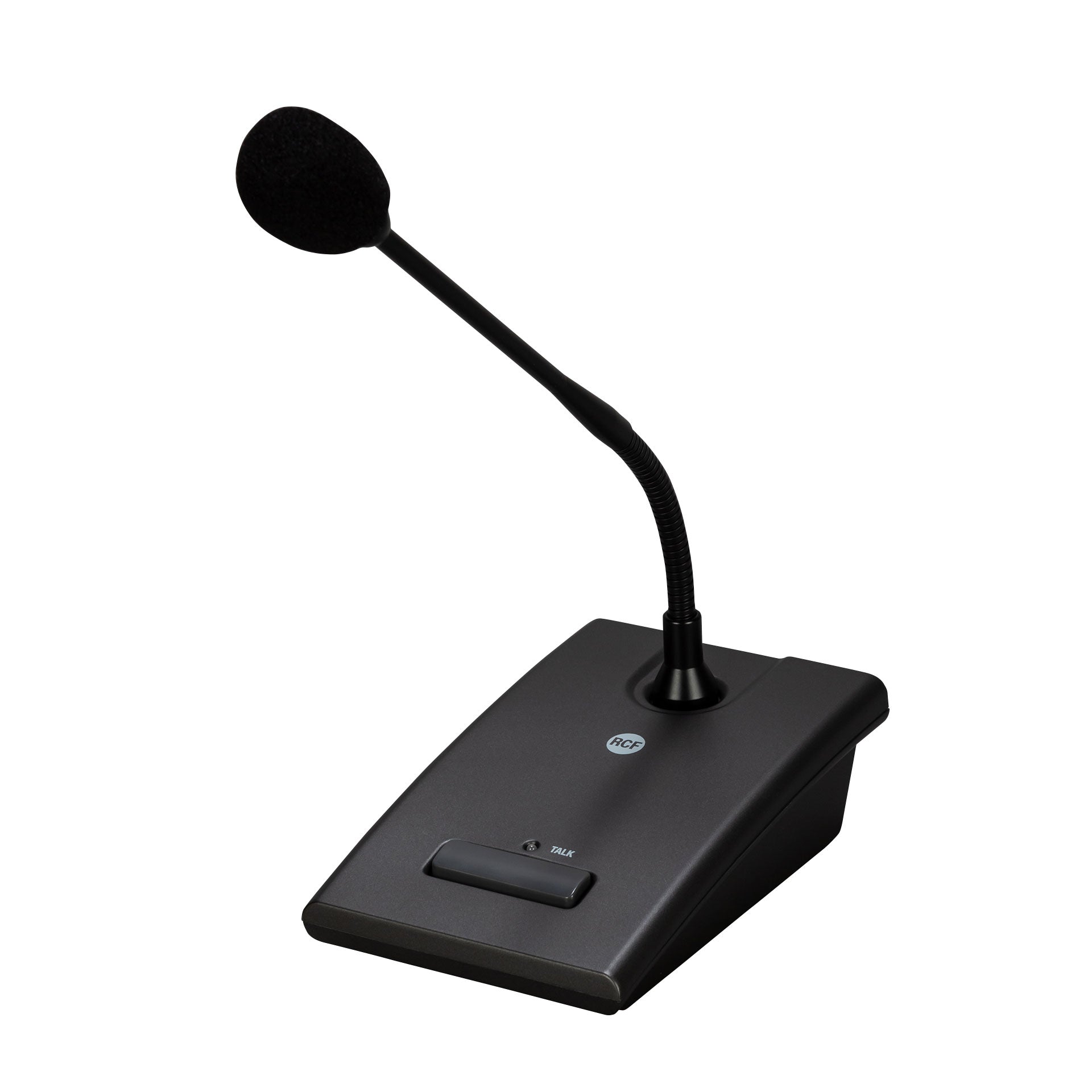

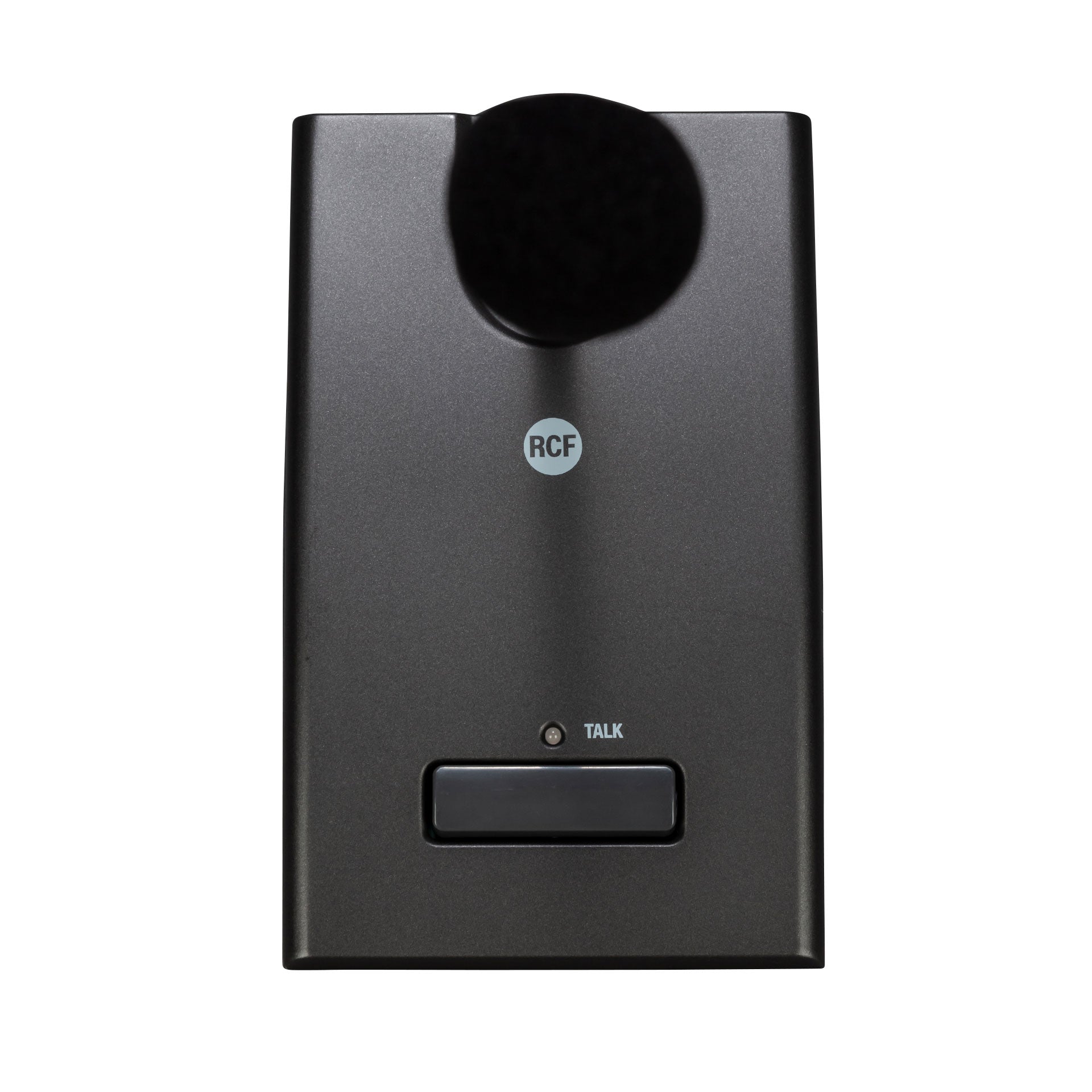

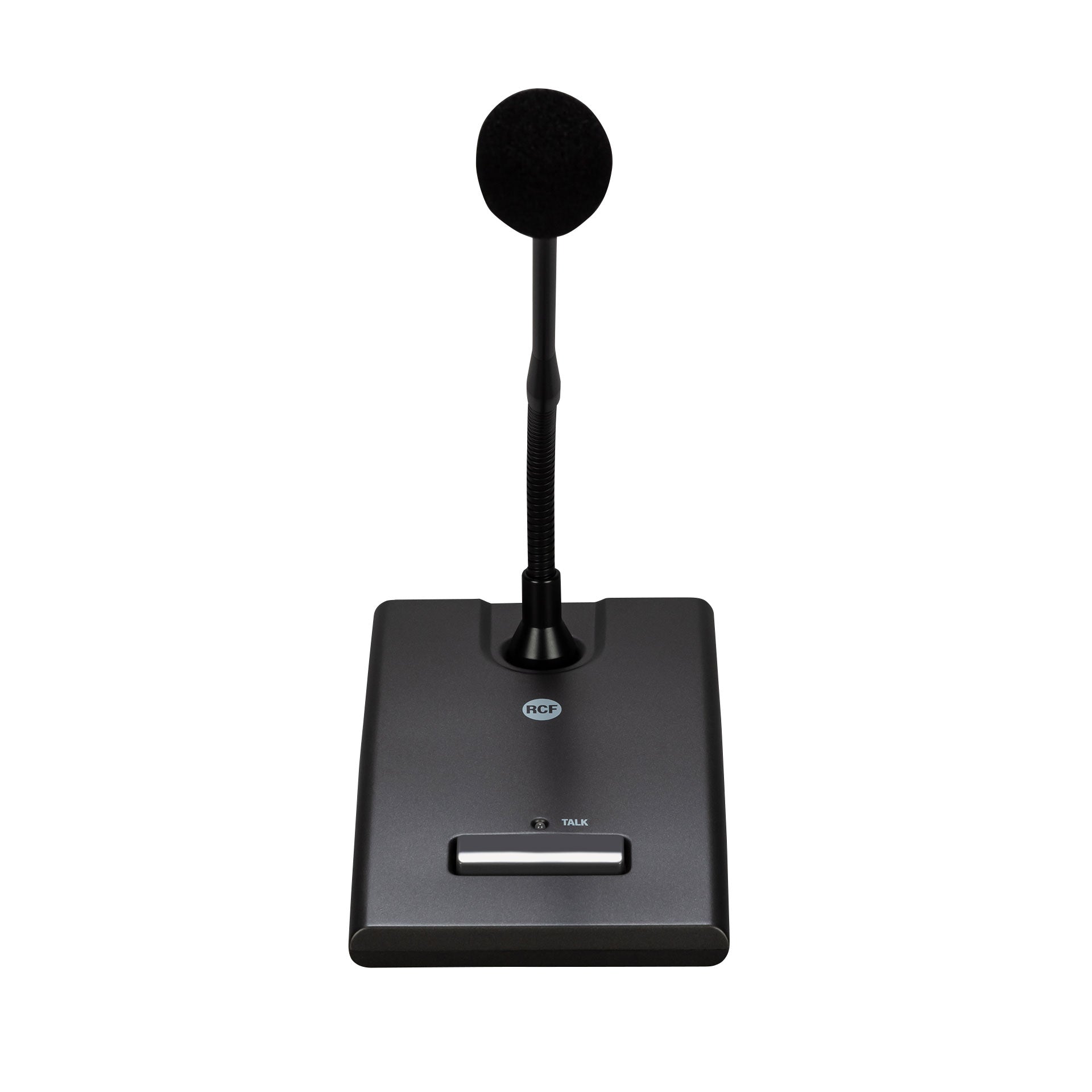

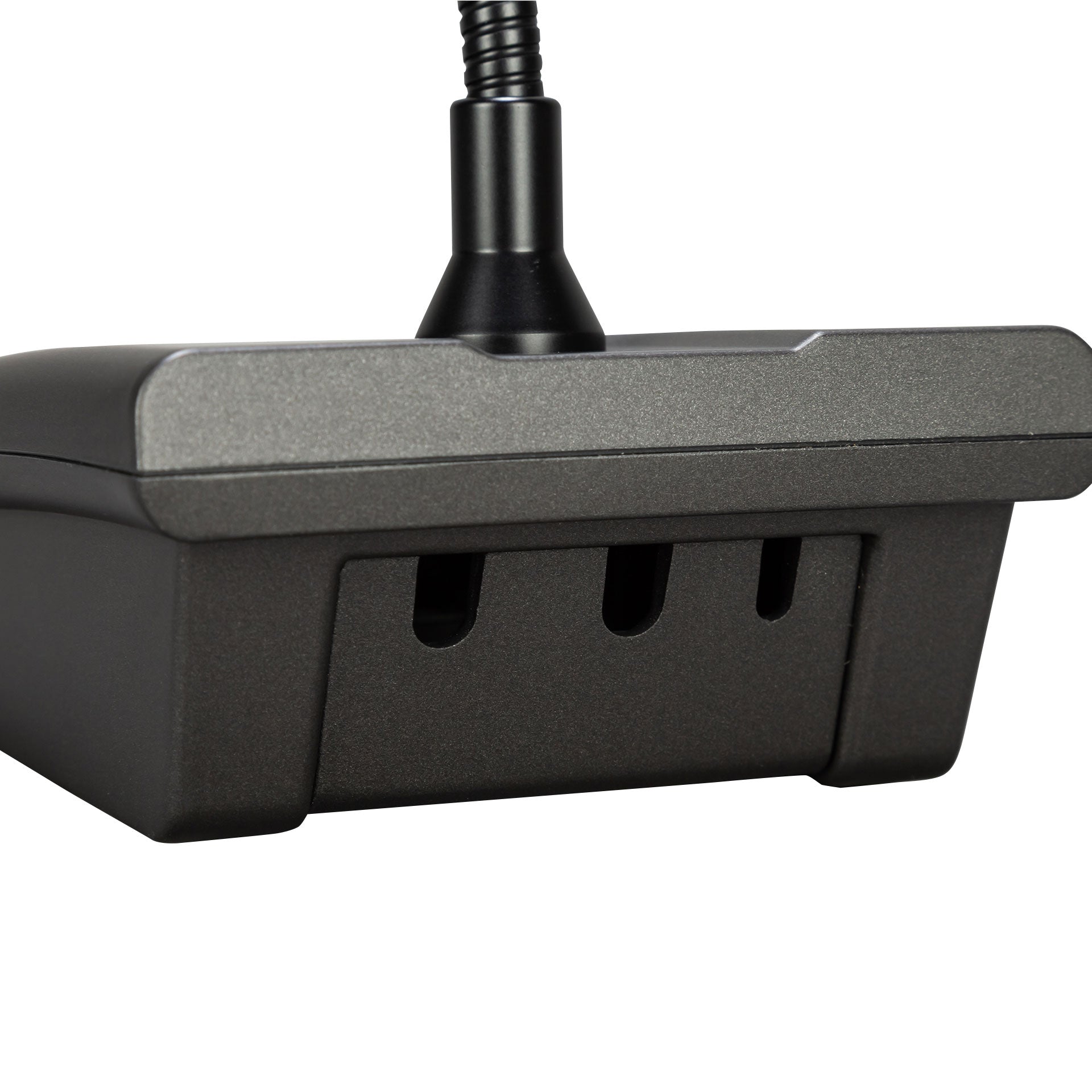

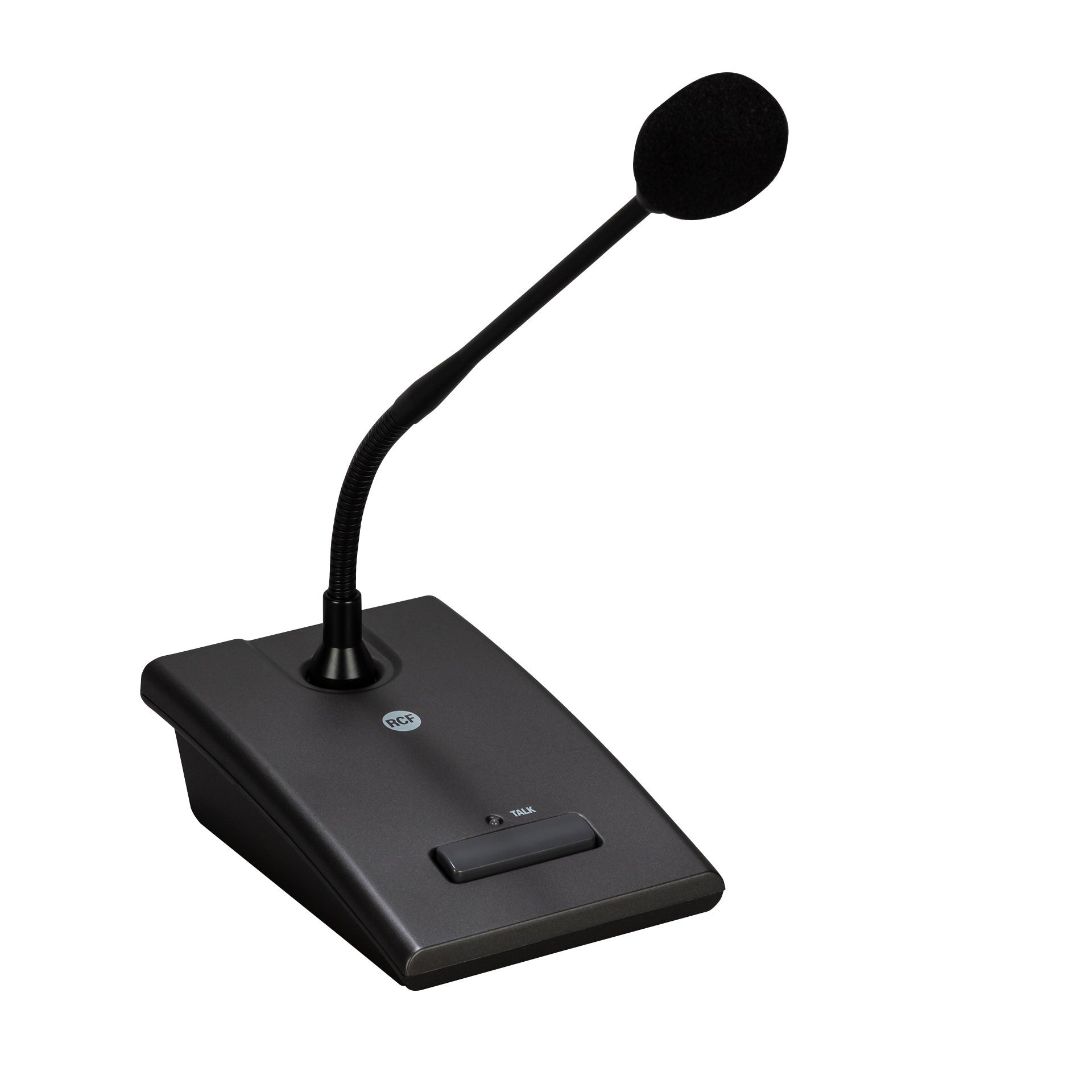

Gooseneck microphone with hi-quality unidirectional electret capsule Direct connection to power amplifiers input through CAT5 cable Adjustable line output with RJ45 connector Switchable automatic gain control (AGC) Up to 30 BM 3022 paging microphones can be linked in a ‘daisy-chain’ Selectable mixing, interlocking or priority mode among devices When activating a microphone, the announcement can be preceded by a chime.

FEATURES

• Up to 30 BM 3022 paging microphones can be linked in a ‘daisy-chain’

Specifications

MICROPHONE SPECIFICATIONS

• Type: Desktop paging microphone with electret capsule
• Directivity: Cardioid
• Sensitivity: -65 dB
• Frequency Response (-3dB): 200 Hz - 7 kHz
• Output impedance (ohm): 130.00 ohm
• Minimum load impedance (ohm): 470.00 ohm
• Signal / Noise ratio @1kHz: 82.00 dB
• Total harmonic distortion @1 kHz: 0.65 %

CONSOLE SPECIFICATIONS

• Console Type: Paging
• Working with: DXT 3000
• General call: Yes
• Preamplified: Yes
• LED indicators: Yes

POWER REQUIREMENT

• Operating voltage: 24.00V ~ Hz
• Power consumption: 2.80 mA

CONNECTIONS

• Connectors: RJ45

FUNCTIONALITIES

• Priority: Yes
• VOX facility: Yes
• Chime tone generator: Yes
• Smart PTT: Yes
• Automatic gain control: Yes

ACCESSORIES

• Cable included: Yes
• Cable length (m): 5

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Plastic
• Color: Grey

SIZE / WEIGHT

• Height: 48 mm / 1.89 inches
• Width: 100 mm / 3.94 inches
• Depth: 159 mm / 6.26 inches
• Weight: 0.74 kg / 1.63 lbs

SHIPPING INFORMATION

• Package Height: 144 mm / 5.67 inches
• Package Width: 329 mm / 12.95 inches
• Package Depth: 129 mm / 5.08 inches
• Package Weight: 1.18 kg / 2.6 lbs
