Description
Bidirectional Sound Projector, 2x5" Transducers, Power Selectable (100V): 12W-6W-3W-1.5W, IP55, EN54-24

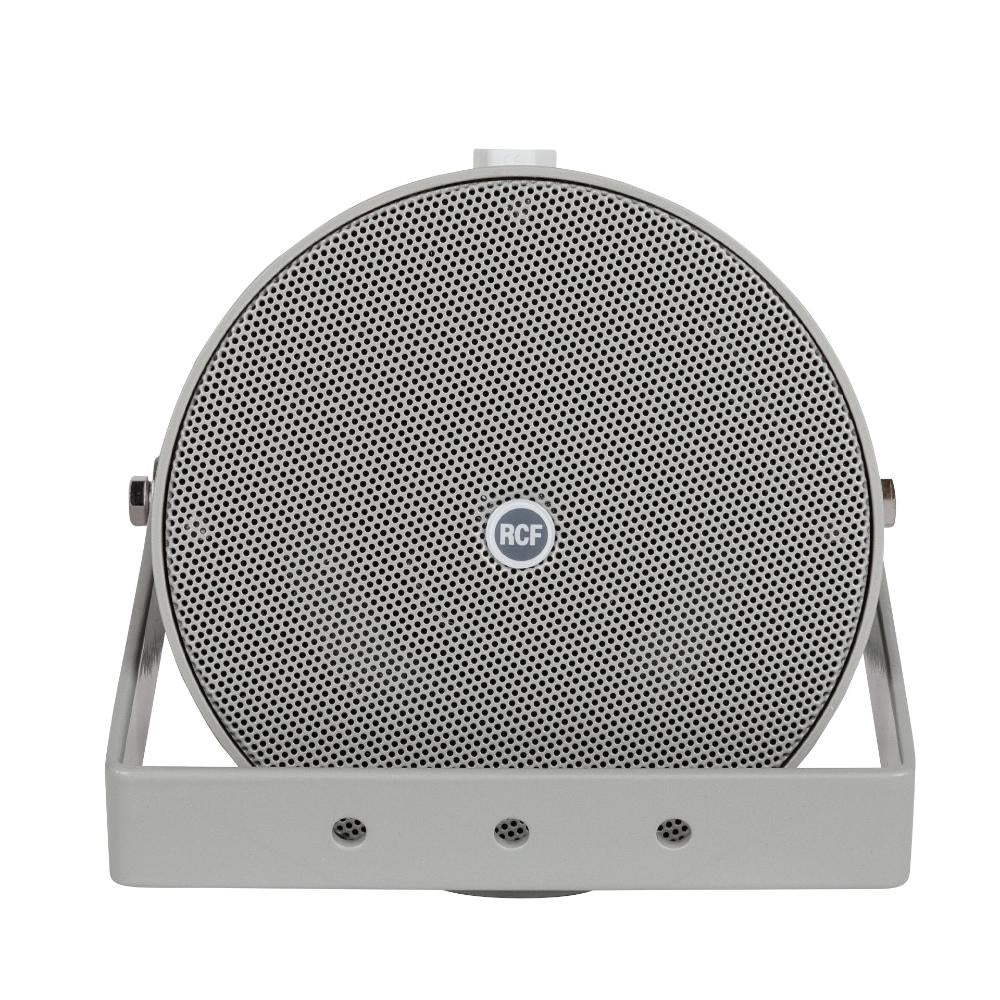

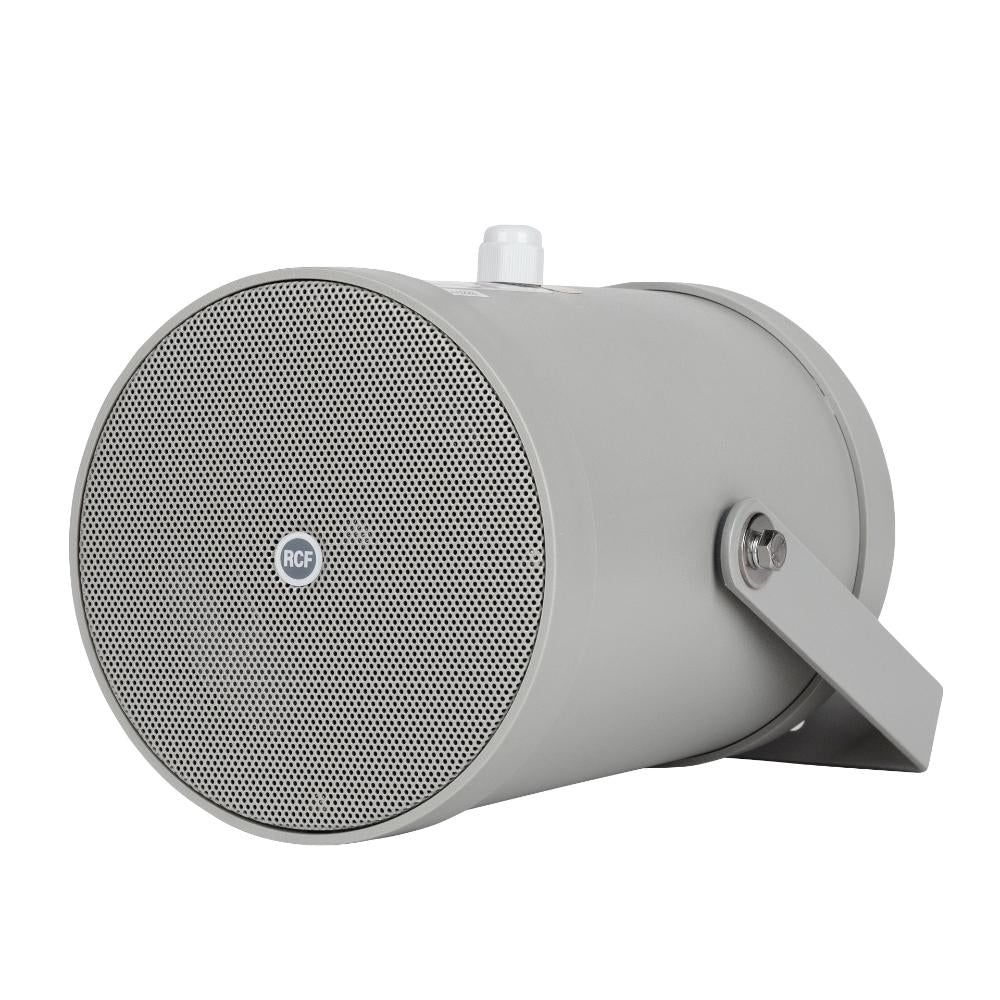

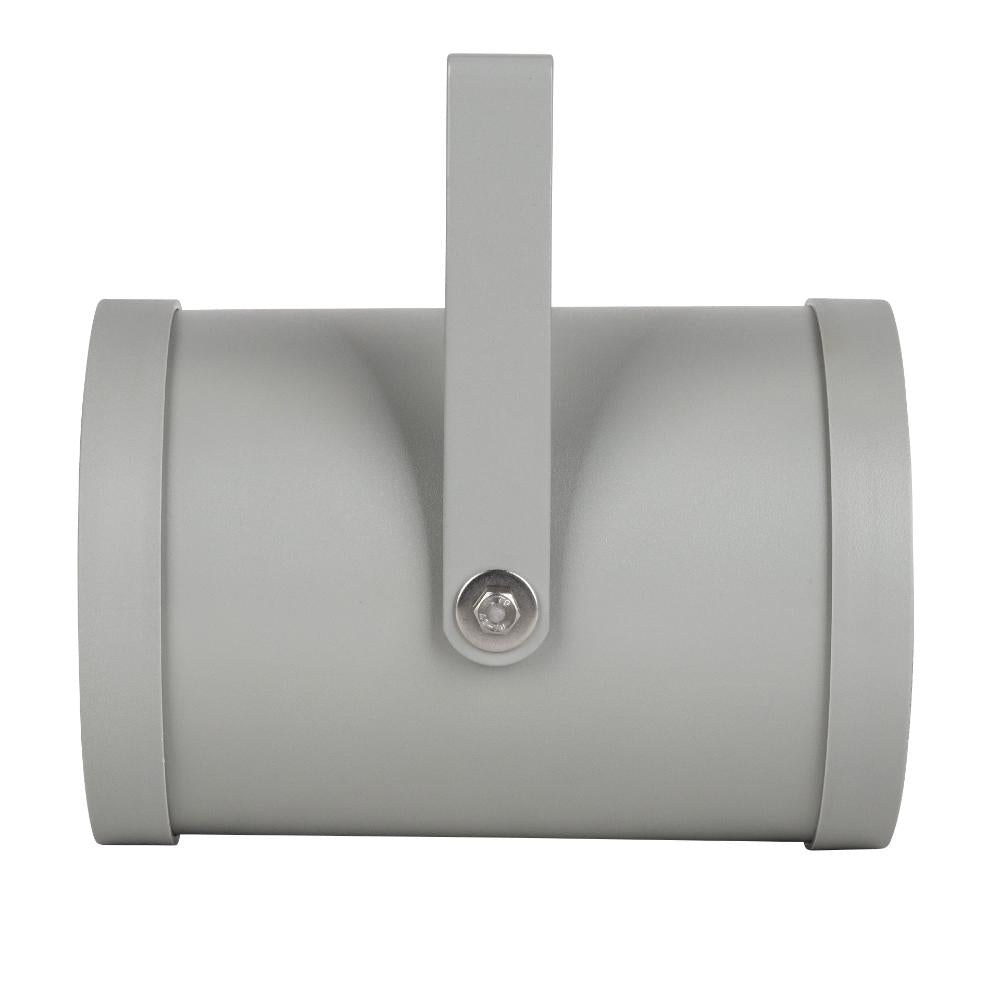

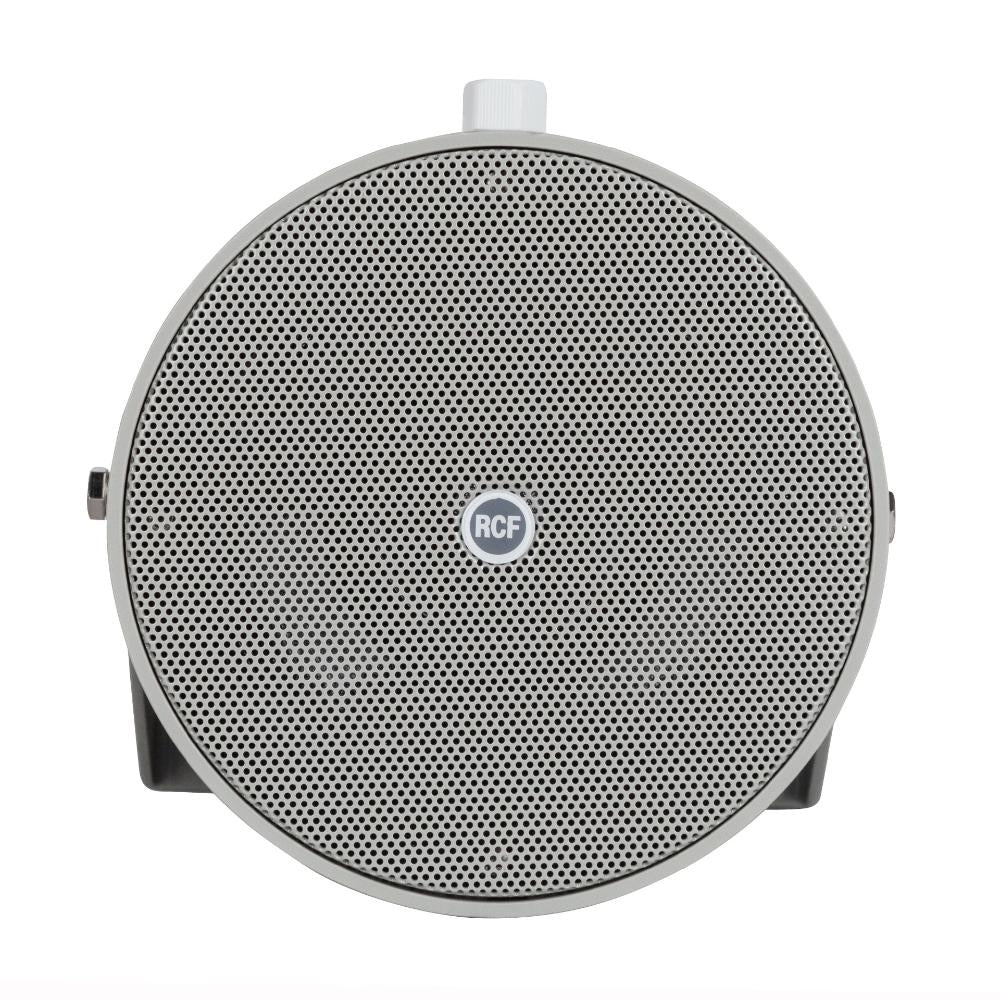

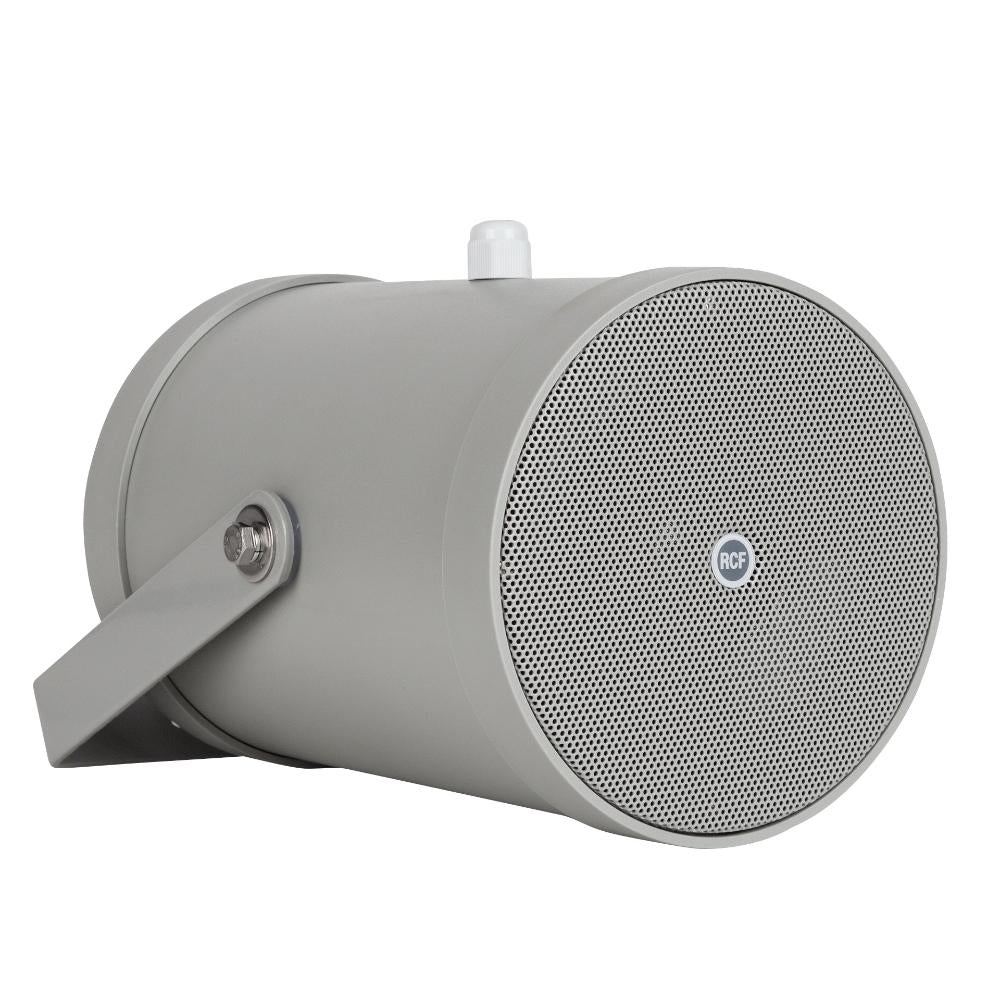

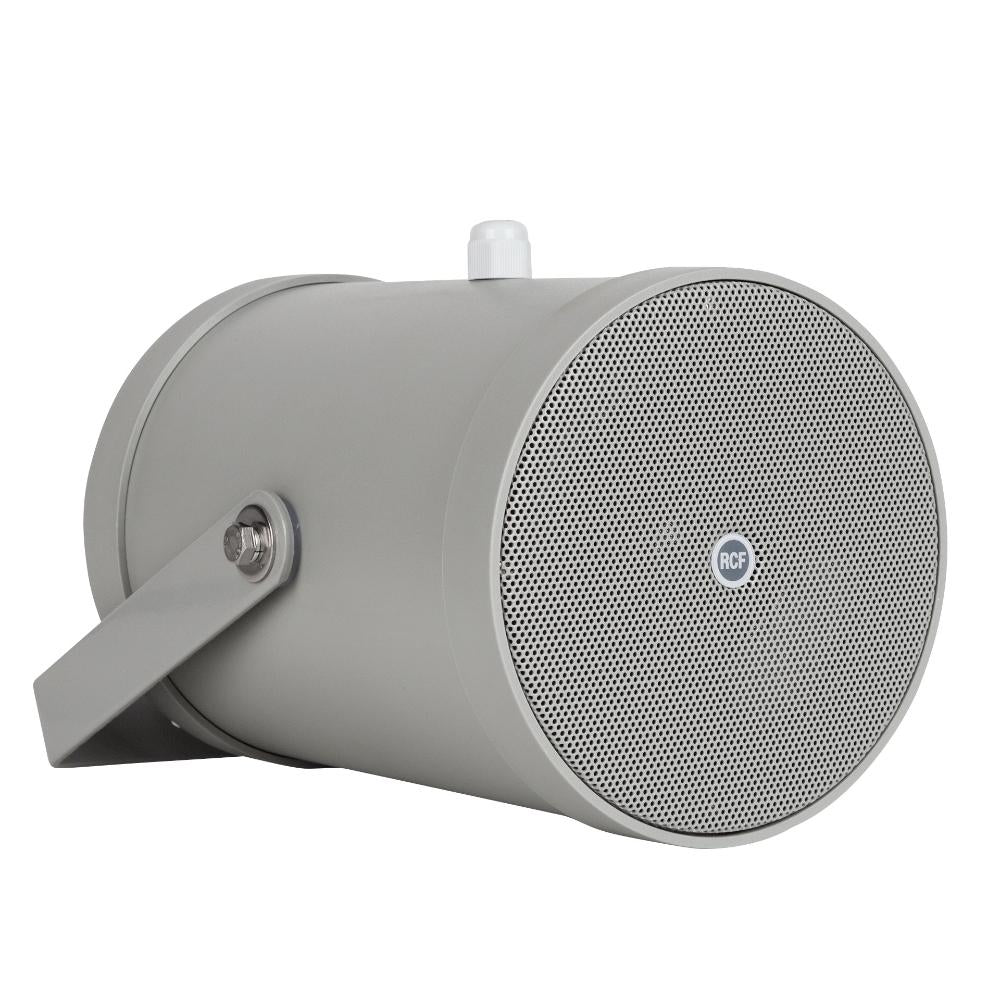

BD 42EN is a bidirectional sound projector featuring an elegant aesthetic and easy orientation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a cylindrical plastic body with aluminium grilles and U-bracket support. Thanks to its IP55 protection grade, it can be installed both indoor and outdoor.
FEATURES
- 2x5" fullrange transducers.
- Power selectable (100 V): 12 W – 6 W – 3 W – 1,5 W.
- 91 dB sensitivity.
- Colour grey RAL 7035.
- Flameproof ABS body, aluminium grilles and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP55.
Specifications
ACOUSTICAL
-
Frequency Response (-10dB): 130 Hz - 15000 Hz
-
Max SPL @ 1m: 102 dB
-
Max SPL @ 4m: 90 dB
-
System Sensitivity: 90 dB
-
System Sensitivity 1W @ 4m: 78 dB
POWER SECTION
-
Amplification: Full Range
-
Power Handling: 12 W
-
Peak Power Handling: 48 W PEAK
-
Protections: Thermal fuse
-
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
TRANSDUCERS
INPUT/OUTPUT SECTION
-
Input connectors: Ceramic screw terminals
-
Output connectors: Ceramic screw terminals
-
Constant Voltage Transformer: 100 V
-
Power selection 1: 12 W - 833 ohm
-
Power selection 2: 6 W - 1667 ohm
-
Power selection 3: 3 W - 3333 ohm
-
Power selection 4: 1.5 W - 6667 ohm
STANDARD COMPLIANCE
-
IP protection grade: IP 55
-
Safety agency: CE compliant
-
EN54-24 certified: Yes
-
CPR number: 0068-CPR-234/2025
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: ABS
-
Hardware: Aluminum U bracket
-
Grille: Aluminium
-
Color: Grey - RAL 7035
SIZE / WEIGHT
-
Width: 200 mm / 7.87 inches
-
Diameter: 138 mm / 5.43 inches
-
Weight: 1.66 kg / 3.66 lbs
SHIPPING INFORMATION
-
Package Height: 290 mm / 11.42 inches
-
Package Width: 160 mm / 6.3 inches
-
Package Depth: 190 mm / 7.48 inches
-
Package Weight: 1.95 kg / 4.3 lbs
