Description

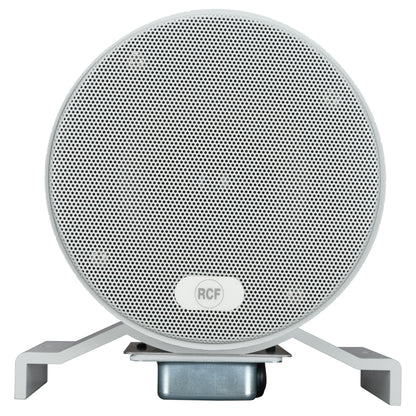

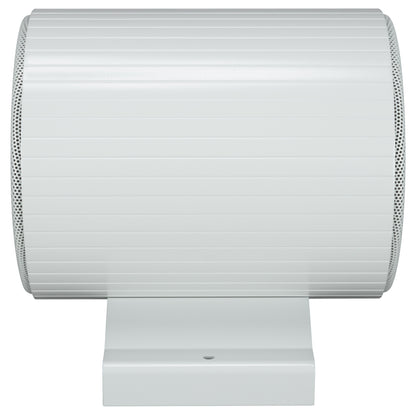

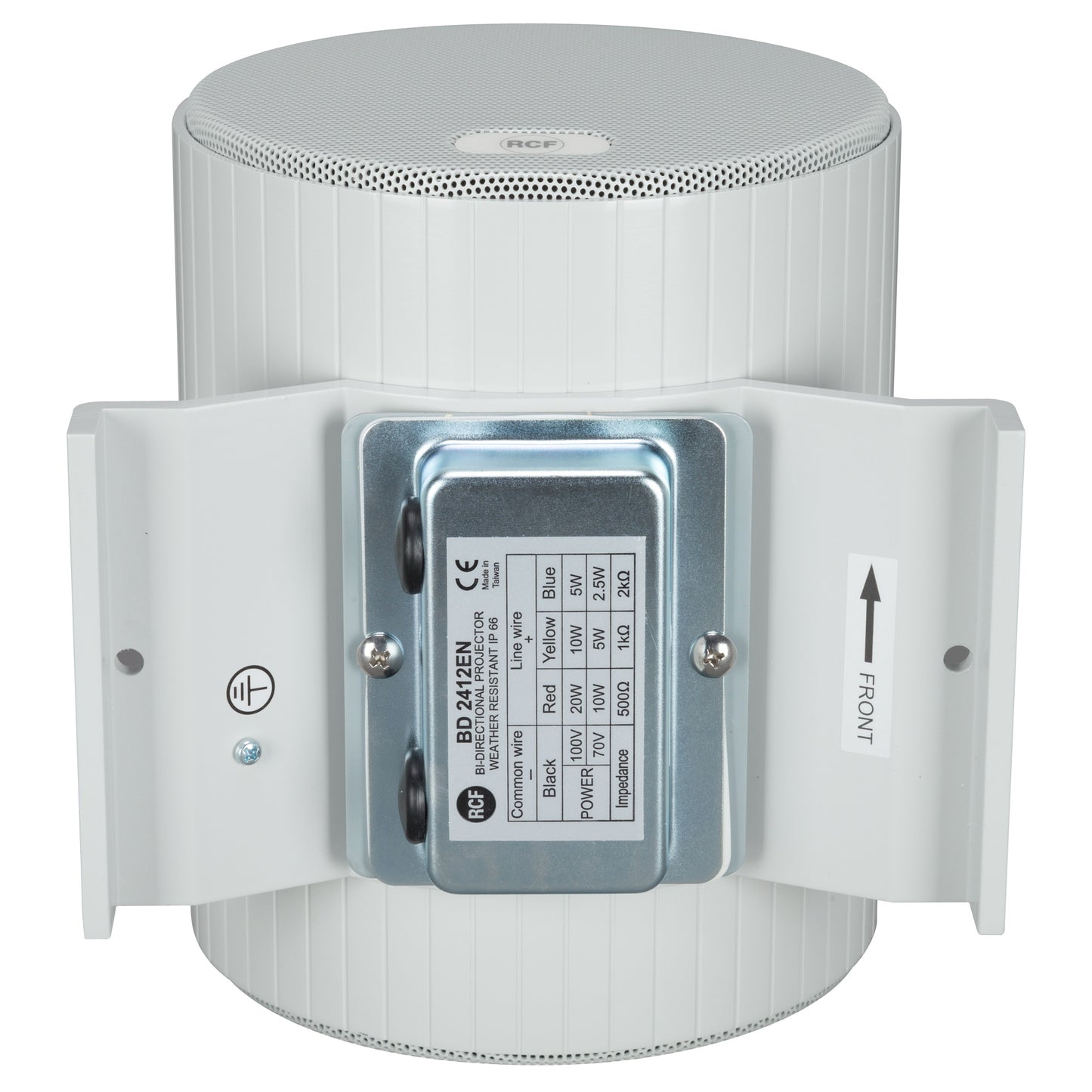

Bidirectional Sound Projector, Alu., Ip 55, 12W, 70-100V - EN54-24

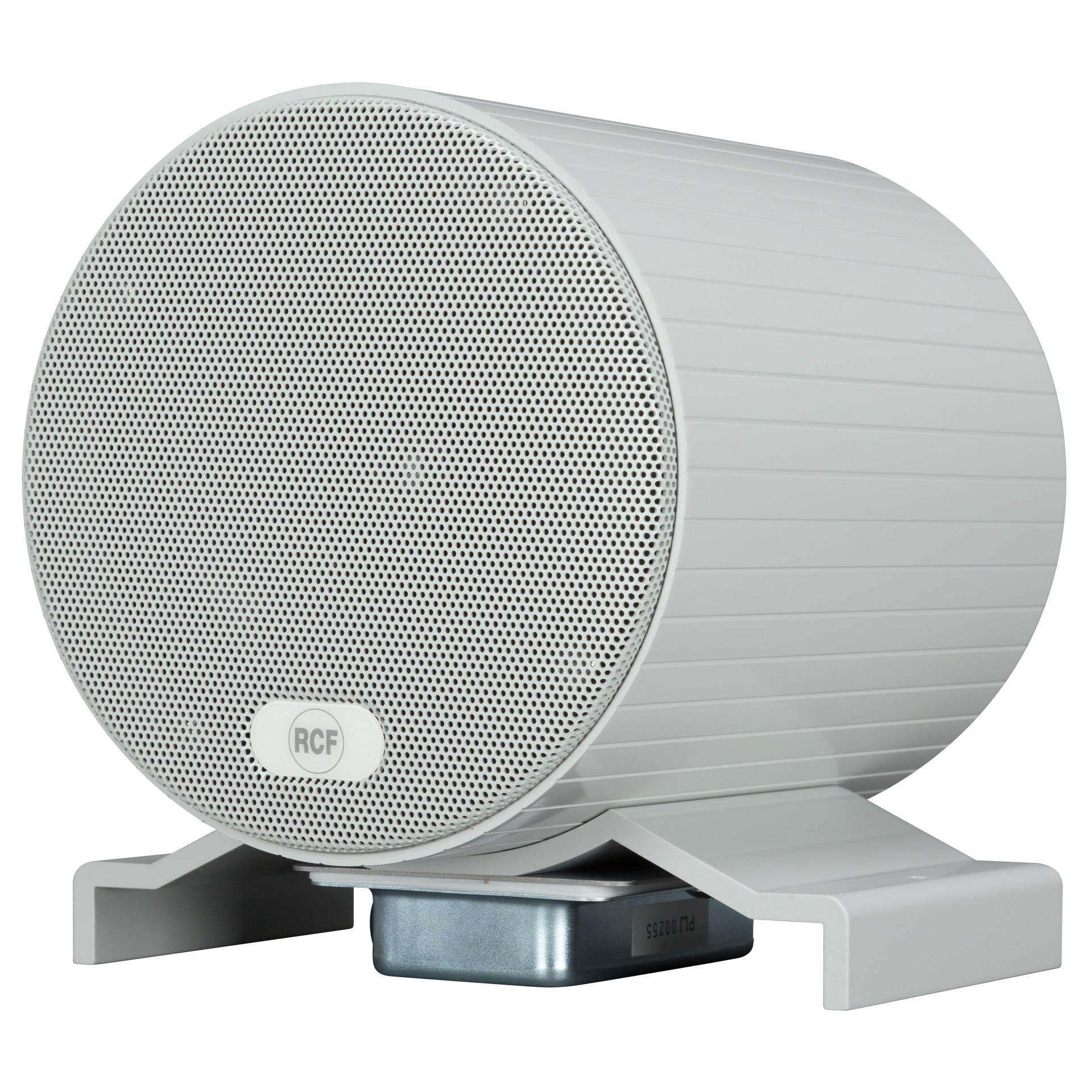

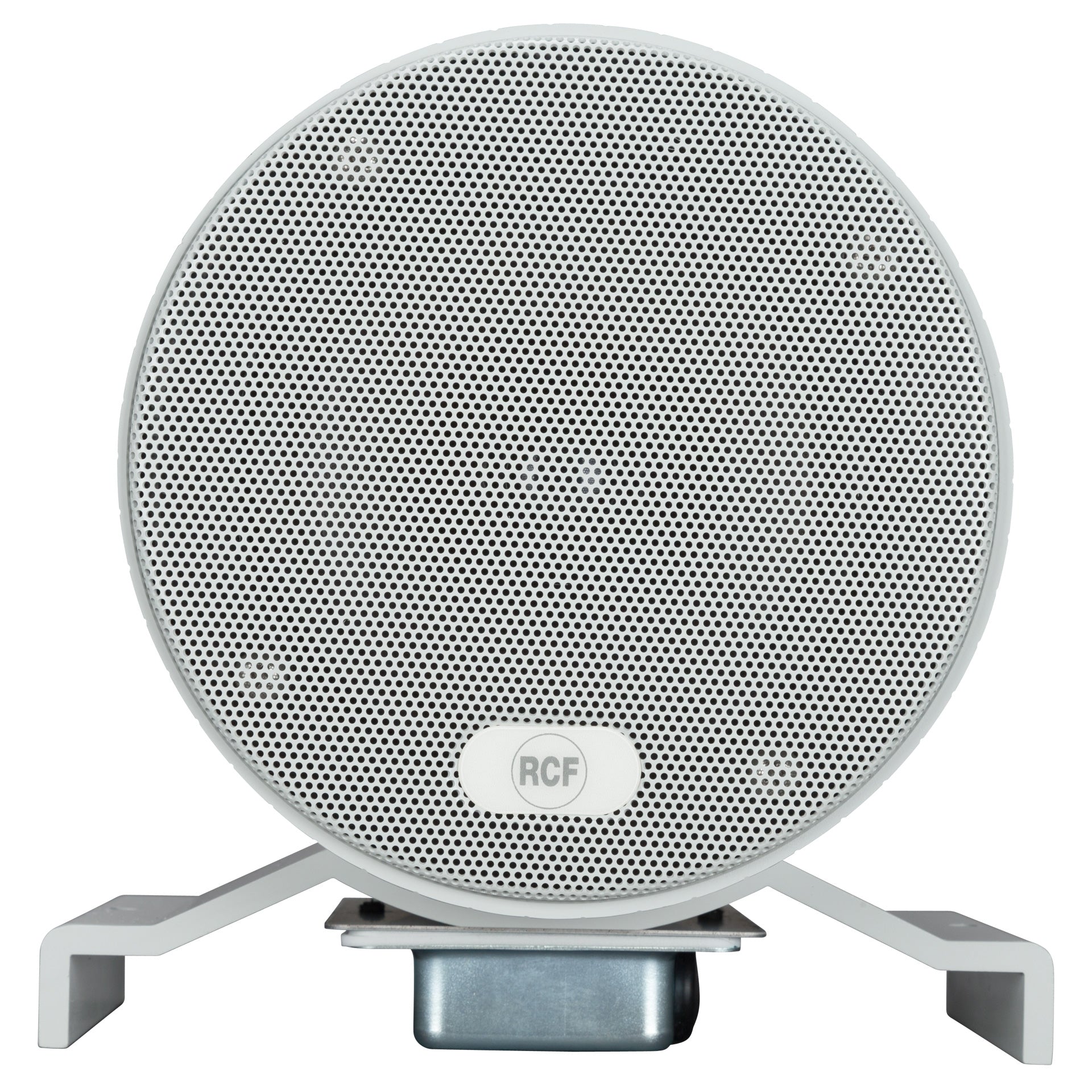

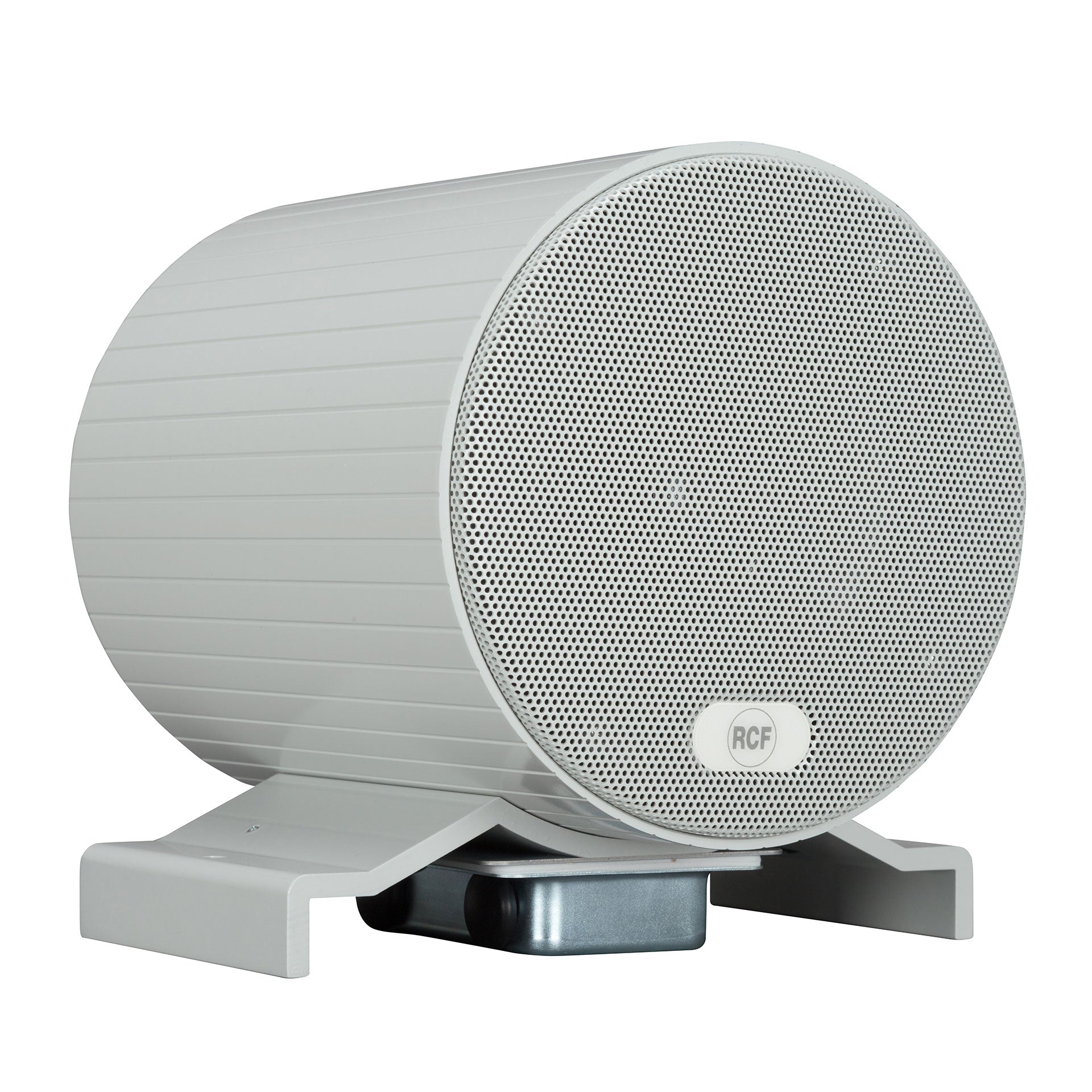

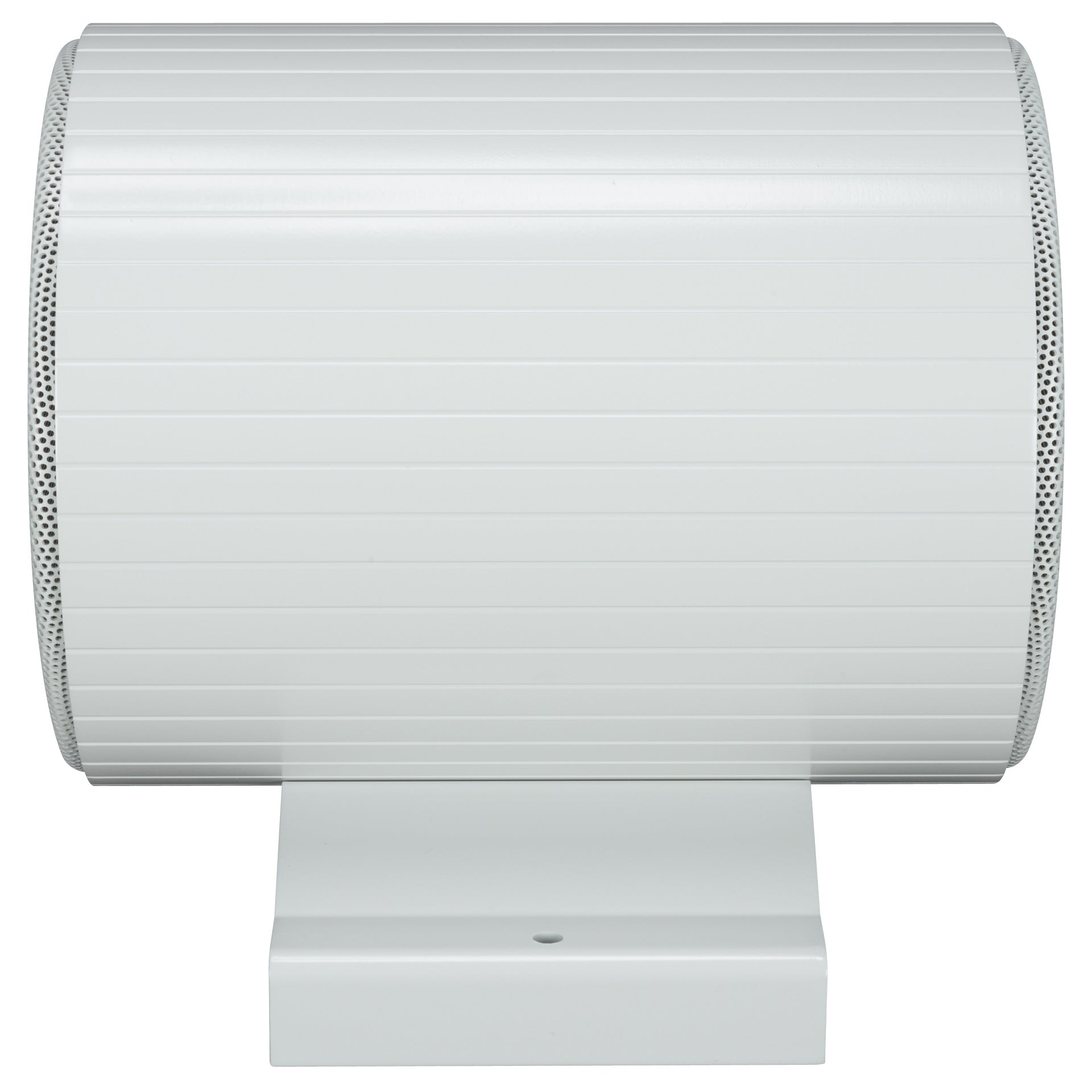

BD 2412EN is a bidirectional sound projector featuring an elegant aesthetic and easy installation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a aluminium cylindrical body, grille and bracket. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
FEATURES
- 2 x 5" fullrange transducers.
- Power selectable (100 V): 20 W – 10 W – 5 W.
- 88 dB sensitivity.
- Colour grey RAL 7035.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 130 Hz - 20000 Hz
-
Max SPL @ 1m: 101 dB
-
Max SPL @ 4m: 89 dB
-
Coverage angle: 130°
-
System Sensitivity: 88 dB
-
System Sensitivity 1W @ 4m: 76 dB
POWER SECTION
-
Power Handling: 20 W
-
Peak Power Handling: 80 W PEAK
-
Protections: Thermal fuse
-
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
TRANSDUCERS
INPUT/OUTPUT SECTION
-

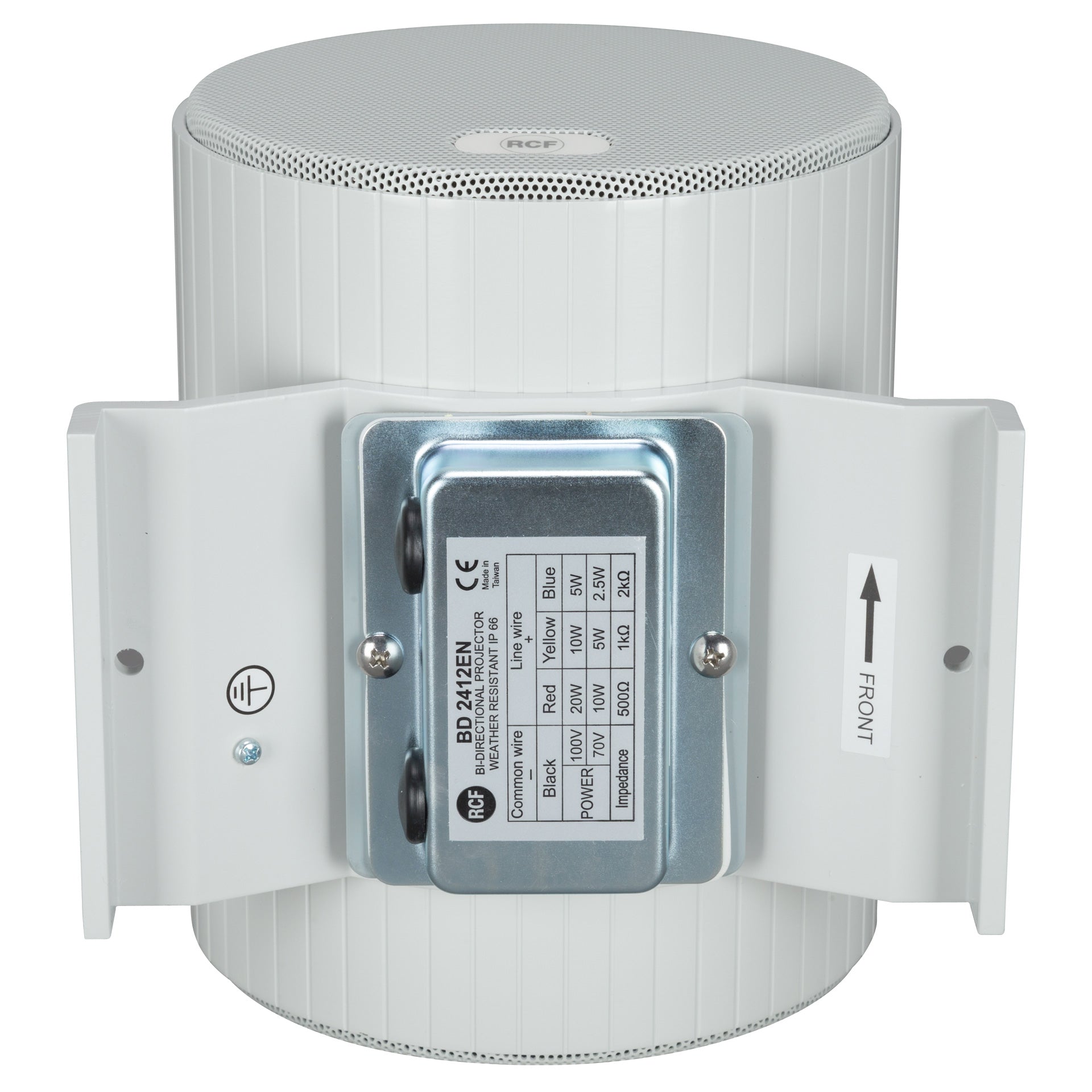

Input connectors: Ceramic screw terminals
-
Output connectors: Ceramic screw terminals
-

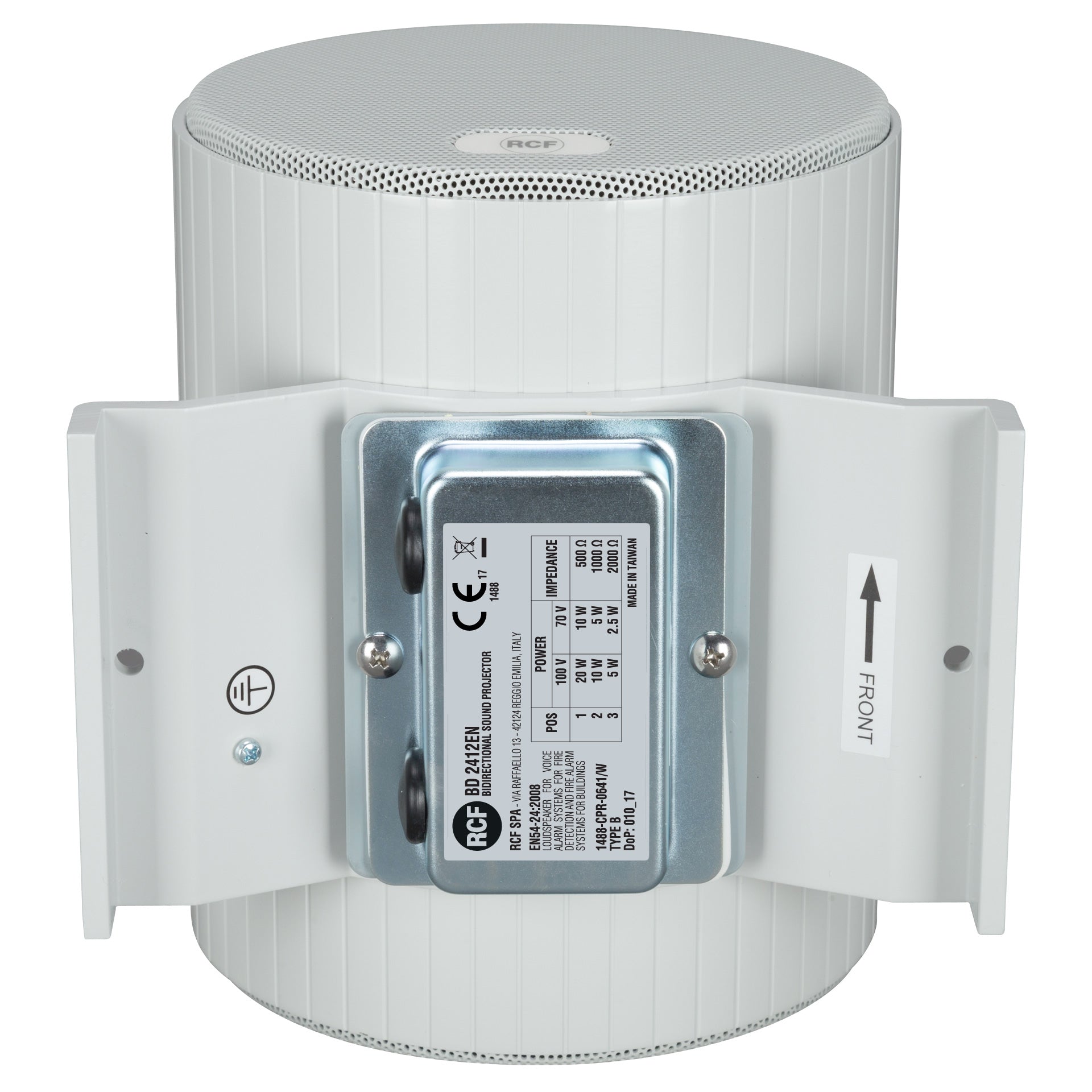

Constant Voltage Transformer: 100 V
-
Power selection 1: 20 W - 500 ohm
-
Power selection 2: 10 W - 1000 ohm
-
Power selection 3: 5 W - 2000 ohm
STANDARD COMPLIANCE
-
IP protection grade: IP 66
-
Safety agency: CE compliant
-
EN54-24 certified: Yes
-
CPR number: 1488-CPR-0641/W
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Aluminum
-
Hardware: Aluminium bracket
-
Grille: Aluminium
-
Color: Grey - RAL 7035
SIZE / WEIGHT
-
Depth: 184 mm / 7.24 inches
-
Diameter: 146 mm / 5.75 inches
-
Weight: 3.25 kg / 7.17 lbs
SHIPPING INFORMATION
-
Package Height: 185 mm / 7.28 inches
-
Package Width: 240 mm / 9.45 inches
-
Package Depth: 185 mm / 7.28 inches
-
Package Weight: 3.25 kg / 7.17 lbs
