Description

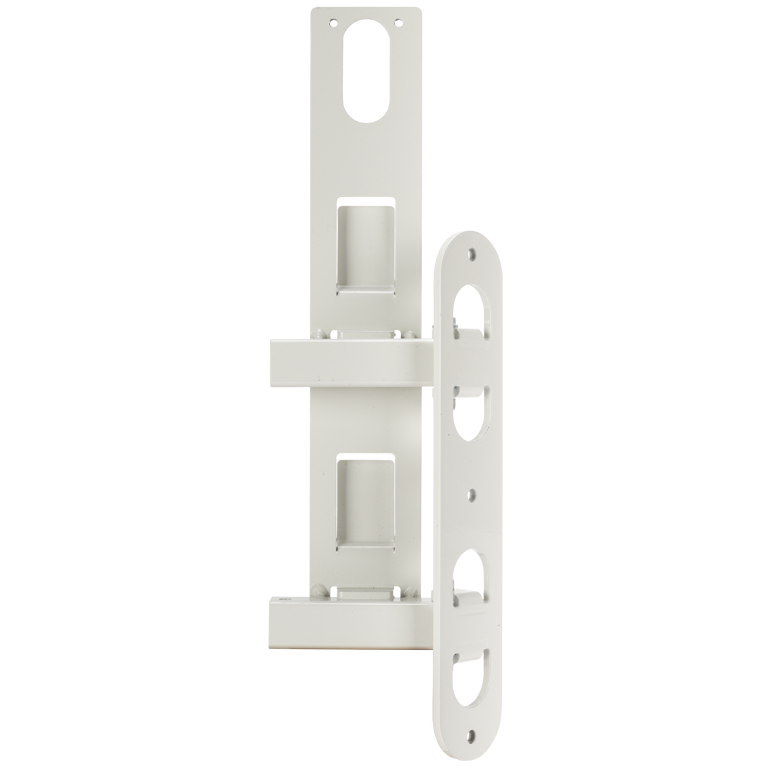

Swivel Wall Mount for VSA (For All VSA Models) (Pair) (White) (SWM-BR VSA II)
Each kit includes a pair of swivel brackets for wall mounting of a single RCF VSA 2050 II \ VSA 1250 II \ VSA 850 II Digitally steerable array loudspeaker system, with a horizontal angle pointing up to 60°.
Features
Two mounting points for the VSA loudspeaker rear side.Three holes for wall mounting through M5 wall plugs.Two bolts and nuts (used as pins) can be tightened to fix the VSA loudspeaker when the horizontal angle pointing is correct.Two holes to secure the VSA loudspeaker to the swivel bracket through two screws (M5x10).Specifications
| General specifications |
|---|
| Mounting points |
2 |
| Orientation |
Horizontal |
| Maximum angle |
60° |
| Standard compliance |
|---|
| Safety agency |
CE compliant |
| Physical specifications |
|---|
| Color |
White - RAL 9003, Black - RAL 9005 |
| Size / Weight |
|---|
| Width |
318 mm / 12.52 inches |
| Weight |
1.5 kg / 3.31 lbs |
| Shipping information |
|---|
| Package Height |
74 mm / 2.91 inches |
| Package Width |
314 mm / 12.36 inches |
| Package Depth |
154 mm / 6.06 inches |
| Package Weight |
1.7 kg / 3.75 lbs |
