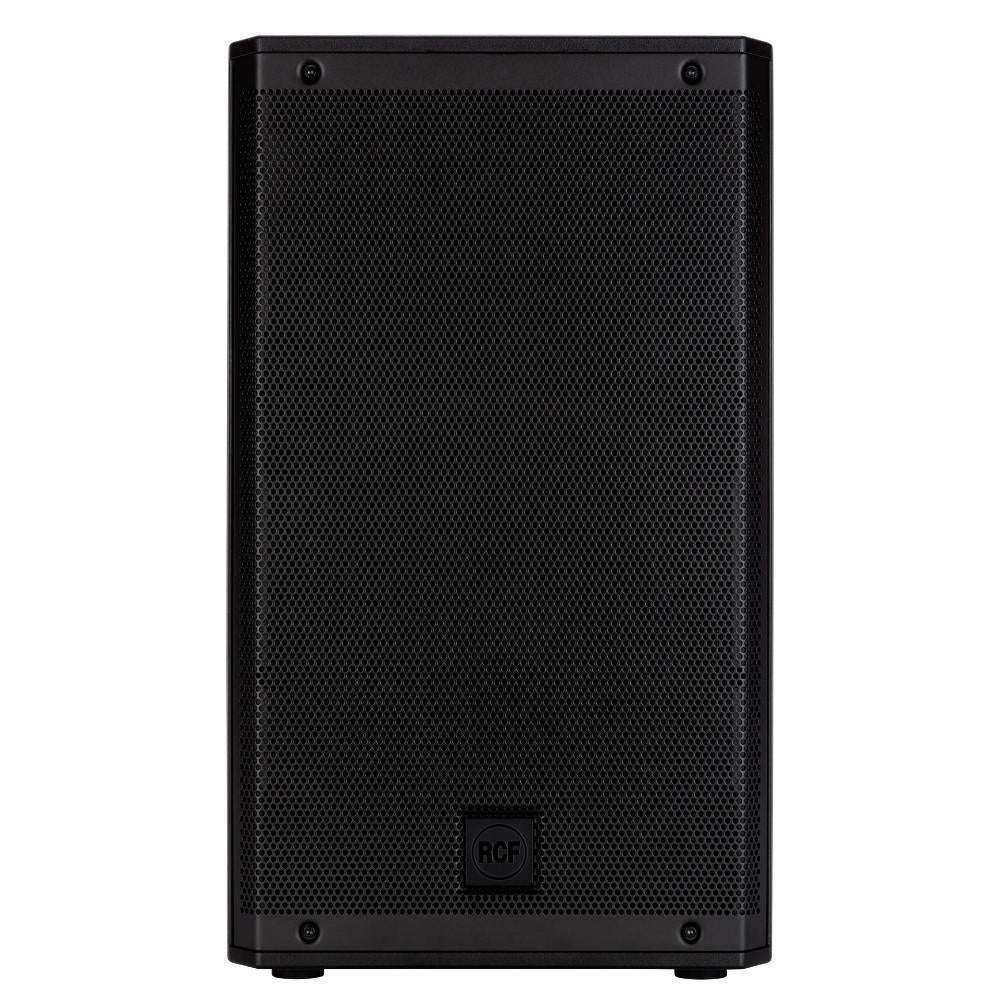

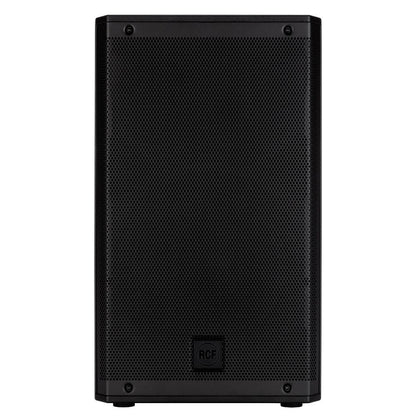

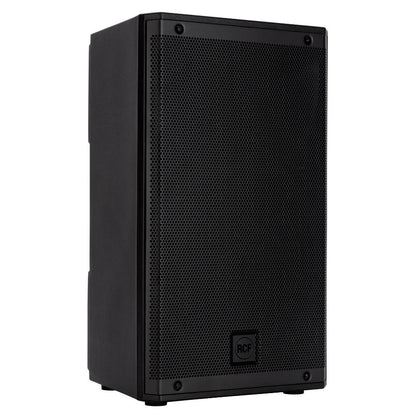

RCF ART-910A-AX Active 2100W 2-Way 10" Speaker with Digital Mixer & Bluetooth
RCF ART-910A-AX Active 2100W 2-Way 10" Speaker with Digital Mixer & Bluetooth
SKU: ART-910A-AX
Regular price
$1,399.00
Sale price
$1,399.00
Shipping calculated at checkout.
Available options
Description
Active 2100W 2-Way 10" Speaker with Digital Mixer & Bluetooth

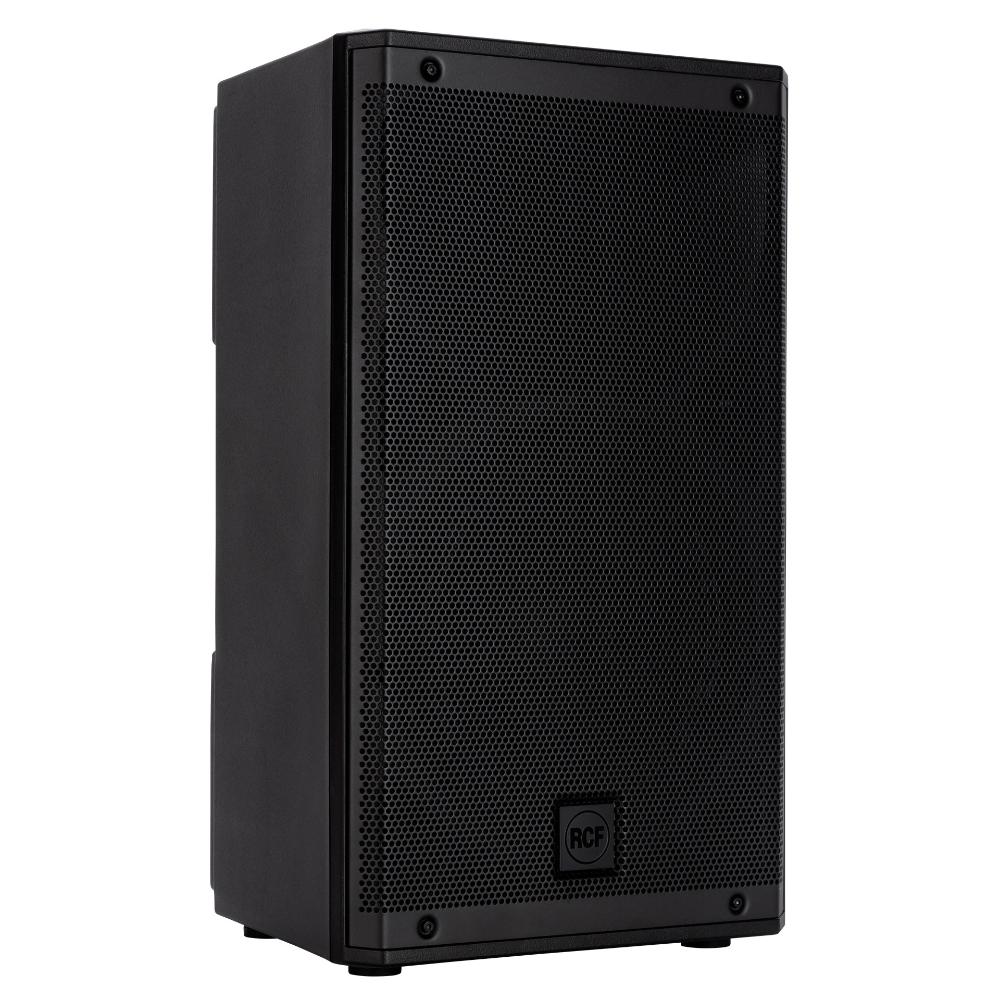

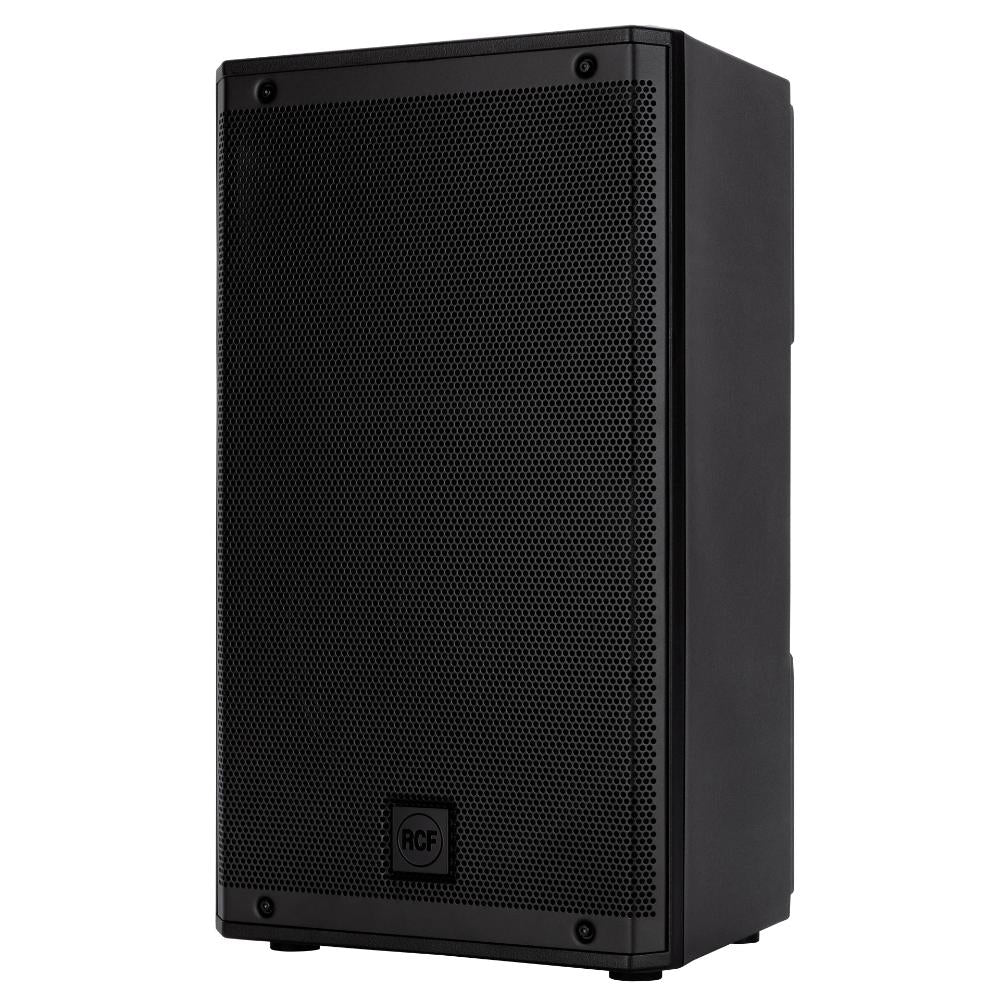

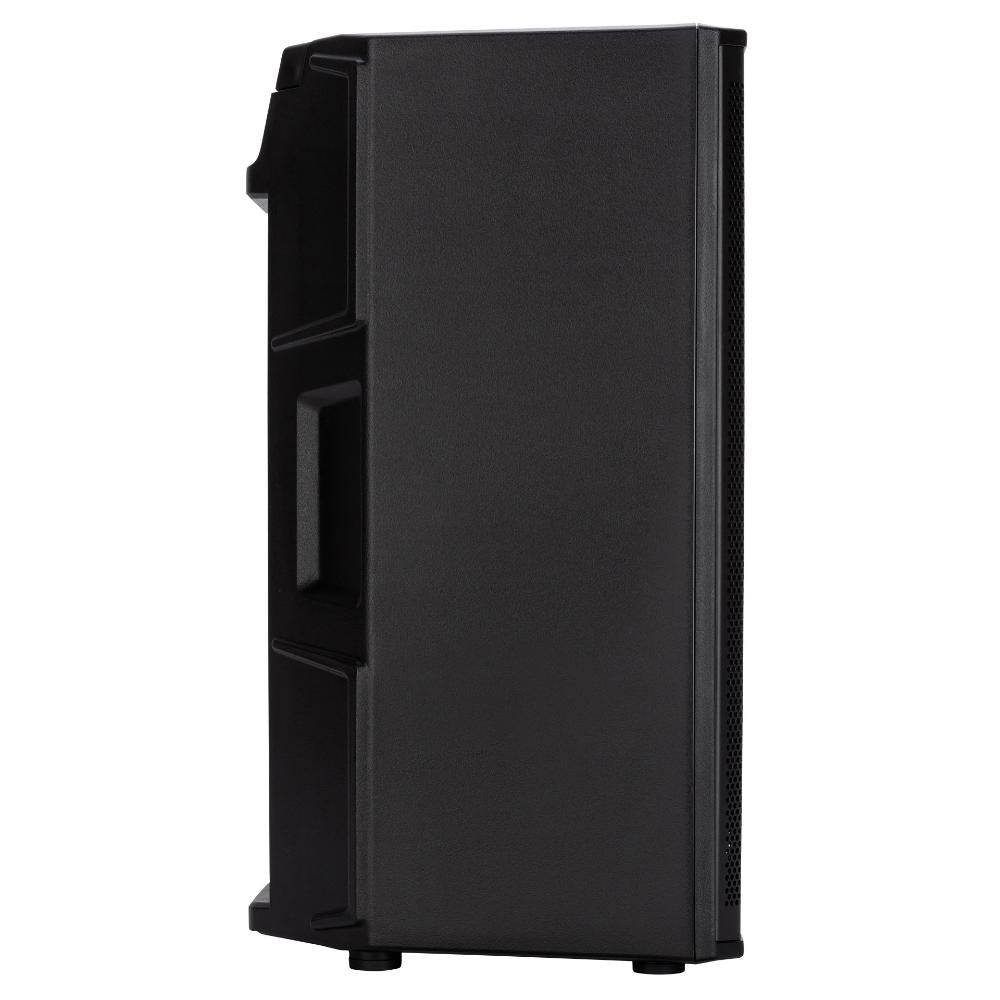

ART 910-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 10" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 130 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
Features
Specifications
| Acoustical specifications | |
|---|---|
| Frequency Response | 50 Hz - 20000 Hz |
| Max SPL @ 1m | 130 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 60° |

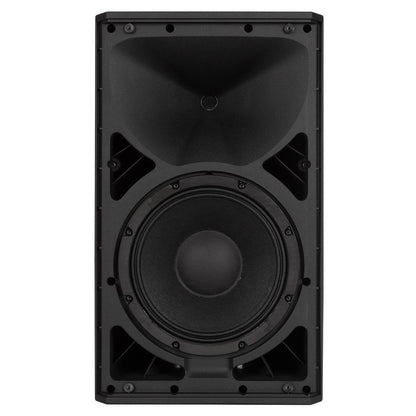

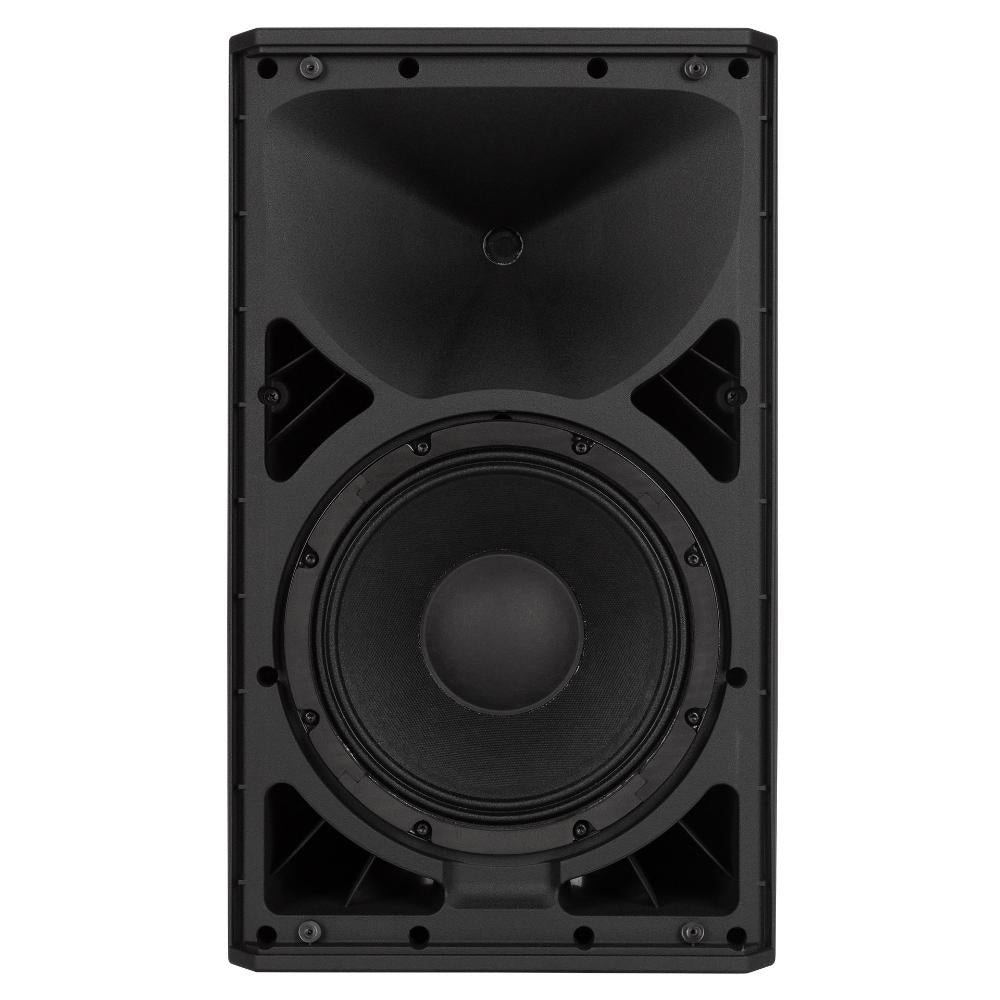

| Transducers | |
| Compression Driver | 1 x 1.0'', 1.75'' v.c |
| Woofer | 1 x 10'', 2.5'' v.c |

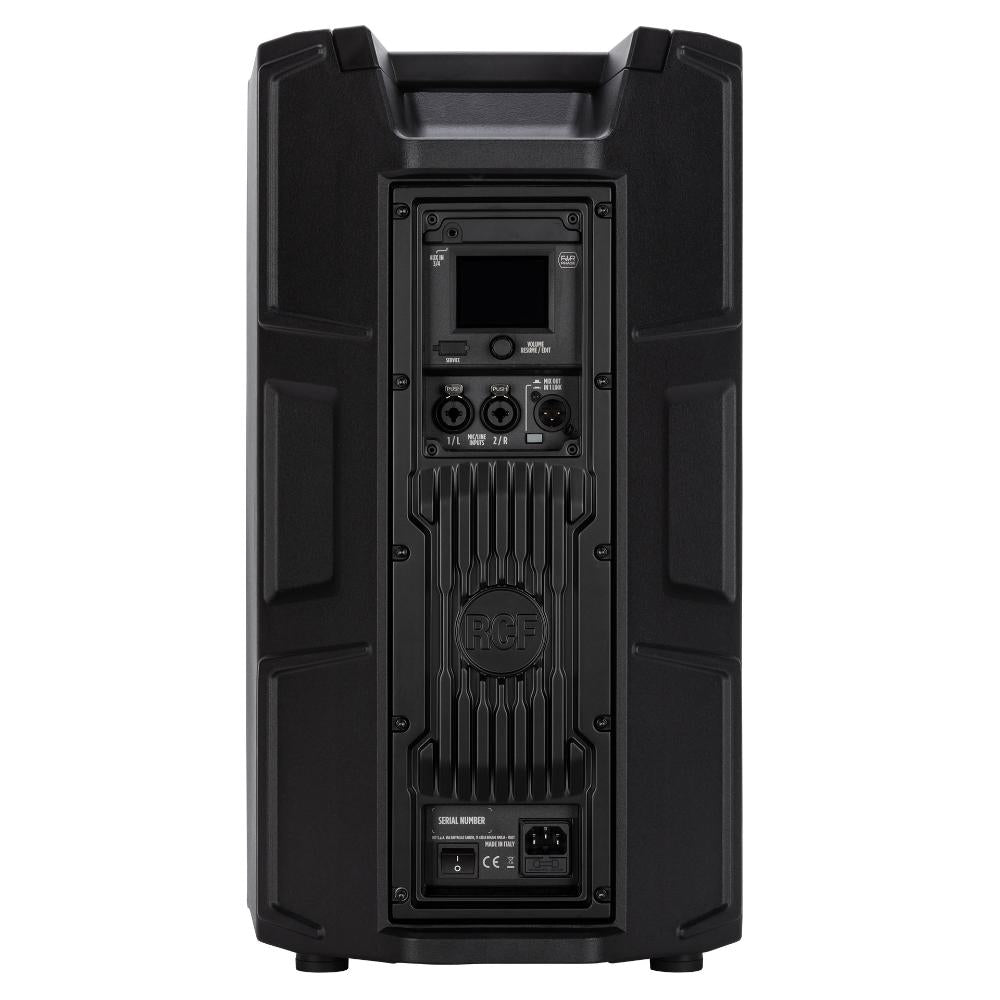

| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Processor section | |
| Crossover Frequencies | 1800Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Color touch panel, data entry/volume encoder, dedicated App for iOS and Android. |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | VDE |
| Electronic specifications | |
| Frequency Response | 20 Hz - 20 Hz |
| THD+N, 20dB gain, 0dBu out | 0.005% A-Weighted |
| Processing | |
| Processing Channels | 6 |
| Signal Processing | 24 Bit |
| A/D-D/A conversion | 32 Bit @ 48.0 kHz |
| Dynamic range | 110 |
| Inputs | |
| Mic | 2 |
| Remote Controlled Storable Gain | Yes |
| Gain Range | 0 dB - 42 dB |
| Input Noise Level | -114 dBu A-Weighted |
| Mic Inputs Impedance | 6 kohm |
| Low Cut | 20 Hz - 400 Hz |
| Phantom Power +48V | Yes |
| Mono Line | 2 |
| Gain Selection | 0 dB - 22 dB |
| Line Input Impedance | 21 kohm |
| A/D Dynamic range | 114 dB |
| Stereo Line | 1 |
| Gain Selection | 0 dB - 10 dB |
| Stereo Line Input Impedance (kOhm) | 13 kohm |
| Outputs | |
| Main MIX | 1 |
| Outputs specifications | |
| Main Out Impedance | 150 ohm |
| Main Out Level | 22 dBu |
| D/A Dynamic Range | 114 dB |
| Compressors | |
| RCF Compressors | Compressors on MIC/LINE CH1 & CH2 Inputs |
| EQ | |
| Input Channels EQ | 2 Shelving 1 |
| Description | 3 Band EQ: High and Low band shelving, MID band peak on IN 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output. |
| Internal Effects | |
| Send Effects | 1 |
| Mastering processors | |
| Main OUT type | MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT. |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Hardware | 1 x M10 Top and Bottom |

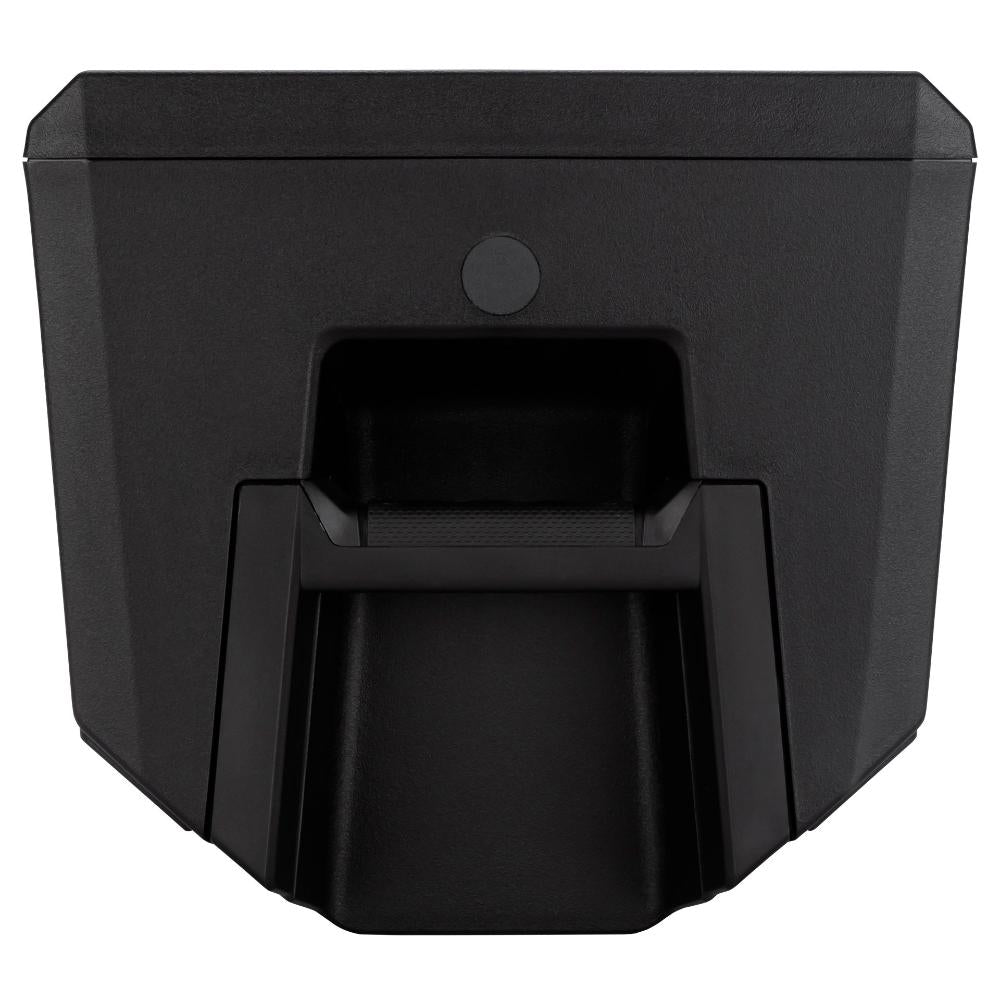

| Handles | 1 Top |

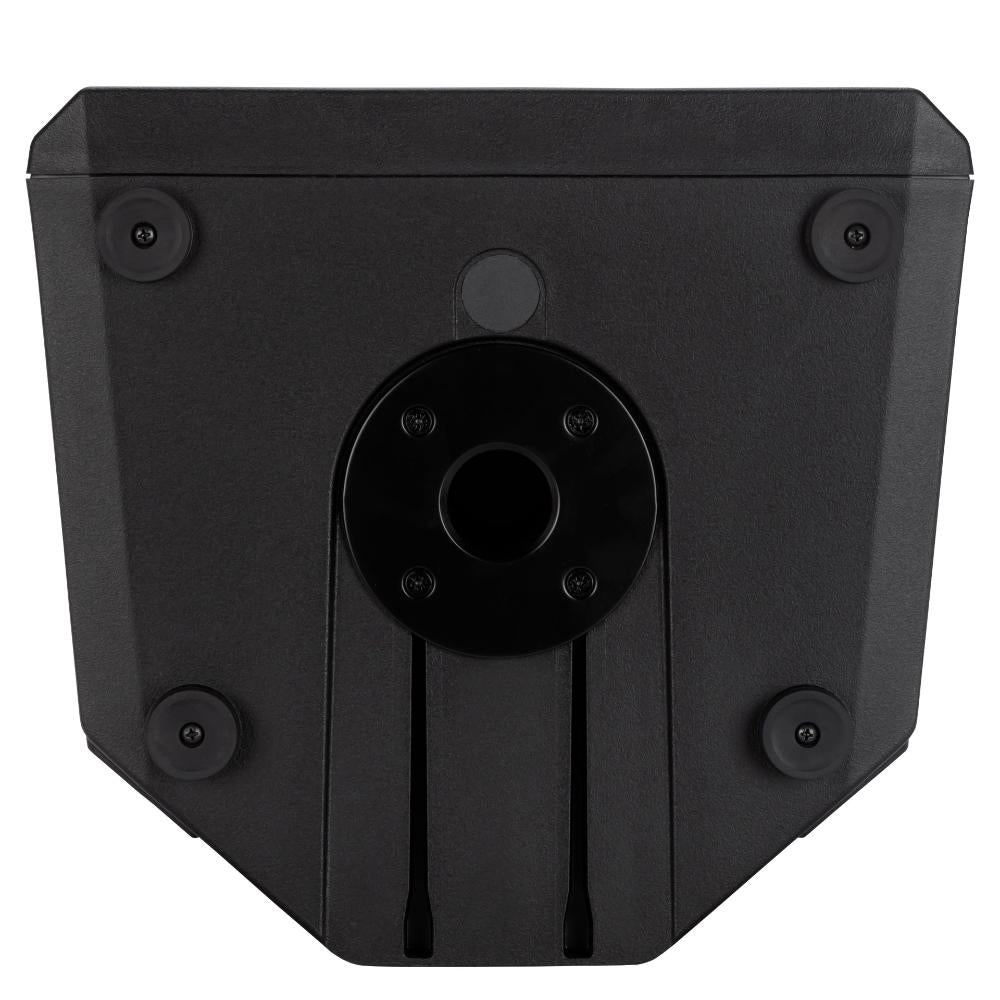

| Pole mount/Cap | 35 mm insert |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 572 mm / 22.52 inches |
| Width | 330 mm / 12.99 inches |
| Depth | 310 mm / 12.2 inches |
| Weight | 16.2 kg / 35.71 lbs |
| Shipping information | |
| Package Height | 615 mm / 24.21 inches |
| Package Width | 370 mm / 14.57 inches |
| Package Depth | 390 mm / 15.35 inches |
| Package Weight | 19.2 kg / 42.33 lbs |
