Description

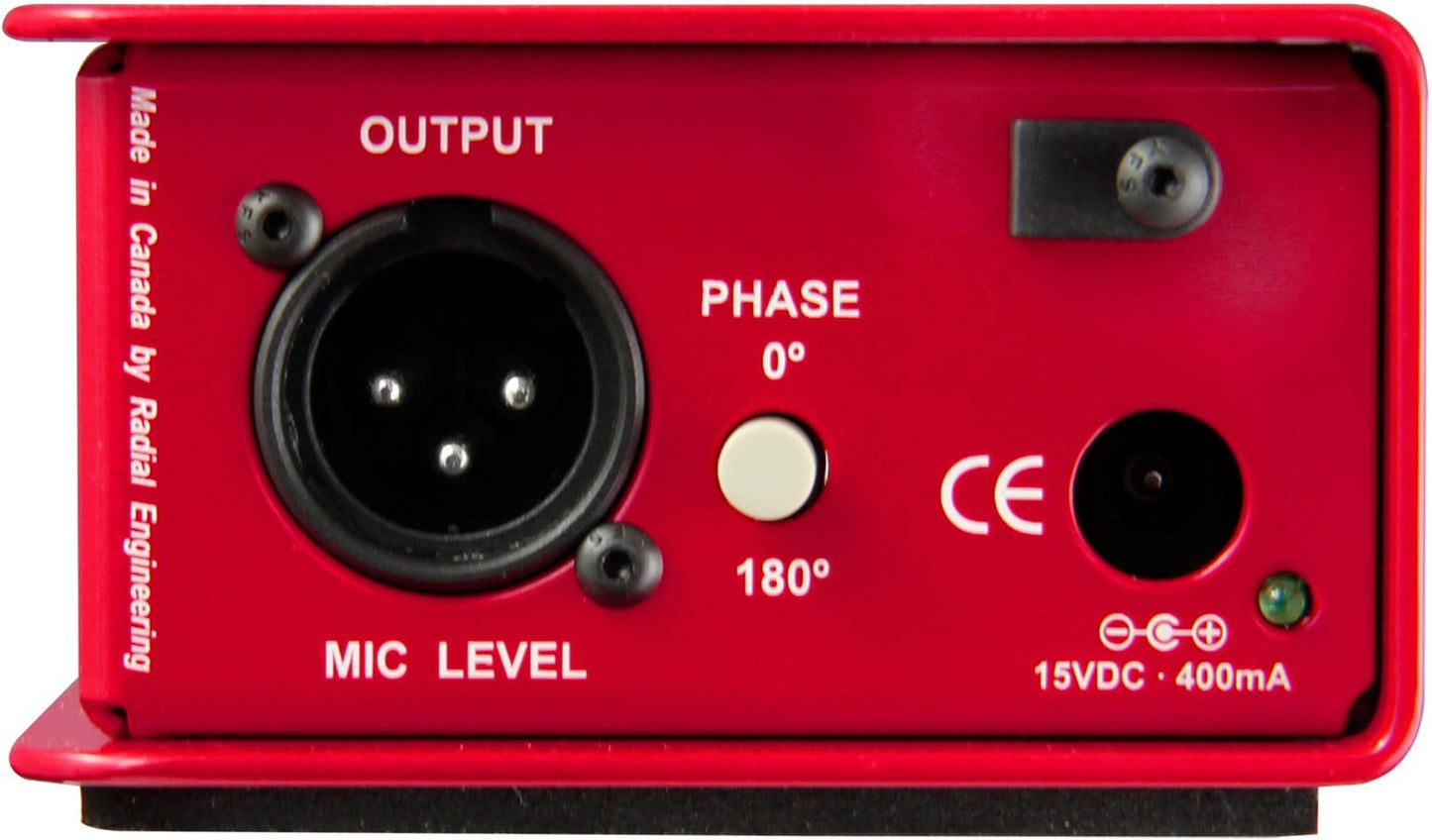

Radial Engineering JDX Guitar Amp Direct Box
The JDX 48 makes it easy to get a consistent and natural amplifier tone through the PA system night after night, by taking a feed directly from your amplifier and employing Radial's popular JDX speaker emulation that produces an effect similar to placing a dynamic microphone in front of a 4x12 half stack cabinet. This gives you a more manageable sound onstage for gigs where feedback is an issue, or if mic'ing your amp isn't an option. For artists that employ in-ear monitoring systems, the JDX 48 provides consistent tone each night in the monitor mix for shorter setup times and a more comfortable audio feed for the artist..
Features:
- Capture the sound of your amplifier through a direct box
- Delivers consistent tone across every performance
- Works equally well on electric guitar and bass
- Can be powered from 48V phantom or DC supply
Specifications:
- Audio circuit type: Discrete Class-A - Transformer Isolated
- Frequency response: Shaped for guitar use
- Dynamic range: 114dB
- Total harmonic distortion: <0.015% (+10dBu input @ 1KHz
- Intermodulation Distortion: 0.03% (+10dBu input @ 1KHz)
- Input Impedance: 15kΩ
- Output Impedance: 2kΩ (XLR out)
- Noise: -100dBu below 0dBu
- Maximum Input: 120W @ 8Ω
- Maximum Output: +14dBu (clip level)
- Construction: 14-gauge steel chassis and outer shell
- Size (L x W x D): 6.25" x 5" x 2" (159 x 127 x 51mm)
- Weight: 2.80lbs (1.28 kg)
- Power: 48V phantom or +15VDC/400mA adapter Included
- Conditions: For use in dry locations only between 5°C and 40°C
