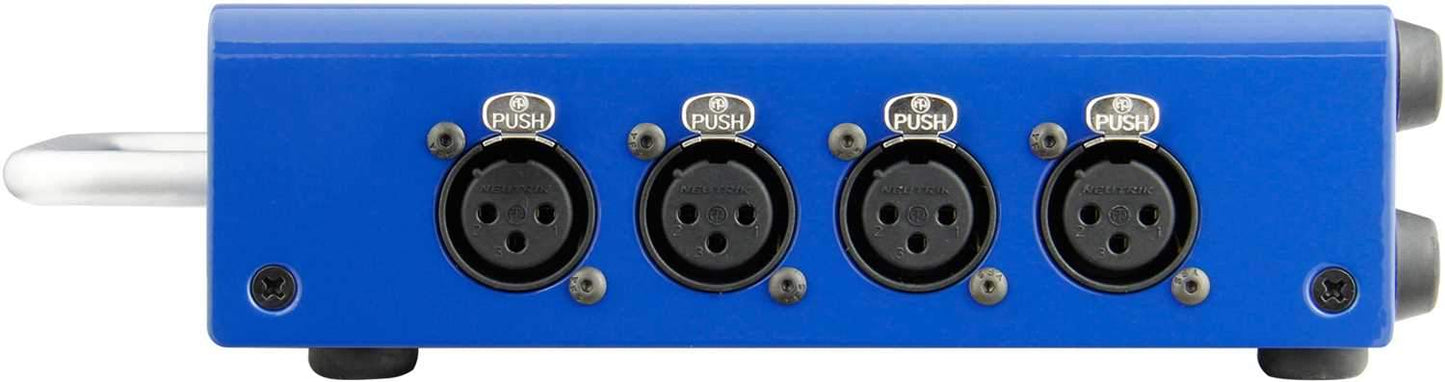

Radial Catapult RX4 4ch Receiver w/ Balanced Outs

Analog audio over Cat 5 wiring
The Catapult TX4 and RX4 act like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Mix & Match to add transformer isolation
All of the Radial Catapult modules are compatible with each other, and each is sold individually, so you can select whichever combination best suits your needs. The Catapult RX4 and TX4 can be used together as a pair, creating a 4-channel audio snake. However, if you need transformer isolation to prevent hum and buzz when splitting audio signals, two additional models of Catapults are available. The TX4L and RX4L have line level isolation transformers for splitting playback tracks or outputs to amp racks, while the TX4M and RX4M can be employed when splitting mic signals on stage. Use any combination of these six models, along with the compact Catapult Mini RX and TX to create a custom snake designed for your unique application.

The Catapult TX4 and RX4 are four-channel audio snakes that allow you to send analog and AES digital audio signals over standard Cat 5 shielded twisted pair cable. This allows for the use of existing Cat 5 or Cat 6 cable infrastructure to connect audio signals from one part of a building to another, or to run sub-snakes over long distances with inexpensive and lightweight cable. The TX4 has four XLR-F inputs and four XLR-M outputs, while the RX4 has two sets of four XLR-M outputs. Both units feature an RJ45 type Ethercon input and thru-put, and include ground lifts to help eliminate buzz and hum caused by ground loops. Their rugged design, exceptionally flat frequency response, and low noise make the TX4 and RX4 excellent options for transmitting analog or AES audio in critical situations.

Features:

• XLR Output
  Glass-filled nylon XLR connectors are tougher than steel, provide 100% isolation. Feature nickel-silver contacts that will not tarnish over time.
• XLR Thru
  Thru output of XLR inputs with the option of mic or line level transformer isolation.
• RJ45 Input
  Standard Ethernet connection for shielded Cat 5 cable used to receive audio from Catapult TX module.
• RJ45 Thru
  Parallel connection from XLR outputs used to feed additional Catapult module.

Specifications:

• Audio circuit type: Passive splitter
• Frequency response: 7Hz ~ 20KHz
• Dynamic range:140dB
• Total harmonic distortion:0.0005% @ 1kHz
• Common Mode Rejection Ratio: >103dB
• Maximum Input:+35dBu
• General
• Construction: 14 gauge steel chassis & outer shell
• Size (L x W x D): L: 8 1/8 x W: 4 1/8 x H: 2
• Weight: 2.6 LBS
• Shipping size (L x W x D):L: 11 x W: 5 x H: 2.75
• Shipping weight: 2.9 LBS
• Power:Passive, no power required
• Conditions: For use in dry locations only between 5°C and 40°C
