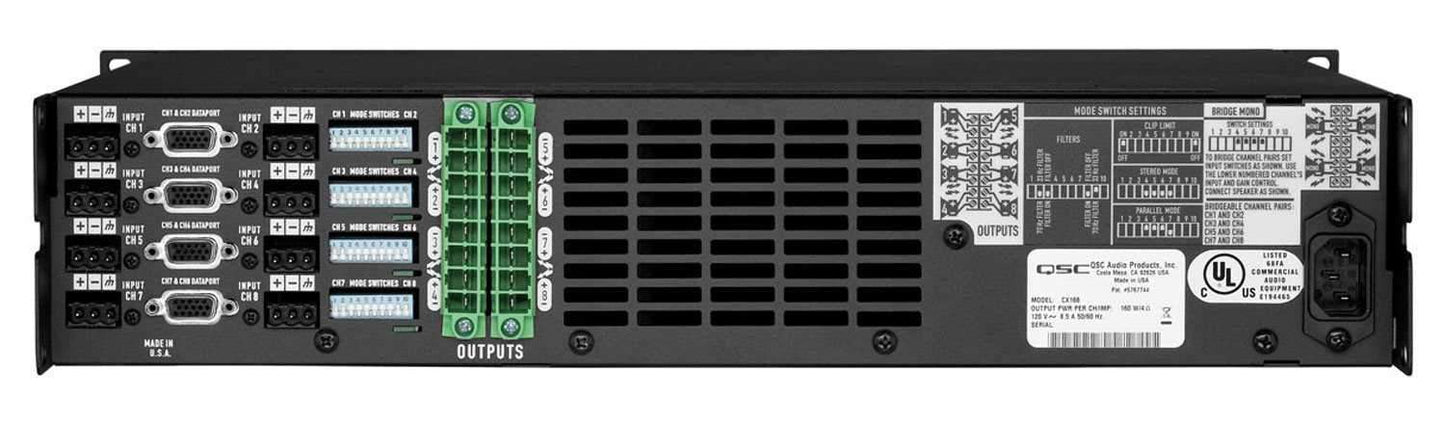

QSC CX108V 8 Channel 70 Volt Power Amp
The CX Series amplifiers are designed to meet the specialized needs of sound contractors. Featuring PowerLight switch mode power supply technology and features like gain control security panels and 70 volt direct models. All models feature DataPorts for integration with Q-Sys or QSControl.net systems. CX amplifiers also include an HD15 Data Port connector to interface with Q-Sys and QSControl networked audio systems, for remote amplifier monitoring and control. 4-channel CX amplifiers give you four channels in only two rack spaces-without compromising on power. Choose from three models - a direct 70 volt model and two low impedance versions, each equipped with our exclusive PowerLight switching power supply technology to virtually eliminate noise and hum. With high output power, versatile loading options, high thermal capacity and unmatched reliability, the CX Series is the perfect solution to any permanently installed sound system.
Features:- 100 watts per channel at 70 volts (CX108V)
- 90 watts per channel at 8 ohms and 130 watts per channel at 4 ohms (CX168)
- Compact size - only two rack spaces and 14" deep for reduced rack space
- Channel pairs bridgeable for maximum flexibility
- Exclusive PowerLight switch-mode power supply technology for high performance and compact size
- Active Inrush Limiting eliminates AC inrush current, removing the need for expensive power sequencers
- Four HD15 DataPorts (one per channel pair) for Q-Sys and QSControl computer control and monitoring
- Custom integrated gain control security cover for tamper-proof installations
- 1 dB recessed detented gain controls for fast and accurate settings
- Detachable Euro style input and output connectors
- DIP switch control for clip limiters, high-pass filters, bridge mono and parallel operation
- Selectable high-pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (50 Hz or 75 Hz; CX108V) (33 Hz or 70 Hz; CX168)
- Comprehensive front panel indicators including signal, clip, bridge mono and parallel input LEDs
- Fully protected - including DC, infrasonic and ultrasonic, thermal overload and short circuit protection
- High-performance Class AB+B complementary bipolar output circuitry
- Light weight - only 21 pounds (9.5 kg) for easier racking and shipping
- 3-year warranty plus optional 3-year extended service contract
