Description

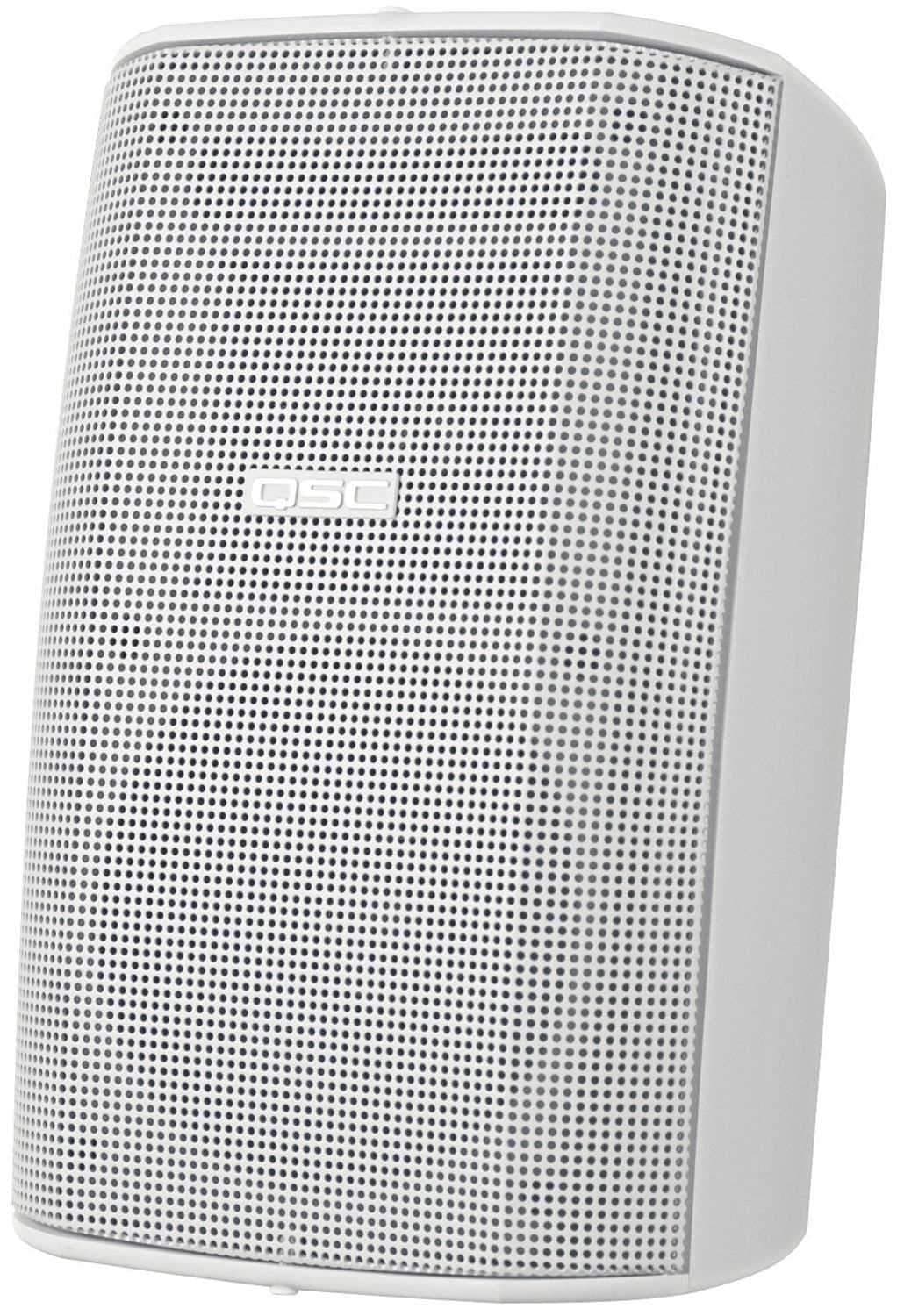

QSC AD-S52-WH 5.25" Installation Speaker - White (Pair)

The QSC AcousticDesign AD-S52 is a full range, surface mount loudspeaker with sleek, contemporary styling that fits perfectly into multiple environments and applications including hotels, restaurants, convention facilities, and multimedia environments. The loudspeaker's low frequency driver is magnetically shielded, making the AD-S52 perfect for use near video monitors.

The AD-S52 is a high output, 2-way design incorporating a 5.25" weatherproof, LF transducer and a 1" neodymium tweeter. This exceptional loudspeaker carries the added benefit of built-in dynamic power protection - thus ensuring system reliability in the event of overload conditions.

The AD-S52 system package includes a ball mount assembly for convenient installation of the enclosure in a wide variety of orientations. If desired, the ball mount adapter's back plate can be removed, reducing the overall depth of the assembly and the footprint of the mount on the wall. Further, the assembly includes a weather resistant input connection cover to protect the 5-way binding post input terminals.

Features:
  • 5.25 Inch, 2-way Design - in a lightweight, contemporary styled multipurpose enclosure
  • Magnetically Shielded LF Transducer - ideal for use near video monitors
  • Flexible Ball Mount Assembly Included - for convenient installation
  • 70V/100V Transformer Versions Available - for use with distributed audio systems
Specifications:
  • Configuration: Compact two way, ported enclosure
  • Low-frequency Transducer: 5.25" shielded, weather-resistant
  • High-frequency Transducer: 1" neodymium tweeter
  • Frequency Range:
    • Frequency Response (±3 dB): 75 Hz - 19 kHz
    • Useable Frequency Range (-10 dB): 60 Hz - 20 kHz
  • Maximum Output
    • Continuous: 104 dB SPL
    • Peak: 110 dB SPL
  • Nominal Impedance: Switchable 8 ohms
  • Power Rating: 60 W (IEC, 100 hours)
  • Recommended Max Amp Power: 120 W RMS
  • Sensitivity: 86.5 dB, 2.83 V, 1 m, free field (4pi)
  • Nominal Coverage: 90° H x 90° V
Enclosure
  • Material: Injection molded, weather resistant, high impact polystyrene
  • Environmental: Exceeds Mil Spec 810 for humidity, salt spray and dust; IEC 60529 IP-X4 splash rating
  • Weather Resistance: Yes
  • Grille: Heavy duty powder coated aluminum
  • Connectors: Pair of 5-way binding posts
  • Mounting Hardware: Included ball mount assembly; available optional yoke mount
  • Net Weight: 15 lb (6.8 kg)
