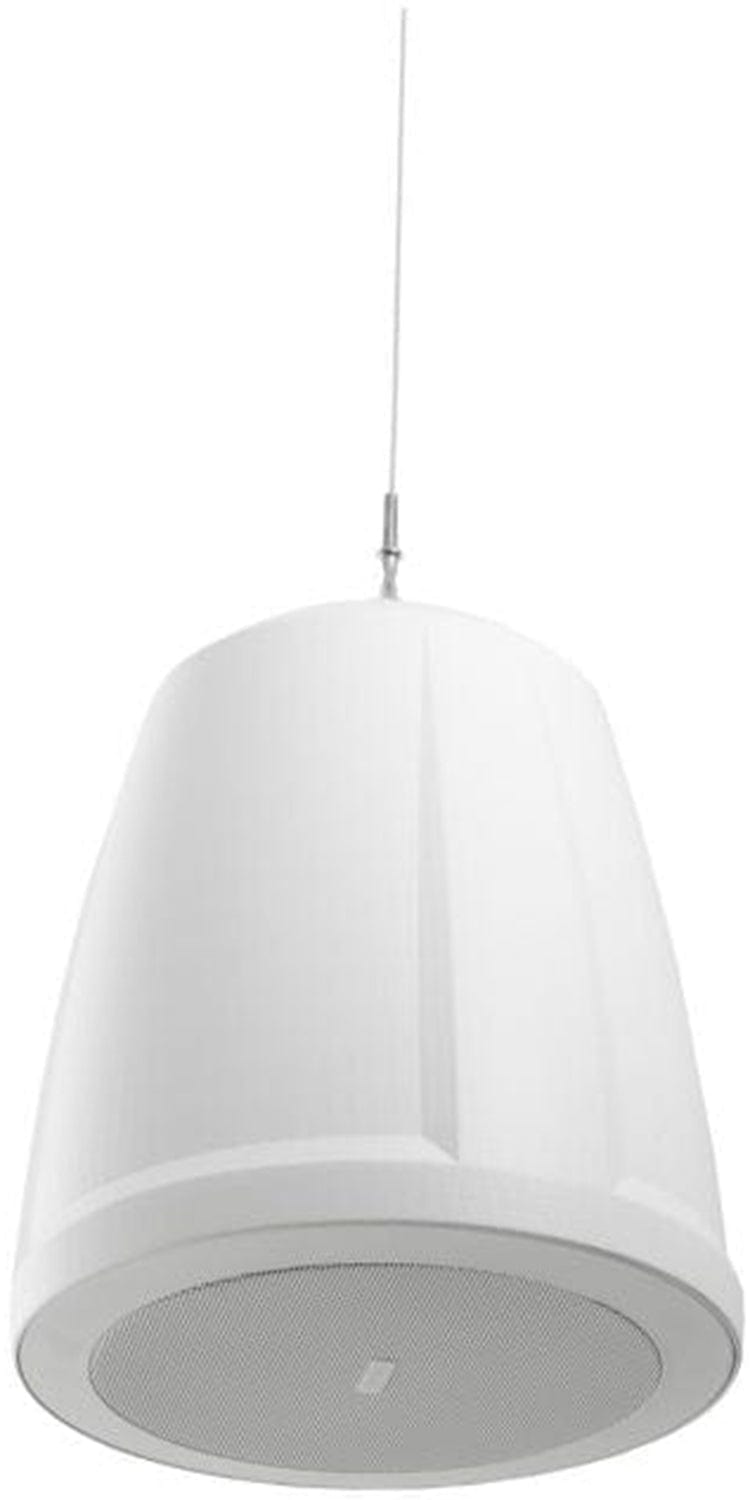

QSC AD-P6T-WH 6.5-Inch Two-way Pendant Speaker with 70/100V Transformer (White)

The QSC AcousticDesign AD-P6T is a 6.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.

The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant applications, the AcousticDesign Series allows integrators seamless transitions within blended installations.

DMT (Directivity Matched Transition) is QSC's design philosophy where the high frequency waveguide is matched to the natural conical behavior of the woofer at the crossover point. The result is a coherent transition between transducers with improved off-axis power response for consistent 135° conical DMT coverage.

The AD-P6T features a high quality 6.5" weather treated paper cone woofer with a 1" voice coil and a 0.75" aluminum dome tweeter positioned on a DMT waveguide.

The accurate frequency response of the AD-P4T is maintained even in 70/100V applications by use of a low-loss, low-saturation 60-watt transformer with selectable taps, including 16Ω bypass, using a rotary selector located under the snap-fit magnetically attached powder coat steel grille.

To retain lasting good looks, the rugged ABS enclosure is further protected by using UV inhibitors that prevent discoloration. The magnetic grille features a stick-on logo that can be removed blemish-free for installations where branding is not permitted.

Installers will appreciate the two quick-link cable assemblies and slip-lock fasteners to speed the installation. Located under a sealable input cover to prevent moisture at the terminals, a locking 4-pole Euro-block connector that can accept four 18AWG pairs eliminates the termination hassles of star topology wiring designs.

To further speed the install process while obtaining optimal results, Intrinsic Correction voicings are easily deployed via Q-SYS Platform and CXD Series amplifiers, as part of a complete QSC Systems solution.

The AD-P6T is available in QSC standard black (RAL 9011) or white (RAL 9010) and may be painted to match any decor.

Product Features

Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications

DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area

Snap-fit magnetic grille

2x quick-link suspension cables and slip-lock fasteners provided

Intrinsic Correction voicings available via Q-SYS Ecosystem and CXD amplifiers

Low-saturation and low-loss 70/100V transformers with 16O bypass

Blemish-free removable logo

Sealable input cover to prevent moisture from entering the input terminal block

Available in black (RAL 9011) or white (RAL 9010)

Complete EASE, CF2, CAD, & BIM information available online

Product Specifications

LF transducer: 165 mm [6.5 in] weather treated paper cone woofer

HF transducer: 19 mm [0.75" in] aluminum dome tweeter

Effective frequency range 1: 56 Hz - 20 kHz

Rated noise power / voltage 2: 60 watts / 31 volts (rms)

Sensitivity [dB] 4

Sensitivity at 4m, 100V maximum tap: 88

Rated coverage (-6 dB) 3: 135° conical DMT

Directivity factor 3: 6.5

Directivity index [dB] 3: 8

Maximum continuous SPL [dB] 5: 106

Maximum peak SPL [dB] 5: 112

Nominal impedance [ohms]: 16

Recommended amplifier: 120 watts

Transformer taps / impedance: 16Ω (in bypass setting) 7.5W (70V); 15W (100V) Tap: 667Ω, 15W (70V); 30W (100V) Tap: 333Ω, 30W (70V); 60W (100V) Tap: 167Ω, 60W (70V); N/A (100V) Tap: 83Ω

Input connector type: Euroblock connector with parallel output

Enclosure material: Flame retardant ABS 765A VO baffle and back can

Grille material: Powder coated steel

Ingress protection: IP-34

Operating environment: Designed for indoor use

Operating temperature range: -20 to 50° C [-4 to 122° F]

Net weight: 4.1 kg [9 lb]

Product dimensions (Diameter x Height): Ø 287 x 323 mm [Ø 11.3 x 12.7 in.]

Shipping weight: 5.4 kg [11.8 lb]

Shipping dimensions (H x W x D): 343 x 406 x 356 mm [13.5 x 16 x 14 in]

Included Mounting Hardware: Two quick-link cable assemblies length (3.25m/128in 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille.

Safety Agency: UL1480, Transformer UL registered per UL1876, ROHS, CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.
