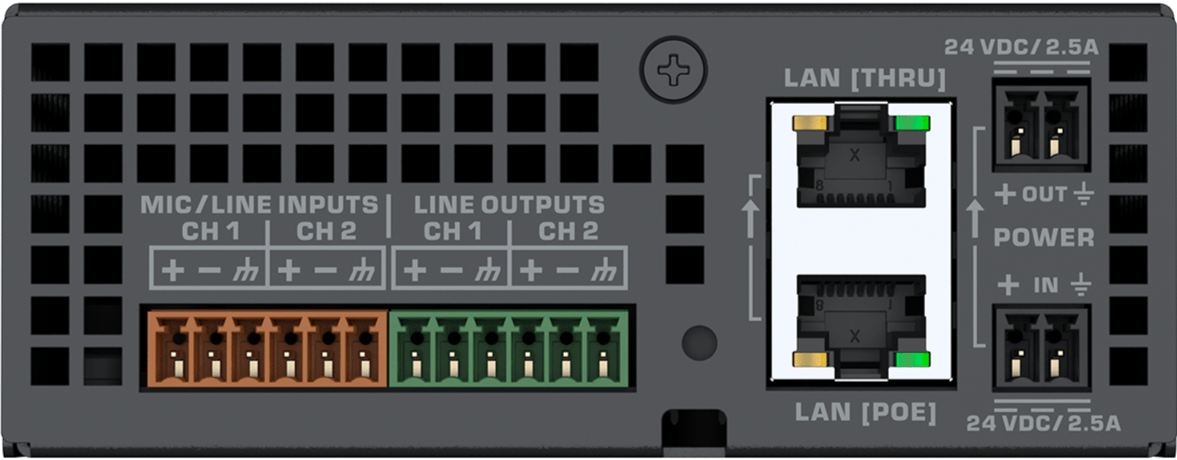

Q-SYS QIO-ML2x2 Q-Sys Peripheral with 2 Mic/Line-ins and 2 Line-outs

Q-SYS QIO-ML2x2 Q-Sys Peripheral with 2 Mic/Line-ins and 2 Line-outs

The Q-SYS QIO Series network audio I/O expanders extend your Q-SYS system’s capabilities and enable streamlined interoperability with non-networked audio devices. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology. There are three models that offer mic/line connectivity to integrate consumer or professional audio devices into your Q-SYS system.

Professional mic/line connectivity where you need it

QIO Series network audio I/O expanders allows you to provide your Q-SYS system with greater flexibility to deploy mic/line audio connectivity where it’s most convenient. The network audio I/O expanders feature professional mic/line level inputs with +48 VDC phantom power and/ or line outputs to ensure high-performance and compatibility, along with microphone detection on inputs to enable monitoring, usage statistics and failure notifications. Additionally, each of the three models features a compact form factor that can be rack- or surface-mounted.

Expanded I/O customization

QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable)).

Simplicity & scalability

Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).

Designed for Q-SYS

The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future.

Features & Benefits

• Native network audio I/O solution for Q-SYS
• QIO-ML2x2: Two (2) mic/line inputs and two (2) line outputs
• Professional, high performance mic/line level inputs (with +48 VDC phantom power) and/or line outputs
• Microphone detection on inputs to enable monitoring, usage statistics and failure notifications
• Power over Ethernet (PoE) capable or daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power
• Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
• Surface- or rack-mountable (1RU, quarter width)
• Includes surface mounting hardware

Specifications

• Two (2) mic/line inputs and two (2) line outputs

Mic/Line Inputs

• Maximum input level: +24 dBu
• Preamplifier gain range: 0 dB to 60 dB
• Phantom power: +48 VDC
• Equivalent Input Noise: < -120 dBu, no weighting @ 20 Hz to 20 kHz
• Input to input crosstalk @ 1 kHz: > 85 dB

Input Dynamic Range

• @ +24 dBu sensitivity: > 105 dB
• @ +10 dBu sensitivity: > 100 dB
• @ -10 dBu sensitivity: > 95 dB
• @ -36 dBu sensitivity: > 80 dB
• Input impedance: 5 kΩ single-ended, 10 kΩ balanced

Line Outputs

• Output audio range level: -36 dBu to +24 dBu
• Output dynamic range: 108 dB
• Output to output crosstalk @ 1 kHz: > 85 dB
• Output Impedance: 150 Ω to 300 Ω
• Sample rate: 48 kHz
• Bit Depth: 24 bit

Other Connectors

• External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
• LAN (PoE): Gigabit LAN connection for Q-LAN, PoE
• PoE specification: Conforms to IEEE 802.3af Type 1
• LAN (Thru): Ethernet daisy-chaining

General

• Dimensions: 8.5 x 4.25 x 1.59 in (215.9 x 108 x 40.4 mm)
• Weight: 1.72 lb (0.78 kg
• Mounting options: Surface- and wall-mountable (hardware included) Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately)

Environmental

• Ambient operating temperature range: 0°C to +50°C
• Humidity: 0% - 85% through 30°C, non-condensing
• Storage temperature: -20° to 70°C
• Compliance: FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, China RoHS directive GB/T26572, EAC, UL, C-UL, NOM-019
