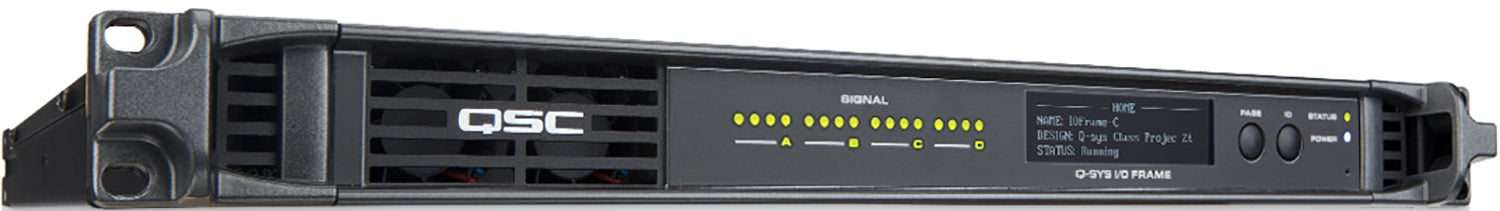

Q-SYS I/O FRAME Versatile Q-SYS I/O–Network Interface
Q-Sys™ is a fully integrated system that encompasses everything from audio input to loudspeaker output, providing complete routing, processing, control, and monitoring with the quality and reliability QSC is renowned for. Positioned near audio sources and destinations, I/O Frames offer connection points for interfacing Q-Sys with other audio system components like mixers and power amplifiers.

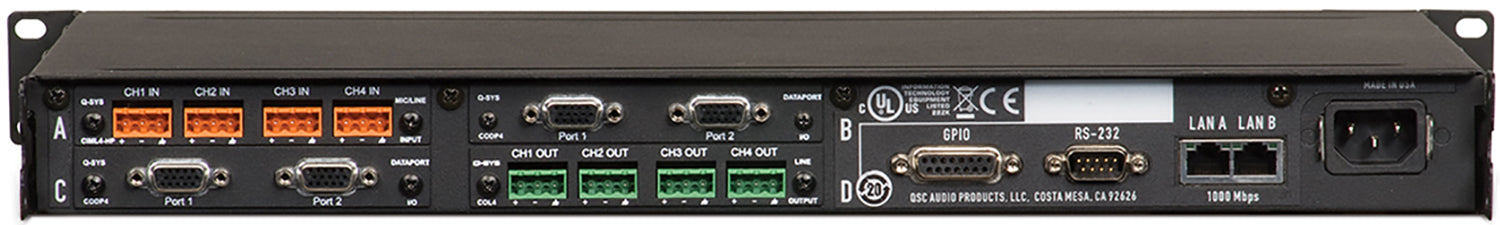

Each I/O Frame includes four card slots, allowing up to four I/O cards in any combination, supporting up to 16 channels of input and/or output in a single unit. Dual Gigabit Ethernet connections ensure that audio signals are routed through the Core for processing, optimizing placement of inputs and outputs near their respective sources and destinations.
Specifications:
- I/O Frame
- Four card slots
- 16x16 network I/O channels
- Dual LAN ports for network redundancy
- 8 configurable GPIO
- 1RU
- Rear plates (RP1 Kit) included
- Four card slots
- 16x16 network I/O channels
- Dual LAN ports for network redundancy
- 8 configurable GPIO
- 1RU
- Rear plates (RP1 Kit) included
