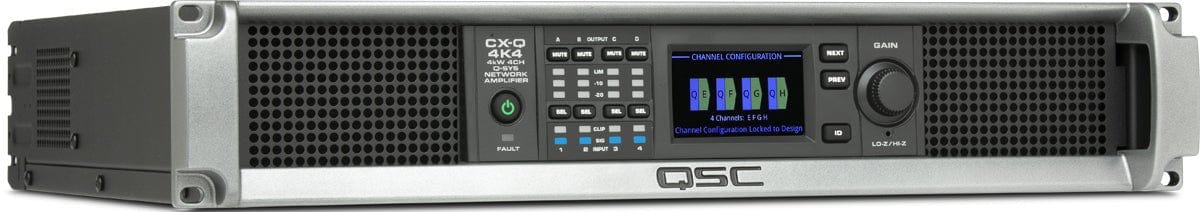

Q-SYS CX-Q 4K4 Four-Channel Network Amplifier for the Q-SYS Platform
Q-SYS CX-Q Series network amplifiers combine a legacy of robust power amplifiers, advancements in high-efficiency output devices and native network transport, control and monitoring capabilities. CX-Q 4K4 features four channels, capable of delivering customized power output loading and a total maximum power of up to 4000 W. Low-Z, 70 V or 100 V direct drive are available on all channels.
Build for Q-SYS
Simple drag-and-drop integration into your Q-SYS design, enabling network routing, advanced processing and control.
Legacy of power redefined
These network amplifiers are built with a 5th generation high-efficiency, Class-D hybrid powertrain design built upon the dependable PL380 PowerLight™ amplifier platform.
Flexible & efficient channel power distribution
CX-Q Series network amplifiers feature FlexAmp™ and FAST (Flexible Amplifier Summing Technology™), which combine to provide extreme flexibility in output deployment.
Routable input options
Four channels of mic/line inputs (with +12 V phantom power) for additional on-ramps into Q-SYS.
Additional Features
- PowerLight universal switchmode power supply with PFC for highest efficiency, improved audio performance and low weight
- Touch-proof Euroblock loudspeaker connections
- Eight bi-directional GPIO connections for further control and integration of third-party peripherals within Q-SYS
- Automatic energy saving modes ensure that the amplifier will draw the minimum amount of AC power while still providing outstanding audio quality
General Specifications
Note: All native Q-SYS peripherals and end points, including CX-Q Series, require a connected Q-SYS Core to configure and operate.
Typical distortion
- 8Ω: 0.02 - 0.05%
- 4Ω: 0.04 - 0.1%
- Maximum distortion 4Ω - 8Ω: 1.0%
- Frequency response: 20 Hz - 20 kHz +0.2 dB / -0.7 dB
Noise
- Unweighted output muted: > 102 dB
- Weighted output muted: > 106 dB
- Gain (1.2V setting): 35 dB
Damping factor
- Input impedance: > 8k balanced and > 4k unbalanced
- Amplifier and load protection: Short circuit, open circuit, over current, over voltage, thermal, RF, DC fault shutdown, active inrush limiting, on/off muting
- AC power input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
- Agency approvals: UL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions)
- Carton contents: IEC cable, quick start guide, Euro (green) connectors
Controls and Indicators
- Controls and indicators (front)
- Power
- Channel MUTE buttons
- Channel SELECT buttons
- Channel Input Signal and CLIP LED Indicators Channel Output and LIMIT LED meters
- NEXT, PREV, ID buttons
- Control knob
- Controls and indicators (rear)
- AC Power Disconnect (IEC C-14)
Connections
- Input connectors: "Q" models - 3-pin Euro (green) and Q-LAN Network connectivity
- Output connectors: 8-pin Euro (green)
Weights and Dimensions
- Dimensions (H×W×D) in: 3.5 × 19 × 16
- Weight net: 11.3 kg / 25 lb
- Weight shipping: 13.2 kg / 29 lb
