PreSonus RC 500 1-Channel Channel Strip
The RC 500’s 3-band semi-parametric EQ was designed to match the preamp and compressor. It combines isolated filters and optimized, per-band Q to provide subtle signal-shaping without harsh artifacts.
Features:- Transformer-coupled, high gain microphone preamp with a Class A hybrid design
- FET based compressor using hybrid detection methods with switching relays for hard bypass
- 3-band semi-parametric equalizer with switching relays for hard bypass
- +48V phantom power, 80 Hz highpass filter, and -20 dB pad

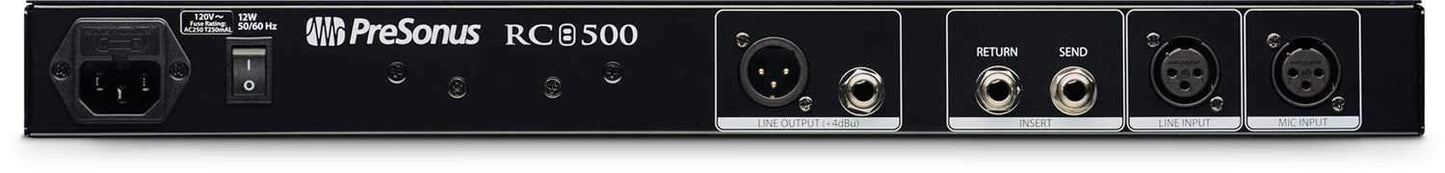

- Front-panel 1/4" instrument and rear-panel XLR microphone and line inputs with Input Select switch
- VU meter with selectable output level/gain reduction display
- Analog insert with balanced send and return
- High grade components: film capacitors, 1% tolerance resistors, and very low-distortion op amps
- Master output control
- Balanced output on XLR and 1/4"TRS connectors
- Internal toroidal power supply with IEC connector
- Steel chassis
- Microphone: 1500 ohm
- Line: 1 k ohm
- Instrument: 1 M ohm
- Maximum Input Level:
- Microphone (-20 dB Pad out): 0 dBu
- Microphone (-20 dB Pad in): +20 dBu
- Balanced Line: +18 dBu
- Instrument: 0 dBu
- Microphone (-20 dB Pad out): +20 dB to +70 dB
- Line: -20 dB to +15 dB
- Instrument: +5 dB to +50 dB
- Noise Floor (all inputs, minimum gain): -102 dBu (A-weighted)
- Microphone Equivalent Input Noise (EIN; 20 Hz - 20 kHz): -125 dBu (A-weighted)
- Microphone Input THD+N: < 0.025% (20 Hz - 20 kHz)
- Line Input THD + N: < 0.006% (20 Hz - 20 kHz)
- Instrument Input THD + N: < 0.02% (20 Hz - 20 kHz)
- Frequency Response: 10 Hz to 25 kHz, ±1 dB
- Maximum Output Level: +24 dBu
- Output Impedance: 50 ohm
- Type: 2nd-order shelving filter
- Q: 0.5
- Low Band (Low-pass or Bandpass): 20 Hz to 400 Hz, ±16 dB
- Mid Band: 400 Hz to 5 kHz, ±16 dB
- High Band (High-pass or Bandpass): 2 kHz to 20 kHz, ±16 dB
- Type: FET VCA with RMS-based control
- Threshold (Variable): -25 dBu to +20 dBu
- Ratio (Fixed): 3:1
- Attack Time (Variable): Fast (0.5 ms) to Slow (10 ms)
- Release Time (Variable): Fast (30 ms) to Slow (500 ms)
- Curve Type: Soft knee
- Internal supply, standard IEC connector: 100/120/230/240 VAC, 12W
- Dimensions: 1U rackmount
- Height: 1.72"(43.7 mm)
- Depth: 7.69" (195.3 mm)
- Width: 19"(482.6 mm)
- Weight: 7 lb. 3 oz. (3.26 kg)
