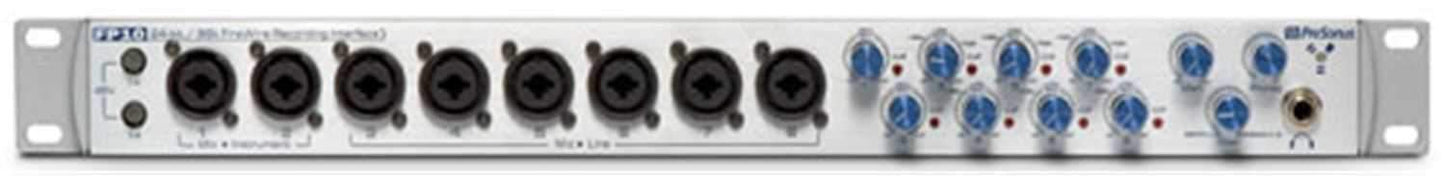

Presonus FP10 Firewire Recording System
The FP10 (formerly FirePod) is a complete 24-bit/96k recording system combining eight high-quality PreSonus XMAX microphone preamplifiers, 24-bit/96k sample rate conversion and as an added bonus, the PreSonus Pro Pak Software Suite featuring Steinberg`s Cubase LE 4 48-track recording software, over 25 real-time plug-in effects and over 2 GB of drum loops and samples for music production.
Hardware
The FP10 FireWire recording interface is equipped with eight PreSonus microphone preamplifiers, 24-bit/96K analog to digital conversion along with SPDIF and MIDI inputs and outputs for professional quality convenient and compact no-hassle recording. The FP10`s Class A preamps are custom-designed by PreSonus to deliver high headroom with low noise sonic performance - perfect for recording a wide variety of sources including vocals, drums, guitars, bass, piano, keyboards, guitars, synths, horns, orchestras, choirs, and more. Eight potentiometers are on the front panel to easily control the input level of each preamplifier.
Inputs one and two of the FP10 can be switched between microphone or instrument level while inputs three thru eight can be switched between microphone or line input. Phantom power (+48V) is available on every channel in groups of four. Channels 1 and 2 feature fully balanced send and return TRS connectors on the rear of the rugged metal chassis for inserting outboard dynamics, EQ and effects processors. The FP10 has eight balanced TRS line outputs as well two balanced TRS MAIN outputs as well as CUE outputs for addtional monitoring. The FP10 also includes stereo headphone output on the front panel, as well as mix control to balance monitoring levels between mixed input and main output signals for zero-latency monitoring. Two channels of SPDIF input and output as well as MIDI input and output are also included. Two FireWire ports are loaded on the FP10 making it possible to daisy-chain multiple FP10`s together creating the possibility for adding additional inputs and outputs (with mic preamps) to your system.
Superior Analog Circuitry - XMAX Class A Preamplifiers
The FP10 starts with eight custom-designed high-voltage, discrete, XMAX Class A microphone preamplifiers. Many other companies offering recording interfaces add the cheapest possible microphone preamplifier as an afterthought to the interface. PreSonus knows that the preamplifier is a key component in the sonic quality of a recording. The job of a microphone preamplifier is to boost microphone level signals to line level so that the signal can be converted from analog to digital. This mic to line boost is generally a preamplification of over 400 times the voltage of the original mic level signal. This preamplification stage is one of the most important stages that the signal will go through before converted to digital, and is why a high performance preamplifier is important to achieving great results. A cheap "off the shelf op-amp" type mic preamp that is found in most interfaces translates into thin, noisy and harsh results.
Features:
- High-Speed FireWire (IEEE 1394) Audio Interface
- Up to 96K Sampling Rate
- 8 XMAX Class A Microphone Preamplifiers (+60dB gain) w/ Trim Control
- 8 Analog Mic/Line Inputs, 2 Instrument Inputs
- 8 Analog Line Outputs
- S/PDIF Digital Input and Output, MIDI Input and Output
- Balanced Send / Return for Channels 1 and 2
- Zero Latency Monitoring
- Separate Main and Cue Mix Outputs
- Daisy-chain multiple FP10`s for additional
