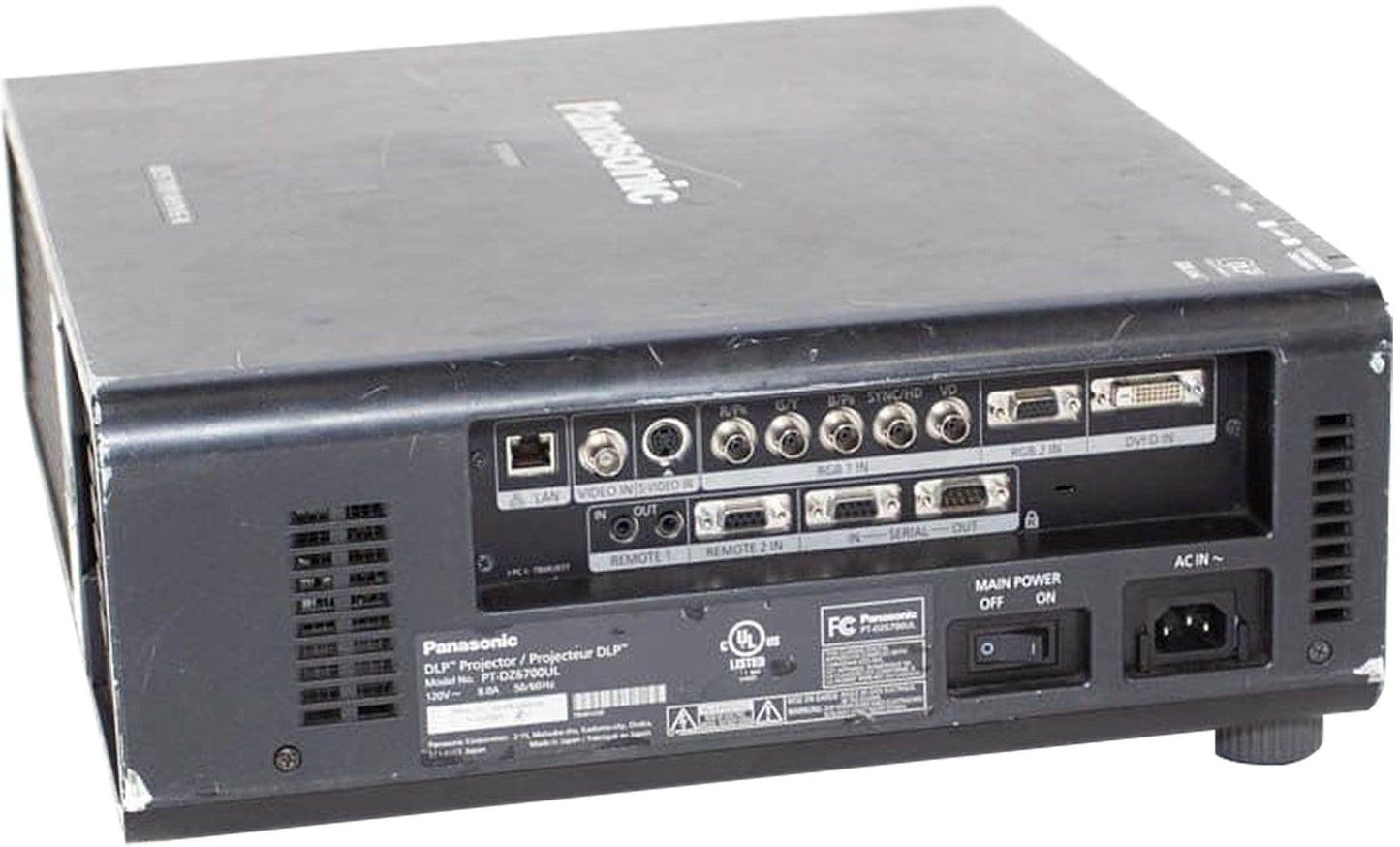

Panasonic PT-DZ6700UL 6K DLP 16:10 Video Projector

Panasonic PT-DZ6700UL 6K DLP 16:10 Video Projector

Panasonic's DZ6700UL projector now offer even brighter and more vivid images with full high definition resolution. Along with the RGB Booster, which combines high brightness and superb color reproduction, a host of technologies work together to enhance image quality. The Dual-Lamp System and Auto Cleaning Filter extend operating stability and contribute to reliability. The DZ6710UL include Geometric Adjustment for projecting images onto curved screens, as well as standard HD-SDI signal compatibility. All models offer high image quality and easy system expansion to increase system integration flexibility.

Features:

• Vivid Picture Quality with High Brightness
  • RGB Booster Significantly Improves Color Reproduction
  • Geometric Adjustment for Specially Shaped Screens
  • Flexible ±360° Installation
  • Multiple Terminals with HD-SDI Compatibility
  • Multi-Screen Support System Seamlessly Connects Multiple Screens
  • High Brightness 6,000 lm with New AC Lamp
  • 3D Color Management System
  • System Daylight View 2 for Enhanced Color Perception
  • Dynamic Sharpness Control
  • Detail Clarity Processor Brings Depth and Clarity to Details
  • Full 10-bit Picture Processing
  • More Effective Noise Reduction
  • Progressive Cinema Scan (3/2 Pulldown)
• Easy Maintenance and Superior Reliability
  • Dual-Lamp System Prevents Image Interruption
  • Auto Cleaning Filter Reduces Maintenance Hassles
  • Liquid Cooling System Attains a High Level of Reliability
  • Dustproof Design with Sealed Optical Block
• System Integration Flexibility
  • Side-by-Side Function
  • A Wide Selection of Lenses (optional)
  • Web Browser Control/Monitoring and E-mail Message Alert
  • Powered Vertical/Horizontal Lens Shift
  • Multi Projector Monitoring & Control Software
  • Standby Mode: eco

Specifications:

• Power supply: 120 V AC 50/60 Hz
• Power consumption:
  • 820 W (880 VA), Standby mode eco*1: 0.2W
  • Standby mode normal: 8 W (Both with fan stopped)
• DLP™ chip:
  • Panel size: 0.67˝ diagonal (16:10 aspect ratio)
  • Display method: DLP™ chip x 1, DLP™ system
  • Pixels: 2,304,000 (1,920 x 1,200) x 1, total of 2,304,000 pixels
• Lens: Optional powered zoom/focus lenses
• Lamp: 300 W UHM lamps (x 2) (dual-lamp system)
• Screen size: 50–600 inches (50–200 inches with the ET-DLE055), 16:10 aspect ratio
• Brightness: 6,000 lumens (dual-lamp, high power mode)
• Center-to-corner uniformity: 90%
• Contrast: 2,000:1 (full on/full off, contrast mode: high)
• Resolution: 1,920 x 1,200 pixels
• Scanning frequency:
  • RGB / DVI-D: Horizontal: 15–91 kHz, Vertical: 50–85 Hz, Dot clock: 162 MHz or lower
  • YPBPR (YCBCR): 525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1035/60i, 1125 (1080)/60i, 1125 (1080)/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p
  • S-Video / Video: Horizontal: 15.75/15.63 kHz, Vertical: 50/60 Hz, (NTSC, NTSC4.43, PAL, PAL60, PAL-N, PAL-M, SECAM)
• Optical axis shift: Vertical: +50% (powered), horizontal: ±10% (powered)
• Keystone correction range: Vertical: ±40° (±30° with the ET-DLE055)
• Installation: Ceiling/floor, front/rear
• Terminals:
  • DVI-D IN: DVI-D 24-pin
  • RGB 1/YPBPR IN: BNC x 5
  • RGB 2/YPBPR IN: D-sub HD 15-pin
  • VIDEO IN: BNC
  • S-VIDEO IN: Mini DIN 4-pin
  • SERIAL IN: D-sub 9-pin (RS-232C compliant)
  • SERIAL OUT: D-sub 9-pin
  • REMOTE 1 IN: M3 jack
  • REMOTE 1 OUT: M3 jack
  • REMOTE 2 IN: D-sub 9-pin
  • LAN: RJ-45 for network connection, 10Base-T/100Base-TX, compliant with PJLink™
• Power cord length: 9´10˝ (3.0 m)
• Cabinet material: Molded plastic
• Dimensions (W x H x D): 19-19/32˝ x 6-7/8˝ x 17˝ (498 mm x 175 mm x 432 mm) (without lens)
• Weight: Approx. 33.5 lbs (15.2 kg) (without lens)
• Operating temperature: 0–45 °C (32–113 °F)
• Operating humidity: 20–80 % (no condensation)
• Supplied accessories: Power cord, Wireless/wired remote control unit, Batteries for remote control (x 2), Wire rope
