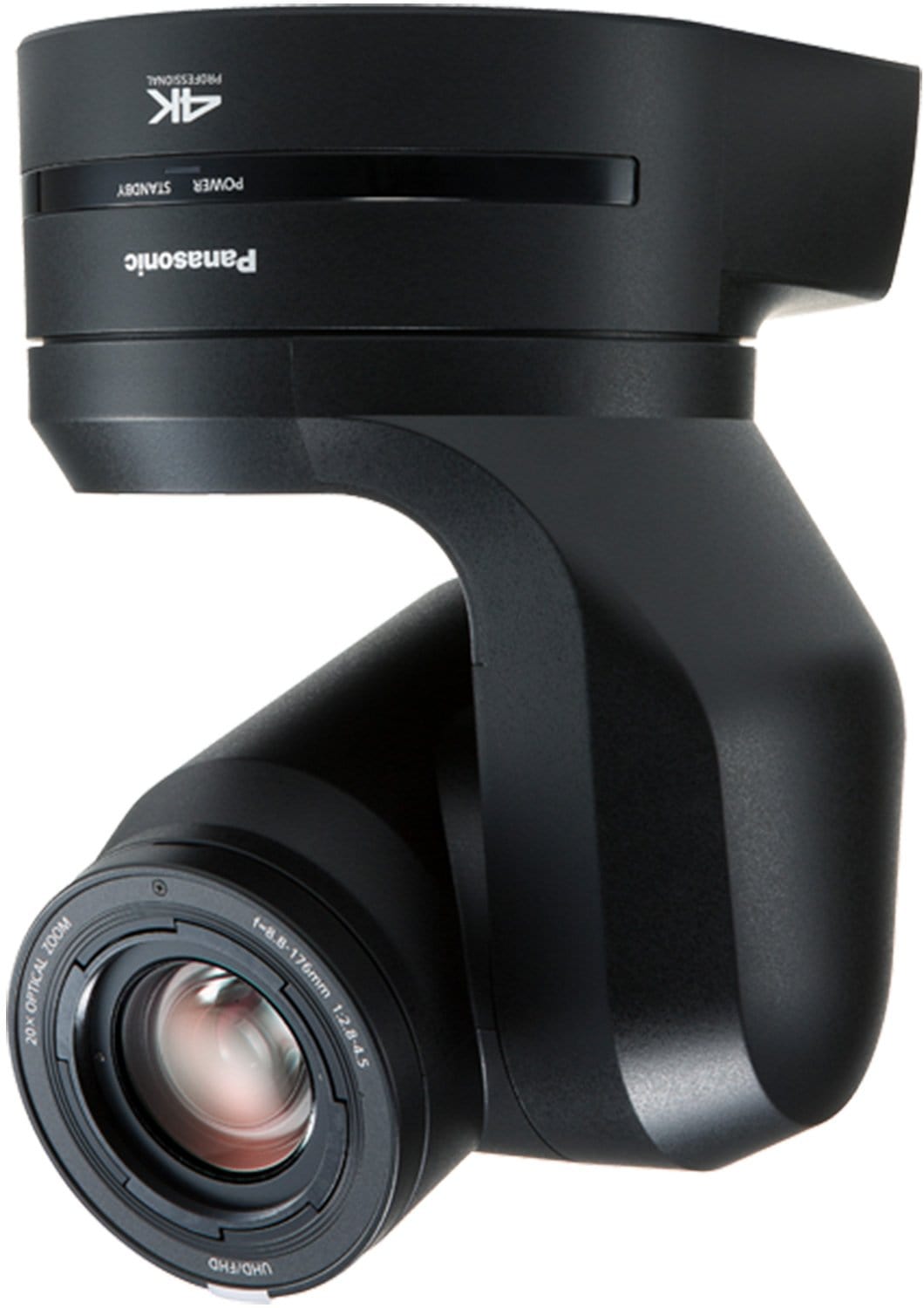

Panasonic AWUE150KPJ 4K HD Robocam PTZ

Panasonic AWUE150KPJ 4K HD Robocam PTZ

Bring UHD 4K quality video to your production with the black AW-UE150K UHD 4K 20x PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K 60p over a variety of 4K connections including 12G-SDI, HDMI, optical fiber, and IP streaming. It features a large 1" type MOS sensor, a 20x optical zoom with a wide 75.1° angle-of-view, and PoE++ compatibility. With the v2.28 firmware upgrade, the AW-UE150K offers V-Log output, a UHD crop function in 720p, a preset on/off iris function, and more.

Features:

• Large 1" type MOS sensor
• HDMI, SDI, and IP output up to UHD 4K
• 20x optical, 32x iZoom in HD, 24x iZoom in UHD 4K
• Wide 75.1° horizontal angle of view (DRS)
• High Dynamic Range (HDR) mode with BT.2020 gamut support
• Optical Image Stabilization (IOS)
• Crop up to three shots from a single 4K image
• Large, adjustable tally light
• Adaptive Matrix function adjusts for strong LED blue light
• 1/4, 1/16, 1/64 ND filters
• Audio input and embedding
• Improved web UI for use with PC, tablet, or smartphone (iOS, Android)
• Maximum 180°/s pan/tilt in high-speed mode
• Monochrome Night Mode
• Digital Noise Reduction (DNR)
• Live streaming via RTMP
• Upgradable to NDI/HX with license

Specifications:

• Image Sensor:
  • Image Sensor: 1-Chip 1" MOS Sensor
  • Horizontal Resolution (TV Lines): 1600 TV Lines
  • Gain: 0 to 42 dB (Expanded)
  • Signal-to-Noise Ratio: 60 dB
  • Sensitivity: f/9 at 2000 lux
  • White Balance: 2000 to 15,000K
• Camera:
  • Shutter Speed: 1/24 to 1/10,000 sec
  • Max Digital Zoom: 32x ( in 1080p)
  • IR Cut Filter: Yes
• Lens:
  • Optical Zoom Ratio: 20x
  • Focal Length: 8.8 to 176mm (35mm Equivalent Focal Length: 24.5 to 490mm)
  • Field of View:
    • Horizontal: 75.1 to 4°
    • Vertical: 46.7 to 2.3°
    • Vertical: 82.8 to 4.6°
  • Maximum Aperture: f/2.8 to 4.5
  • Minimum Focus Distance:
    • Wide: 3.9" / 9.9 cm
    • Telephoto: 39.6" / 100.6 cm
  • Image Stabilization: Optical
  • Focus Control:
    • Autofocus
    • Manual Focus
• Video Output
  • Broadcast System Compatibility: NTSC, PAL
  • Output Formats:
    • SDI, HDMI, RJ45, Optical Fiber: 3840 x 2160p at 24, 25, 29.97, 50, 59.94 fps
    • 1920 x 1080p at 25, 29.97, 50, 59.94 fps
    • 1920 x 1080PsF at 23.98, 25, 29.97 fps
    • 1920 x 1080i at 50, 59.94 fps
    • 1280 x 720p at 50, 59.94 fps
  • Embedded Audio:
    • HDMI
    • SDI
  • IP Streaming: H.264, H.265, MJPEG: 1080p, 720p at 25p, 30p, 50p, 60p (0.51 to 76.8 Mb/s)
• Control
  • Move Speed:
    • Pan: 0.08 to 180°/sec
    • Tilt: 0.08 to 180°/sec
  • Movement Range:
    • Pan: 350° (-175 to 175°)
    • Tilt: 120° (-30 to 210°)
  • Tally Light: Yes
  • Supported Control Protocols:
    • RS-232
    • RS-422
• Interfaces:
  • Video Output Connectors:
    • 1 x HDMI Type A (HDMI 2.0) Male
    • 1 x BNC Male (Loop Output)
    • 1 x BNC (3G-SDI) Male
  • Audio I/O: 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
  • Control Interface: 1 x RJ45 (IP Control, RS-422)
  • Other I/O: 1 x BNC (Genlock) Input
  • Expansion Slots: 1 x SFP+ Slot
• Power:
  • PoE Support: PoE++ 802.3bt
  • Power Connectors: 1 x Proprietary (10.8 to 13.2 VDC)
  • Power Consumption:
    • Power Supply: 10.8 to 13.2 VDC at 4 A
    • PoE: 42 to 57 VDC at 1.2 A
• Environmental:
  • Operating Temperature: 32 to 104°F / 0 to 40°C
  • Storage Temperature: -4 to 122°F / -20 to 50°C
  • Operating Humidity: 20 to 90%
• General:
  • Sound Level: NC35
  • Dimensions: 10.51 x 8.62 x 8.39" / 267 x 219 x 213 mm (Excluding Bracket & Protrusions)
  • Weight: 9.26 lbs. / 4.2 kg
• Packaging Info:
  • Package Weight: 14.75 lbs.
  • Box Dimensions (LxWxH): 19 x 15 x 14.5"
