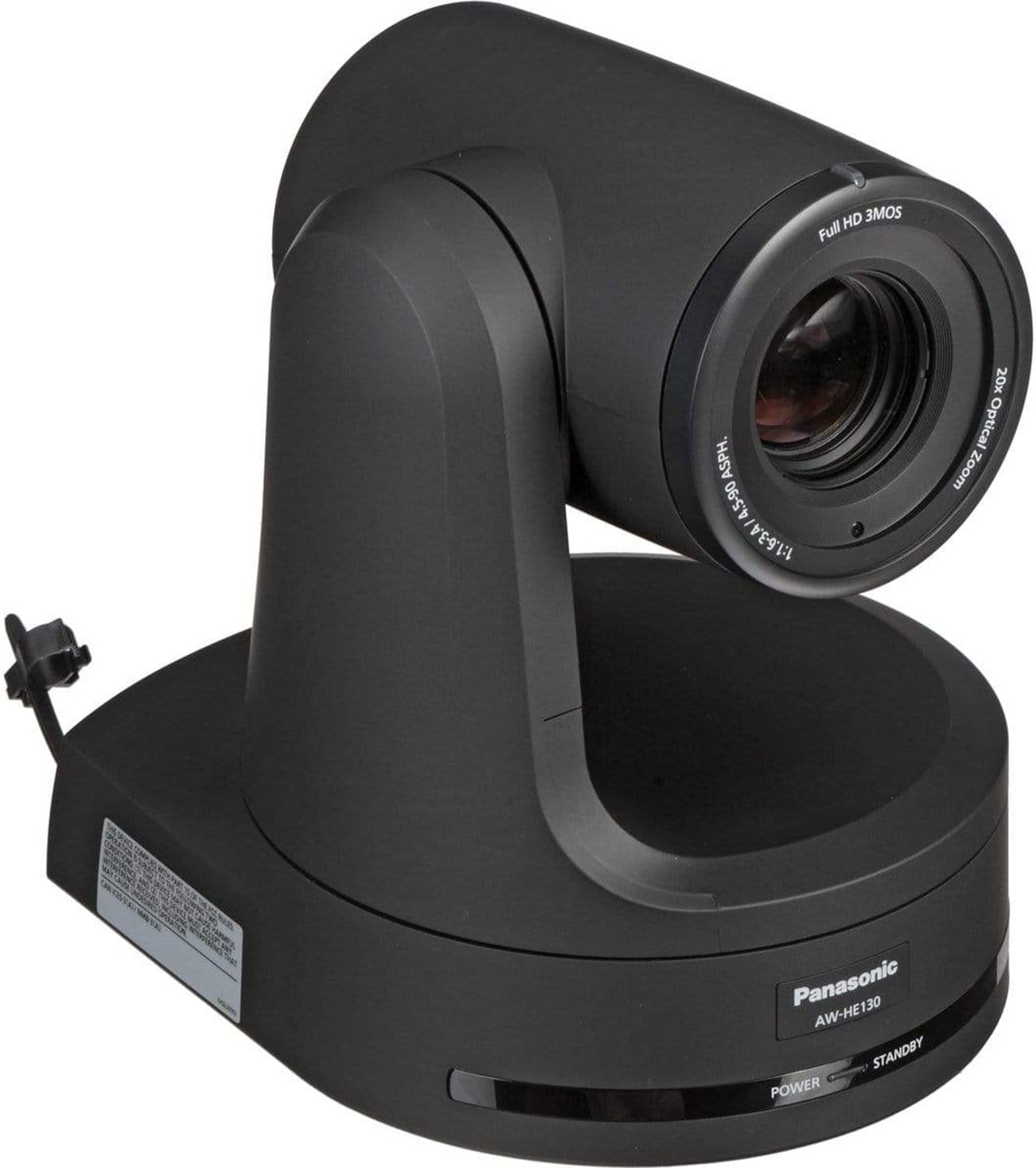

Introducing a new PTZ camera capable Production Quality Full HD video output up to 1080/60p via IP transmission, in addition to 3G-SDI and HDMI. Equipped with three newly developed 1/2.86 MOS sensors for high sensitivity, a superior S/N ratio and high resolution. The AW-HE130W/K also supports PoE+*, so the camera only needs one LAN cable for its power supply, control and video output. Presenting the new standard in versatile, high-quality remote production with 3G-SDI, IP-Streaming, and POE+.

Features:

• Newly developed 1/2.86-type three MOS sensors
• 1.4x Extender Zoom
• Optical Image Stabilizer, Night Mode & Fan-Less Design
• PoE+ for Power, Streaming & Control via a Single Cable
• HD-IP Streaming

Specifications:

• Dimensions(W x H x D): 180 mm x 228 mm x 234 mm (7-3/32 inches x 9 inches x 9-3/16 inches)(excluding protrusions, cable cover, direct ceiling mount bracket)
• Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
• Power Requirements:
  • DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply)
  • 1.8 A (AC adaptor supplied) 0.6 A (PoE+ power supply)
• Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Finish:
  • AW‑HE130WP/AW-HE130WE: Pearl white
  • AW‑HE130KP/AW-HE130KE: Metallic black
• Allowable Humidity Ranges: 20 % to 90 % (no condensation)
• Mass: Approx. 3.1 kg (6.83 lb) (Including mount bracket)
• Controller Supported*1: AW-RP120G, AW‑RP50, AK-HRP200G
• Lens: Motorized 20 zoom, F1.6 to F3.4 (f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm)
• Minimum Illumination: 2 lx (50 IRE, F1.6, 36 dB)
• Synchro Scan:
  • 59.94 Hz: 60.15 Hz to 642.21 Hz
  • 50 Hz: 50.15 Hz to 535.71 Hz
• Horizontal Resolution: 1000 TV lines Typ (Center area)
• Gain Selection: Auto, 0 dB to 36 dB
• White Balance: AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K)
• Color Separation Optical System: 3MOS
• Focus: Switching between auto and manual
• Focus Distance:
  • Entire zooming range: 800 mm (2.62 ft)
  • Wide end: 400 mm (1.31 ft)
• Gamma:
  • HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3
  • 0.30 to 0.75 (Manual setting)
• Scene: File Scene1, Scene2, Scene3, Scene4
• Electronic Shutter Speed
  • 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
  • 29.97p: 1/30, 1/60, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000
  • 23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
  • 50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
  • 25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
• Imaging Sensors: 1/2.86-type Full-HD 3MOS
• Chroma Amount Variability: OFF, -99 % to 40 %
• Frame Mix*2: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
• Standard Accessories: Mount bracket for installation surface (Hanging*6 / Desktop): 1, Drop-prevention wire: 1, Drop-prevention wire mounting screw (comes attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer,spring washer) M3 x 6 mm: 1, Cable cover: 1, Power cable: 1, AC adaptor: 1, CD-ROM
• Input Connector:
• DC 12 V IN, G/L IN (BNC)
  • BBS (Black Burst Sync), tri-level sync supported
  • Locking to a color subcarrier is not possible with BBS.
• PoE+ (IEEE802.3at standard)
• Panning Range: ±175°
• Quietness: NC35 or less
• Note:
  • *1: It may be necessary to upgrade the version of the controller in order to support the unit.
  • *2: This cannot be configured when the format is 1080/29.97p, 1080/23.98p,1080/29.97PsF 1080/23.98PsF, 1080/25p, or 1080/25PsF.
  • *3: To ensure safety, the unit must be secured using the mount bracket supplied.
  • *4: Use of an STP (shielded twisted pair) cable is recommended.
  • *5: Depending on the pan or tilt position, the camera may be reflected in the image.
  • *6: To ensure more safety, AW-HE130W/K can be secured by using the direct ceiling mount bracket (WV-Q105A).
• Installation Method: Stand-alone (Desktop) or suspended (Hanging)*3
• Camera/Pan-Tilt Head Control:
• IP connecting cable
• When connecting through a PoE+ hub:
  • LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft)
• When a PoE+ hub is not used:
  • LAN cable*4 (category 5 or above, crossover cable) max.100 m (328 ft)
  • RP connecting Cable
  • LAN cable*4 (category 5 or above, straight cable), max. 1000 m (3280 ft)
  • RS-422A, AW series protocol
• Video Output:
  • HDMI: HDMI connector
    • HDCP is not supported.
    • Viera Link is not supported.
  • HD/SD-SDI OUT: SMPTE424/SMPTE292/SMPTE259 standards 75 Ω (BNC x 1)
  • VIDEO OUT: NTSC/PAL 1.0 V
  • p-p
  /75 Ω (BNC x 1)
