Obsidian NX-P 10 Fader and 4-Universe Motorized ONYX Wing

Obsidian NX-P 10 Fader and 4-Universe Motorized ONYX Wing

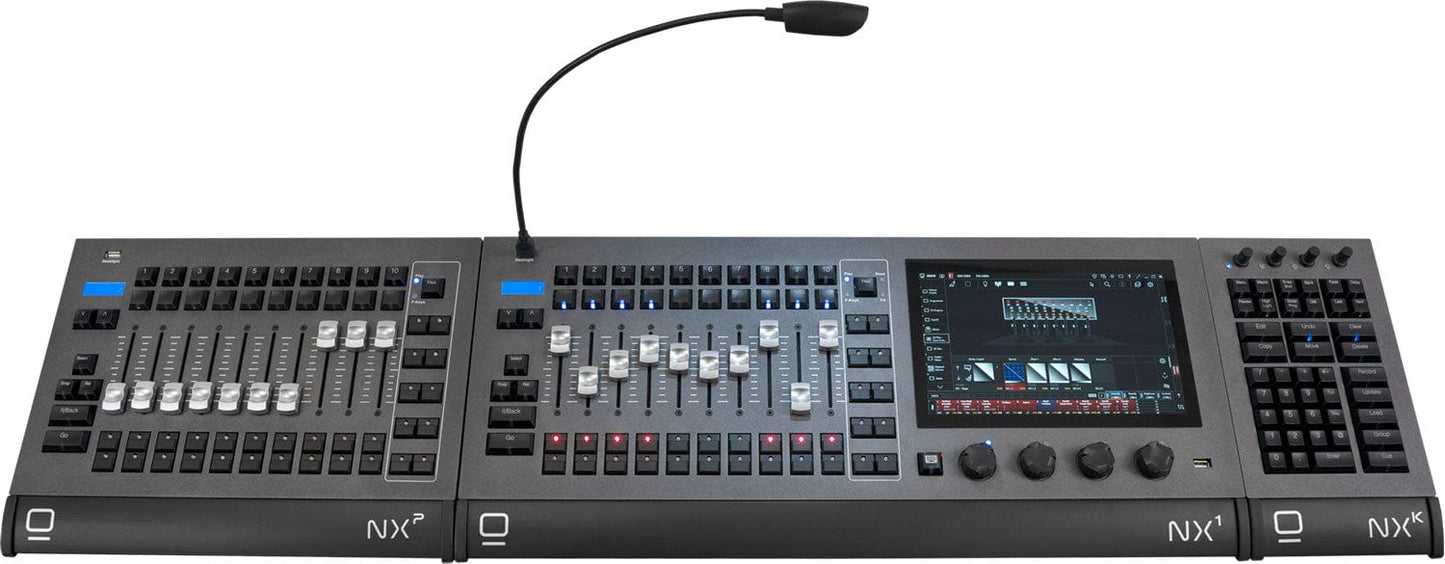

The NXP is a motorized fader wing for ONYX. The ideal expansion for the NX1 console and ONYX PC systems, it replicates the full playback section of the NX1 console. Four integrated DMX ports provide instant connectivity to the lighting system. Multiple NXP wings can be connected to any ONYX console or PC system, expanding direct access with 20 playbacks at a time. The flexible button array can be mapped to playback control or powerful function keys. The NXP replicates the layout and all functionality of the NX1 and NX4 console surfaces so all operation is seamless and intuitive. A simple magnetic alignment system allows attachment on any side of the NX1 console or NXK command pad. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

Features:

• Portable and compact motorized playback wing
• 10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section
• 4x DMX Ports integrated
• ONYX Nova+ License (4 Universes + MIDI/OSC/ Timecode support)


Specifications:

• Surface:
  • 10x 60 mm motorized playback faders, each with 4x function-assignable buttons
  • 10x customizable playback or multi-function keys
  • Playback Select button
  • Master Go section with Go, Pause, Snap and Release
• Connections:
  • 4x DMX / RDM Universe In/Out: 5pin locking XLR
  • IP65 Locking Power In

  • 1x USB-B 2.0 input
• Physical:
  • Length: 298.5 mm (11.75 in.)
  • Width: 373mm (14.7 in.)
  • Height: 71 mm (2.8 in.)
  • Weight: 4.5 kg (9.9 lbs.)
• Electrical: 100-240 V 50/60 Hz
