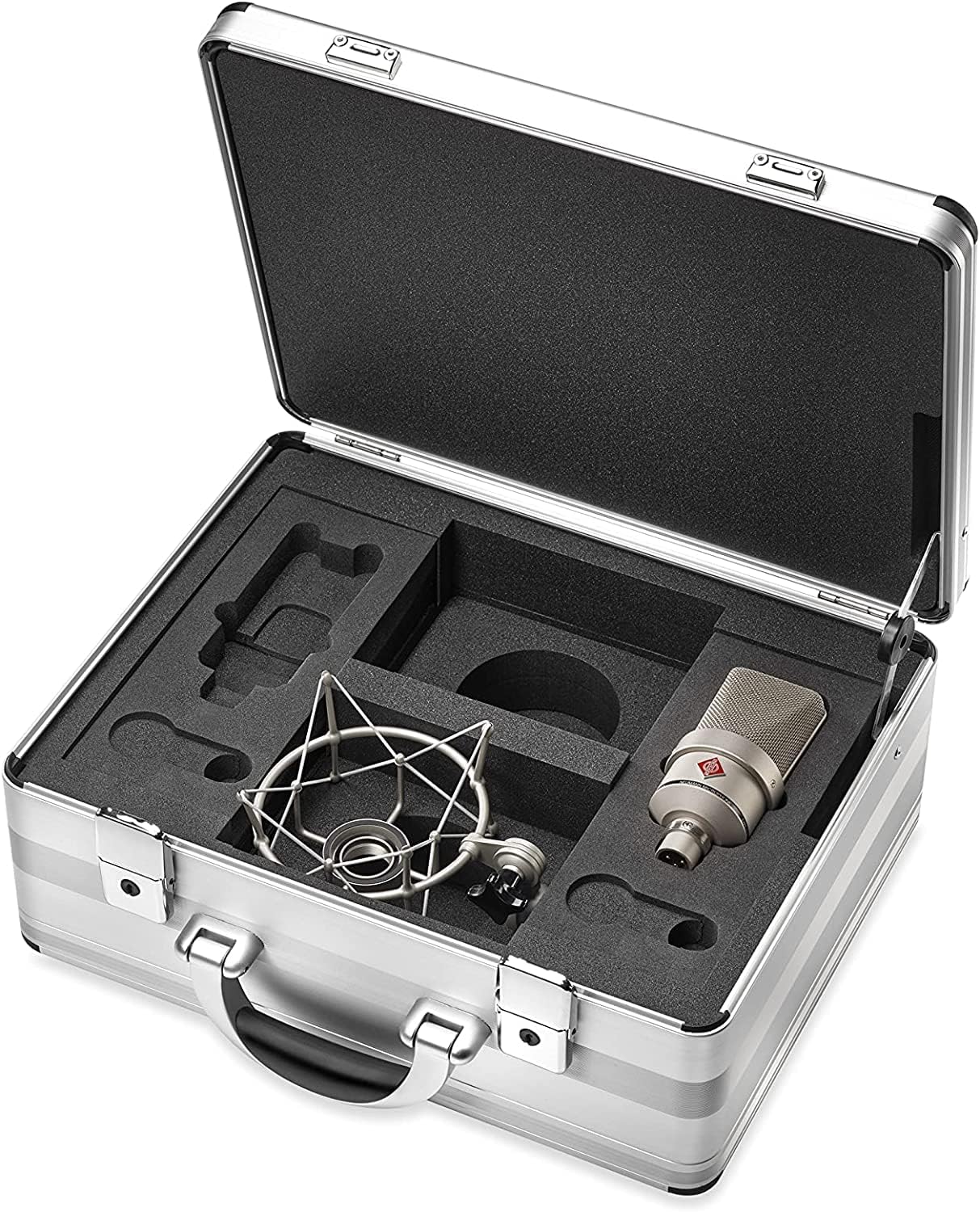

Neumann TLM-103-SET Condenser Microphone with EA 1 Shockmount and Aluminum Case
The TLM 103 has quickly become one of the biggest successes in Neumann’s history. Its pristine, clear sound is a modern update on the classic U87. The TLM 103 is a transformerless cardioid condenser microphone with a gentle presence boost for a stunningly direct sound with breathtaking definition and ultra low noise.
Features:
- Large diaphragm capsule derived from the classic U 87 microphone
- Balanced sound with enhanced presence
- Consistent cardioid pattern
- Transformerless circuitry with high SPL capability
- Extremely low self-noise: only 7 dB-A
Specifications:
- Acoustical operating principle: Pressure gradient transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz - 20 kHz
- Sensitivity at 1 kHz into 1 kOhm: 23 mV/Pa = –32.5 dBV ± 1 dB
- Rated Impedance: 50 Ohms
- Rated load impedance: 1 kOhms
- Equivalent noise level, CCIR: 17.5 dB
- Equivalent noise level, A-weighted: 7 dB-A
- Maximum SPL for THD 0.5%: 138 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL): 76.5 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 87 dB
- Maximum output voltage: 13 dBu
- Supply voltage (P48, IEC 61938): 48 V ± 4 V
- Current consumption (P48, IEC 61938): 3 mA
- Matching connector: XLRF 3-pin
- Weight: approx. 450 g
- Diameter: 60 mm
- Length: 132 mm
- Acoustical operating principle: Pressure gradient transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz - 20 kHz
- Sensitivity at 1 kHz into 1 kOhm: 23 mV/Pa = –32.5 dBV ± 1 dB
- Rated Impedance: 50 Ohms
- Rated load impedance: 1 kOhms
- Equivalent noise level, CCIR: 17.5 dB
- Equivalent noise level, A-weighted: 7 dB-A
- Maximum SPL for THD 0.5%: 138 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL): 76.5 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 87 dB
- Maximum output voltage: 13 dBu
- Supply voltage (P48, IEC 61938): 48 V ± 4 V
- Current consumption (P48, IEC 61938): 3 mA
- Matching connector: XLRF 3-pin
- Weight: approx. 450 g
- Diameter: 60 mm
- Length: 132 mm
