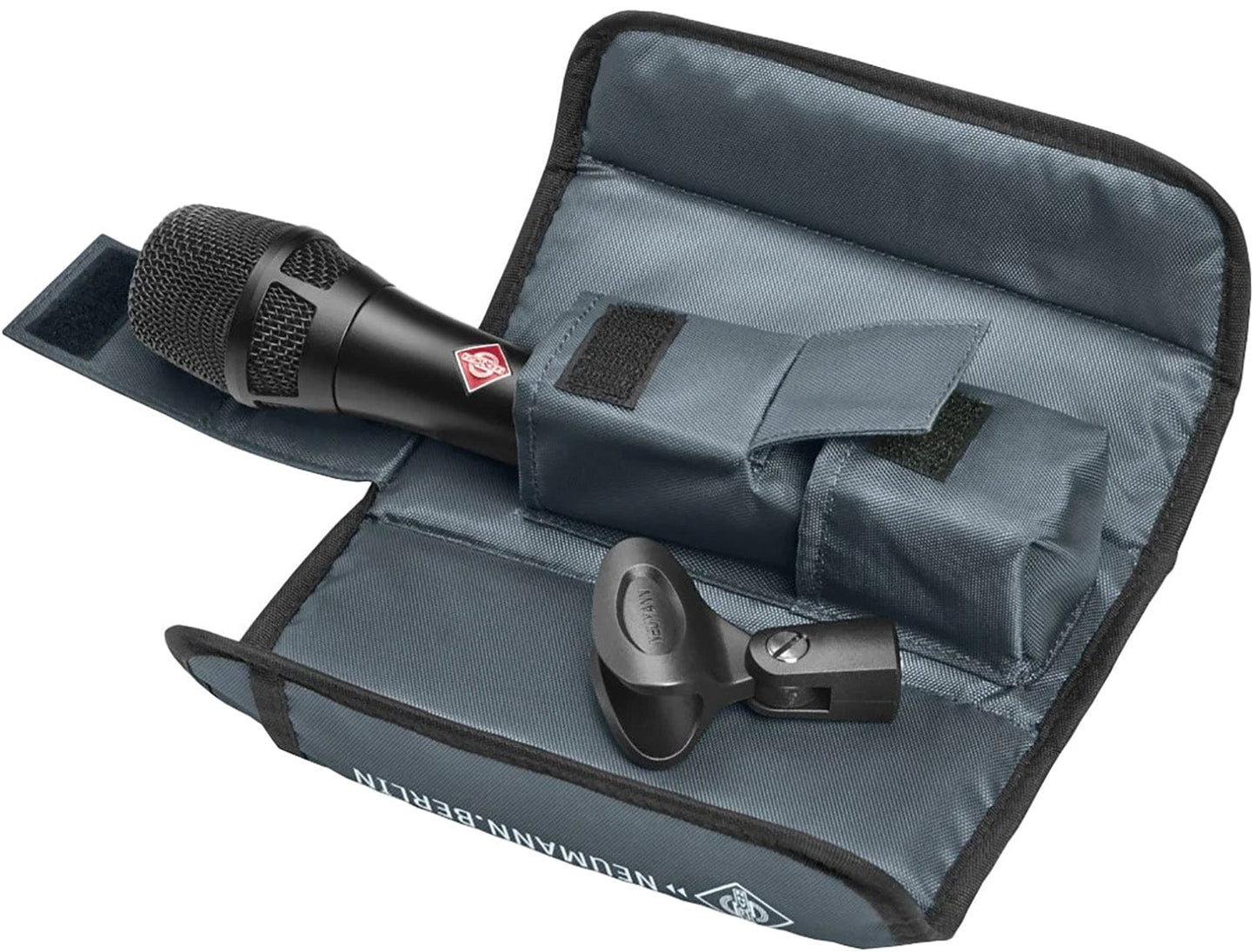

Neumann KMS-105-BK K 105 Capsule Supercardioid Handheld Microphone with KMS Pouch / SG 105 - Black
The KMS 105 is a studio grade vocal microphone for stage use. Its precision manufactured condenser capsule offers true Neumann sound quality, combined with all the virtues of a rugged stage microphone: excellent pop protection, low handling noise, enormous SPL capability, and high feedback resistance, thanks to its tight supercardioid pattern.
Features:
- Tight supercardioid pattern without off-axis coloration
- Unaffected by extreme sound pressure levels
- Rugged construction
- Feedback resistant
- Built-in pop screen
- Very low handling noise
Specifications:
- Acoustical Operating Principle: Pressure gradient transducer
- Directional Pattern: Supercardioid
- Frequency Range: 20Hz - 20kHz
- Sensitivity at 1kHz into 1kΩ: 4.5mV/Pa
- Rated Impedance: 50Ω
- Rated Load Impedance: 1 kΩ
- Equivalent Noise Level, CCIR: 28dB
- Equivalent Noise Level, A-Weighted: 18dB-A
- Signal-to-Noise Ratio, CCIR (rel. 94dB SPL): 66dB
- Signal-to-Noise Ratio, A-Weighted (rel. 94dB SPL): 76dB
- According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
- Maximum SPL for THD 0.5%: 150dB
- Measured as equivalent elec. input signal
- Maximum Output Voltage: 12dBu
- Dyn. range of the mic. amplifier (A-weighted): 132dB
- Supply Voltage (P48, IEC1938): 48V +/-4V
- Current Consumption (P48, IEC1938): 3.5mA
- Matching Connector: 3-pin XLR-F
- Weight: approx. 300g
- Diameter x Length: 48 x 180mm
- Acoustical Operating Principle: Pressure gradient transducer
- Directional Pattern: Supercardioid
- Frequency Range: 20Hz - 20kHz
- Sensitivity at 1kHz into 1kΩ: 4.5mV/Pa
- Rated Impedance: 50Ω
- Rated Load Impedance: 1 kΩ
- Equivalent Noise Level, CCIR: 28dB
- Equivalent Noise Level, A-Weighted: 18dB-A
- Signal-to-Noise Ratio, CCIR (rel. 94dB SPL): 66dB
- Signal-to-Noise Ratio, A-Weighted (rel. 94dB SPL): 76dB
- According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
- Maximum SPL for THD 0.5%: 150dB
- Measured as equivalent elec. input signal
- Maximum Output Voltage: 12dBu
- Dyn. range of the mic. amplifier (A-weighted): 132dB
- Supply Voltage (P48, IEC1938): 48V +/-4V
- Current Consumption (P48, IEC1938): 3.5mA
- Matching Connector: 3-pin XLR-F
- Weight: approx. 300g
- Diameter x Length: 48 x 180mm
