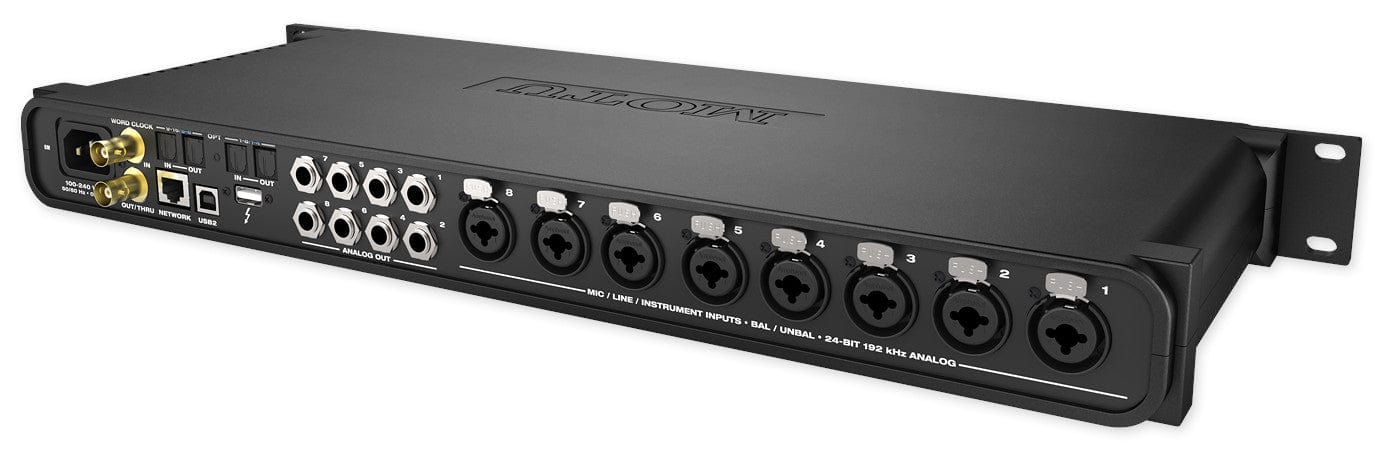

Motu MOTU8M 8-Channel Microphone Preamp & Computer Interface w/AVB


Superb audio quality, the balanced TRS analog outputs produce 123 dB dynamic range and -110 dB THD+N (0.0003%) at -1 dBFS, Unweighted, 1 kHz. Eight XLR/TRS combo inputs with individual preamps/pad/48V power, 8 balanced/unbalanced TRS analog outs, and 2 x 8-channel ADAT optical ports for 24 inputs and 26 outputs. Flexible mic/guitar inputs. Eight combo jacks provide balanced analog input, hi-Z 1/4” guitar input or XLR mic input with individual phantom power and pad.

Precision Digital Trim™ Digitally controlled analog preamp gain provides accurate adjustments in 1 dB increments from either the front panel controls or web app software, with the ability to save gain settings.

V-Limit™ overload protection. Hardware-based input limiter on the mic/guitar inputs prevents digital clipping and distortion from overloaded signal levels up to +9 dB over zero.

Universal connectivity. Connects to a computer with Thunderbolt, standard AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.

On-board DSP with mixing and effects. Flexible 48-input digital mixer modeled after large format mixing consoles, with 12 stereo busses and DSP effects, including reverb, 4-band EQ, gate, and compression.

Add a 2nd MOTU AVB interface (1248, 8M or 16A) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately). Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (hundreds of meters). Stream hundreds of audio channels among devices and computers on the network.

Flexible, matrix-style audio routing and splitting for any analog or digital input, computer channel or network stream to any other output, computer, or network device. Split any single input to unlimited multiple output destinations. Record and monitor up to 128 networked audio channels in and out, simultaneously, through the Thunderbolt connection to a host computer.

Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.

Connect an Apple Airport™ or other Wi-Fi router directly to the 8M with a standard Ethernet cable and control the 8M's powerful mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing. Connect outboard digital processors, digital mixers or other gear. 16 channels at 44.1/48 kHz or 8 channels at 88.2/96 kHz. The large backlit 324 x 24 LCD lets you view all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.

Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Analog inputs 8 x XLR/TRS combo-style mic/line/instrument inputs
Preamp gain: 0 to +53 dB (digitally controlled)
TRS max level with pad: +17 dbU (V-limit at +7)
Analog outputs 8 x 1/4" TRS line out (balanced, DC coupled)
Max level: +20 dBu (digitally adjustable -4 to +20)
1 x 1/4" TRS stereo headphone
Digital I/O 2 banks (16 ch) of ADAT optical at 1x sample rates
1 bank (8 ch) of SMUX optical at 2x sample rates
Stereo TOSLink (optical S/PDIF) on Bank A (optional)
Total I/O 24 inputs and 26 outputs (50 total) at 1x sample rates
16 inputs and 18 outputs (34 total) at 2x sample rates
8 inputs and 10 outputs (18 total) at 4x sample rates
Computer I/O 1 x Thunderbolt (compatible with 1 and 2)
1 x USB 2.0 audio class compliant
      USB 3.0 and iOS compatible
1 x AVB Ethernet (requires OS X Yosemite)
Computer I/O channels Thunderbolt (44.1 to 96 kHz): 128 in/out
Thunderbolt (176.4 to 192 kHz): 64 in/out
USB 2.0 (44.1 to 48 kHz): 64 in/out
USB 2.0 (88.2 to 96 kHz): 32 in/out
USB 2.0 (176.4 to 192 kHz): 24 in/out
AVB Ethernet: 16 to 128 in/out, depending on
      host computer speed
Sync I/O 1 x word clock in
1 x word clock out
Network I/O 1 x RJ45 AVB/TSN Ethernet (1 Gbps)
AVB streams
(8 channels per stream)
16 in / 16 out @ 44.1 or 48 kHz
16 in / 16 out @ 88.2 or 96 kHz
8 in / 8 out @ 176.4 or 192 kHz
Headphone 1 x 1/4" TRS stereo phone (assignable)
Phantom power 8 x individual +48V
Front panel 1 x 1/4" TRS headphone output
1 x digital rotary encoder • phone volume
8 x digital rotary encoders • mic preamp gain
16 x switches • (8) Pad and (8) 48V Phantom switch
324 x 24 pixel LCD for level meters / menu nav
1 x AC power switch
Power International 100-240V autoswitching supply
50-60 Hz • 0.5A max
Dimensions
and weight
(width x depth x height, enclosure only)
19 x 7 x 1.75 inches
48.3 x 17.75 x 4.5 cm
4.6 lbs / 2.08 kg
with rack brackets removed:
17.25 inches (43.8 cm) wide
4.5 lbs / 2.04 kg
