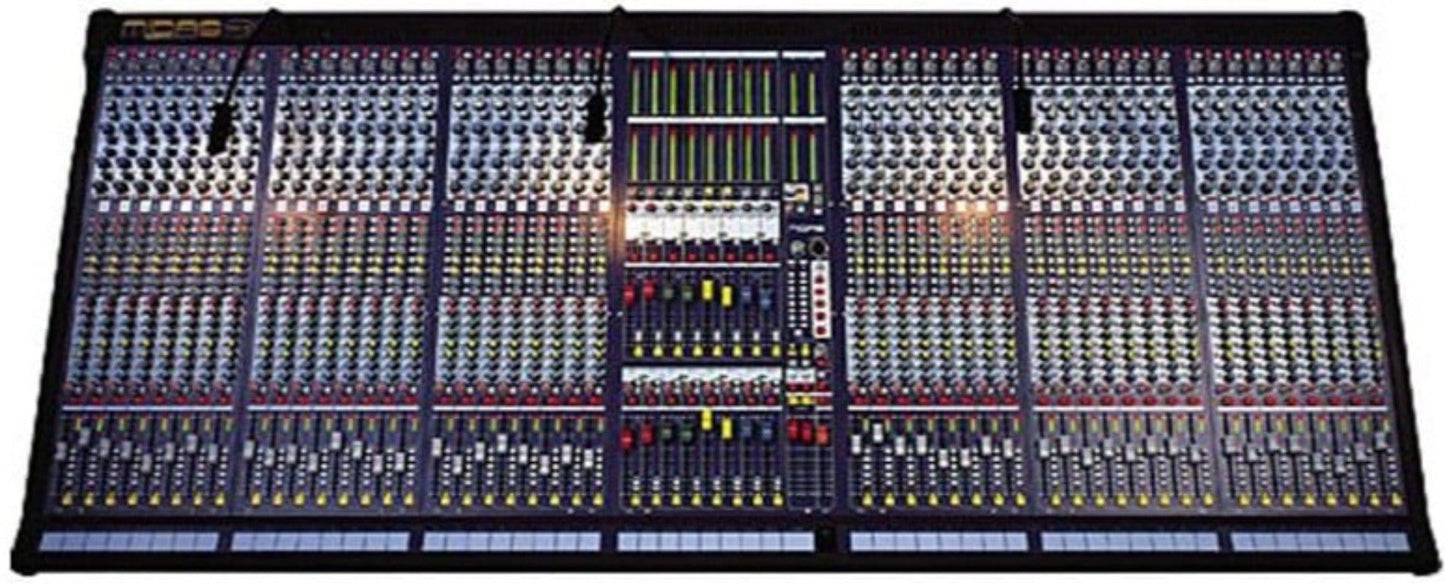

Midas SIENA 560 56-Channel Mixing Console
Siena brings all of Midas’ knowledge and experience in building dual-purpose consoles, such as the industry-leading Heritage 3000 and the now-legendary XL3, and offers all of these benefits in a compact package. Siena has been designed to both compliment and expand the ground-breaking Verona concept. Built on the highly successful, proven Verona platform, the Siena represents a combination of superb audio performance, and increased functionality, creating a new, class-leading, dual-purpose console.
Features:
- Premium Quality Preamp
- Direct Outputs
- Switchable Insert Points
- Swept Hpf
- Midas 4-band Swept Eq
- Prefade Mix Eq Bypass
- 16 Mix Sends/outputs
- Self-cleaning 100mm Monorail Fader
- 5 “soft-circuit” Mute Groups
- Stereo Direct Input
- Mono/stereo Changeover
- Extremely Low Noise
- Redundant Psu Capability
- Ergonomic Layout
- Talkback System
- Stereo Solo Buss With Mode Switching
- Solo Tracking System Interface
- Stereo Master Outputs
- Clear, Comprehensive Metering
Specifications:
- Total number of Inputs: 56
- Mic/Line Inputs:
- 56 Line: 1/4" Phone
- 56 Mic: 3-pin XLR
- Input Impedance:
- Mic: 1K5 Balanced
- Line: 10K Balanced
- Input Gain (all faders at 0dB):
- Mic: Continuously variable from +15dB to + 60dB
- Mic + Pad: Continuously variable from 0dB to + 45dB
- Line Inputs: Continuously variable from 0dB to + 45dB (-15dB to +30dB with pad)
- Direct: Inputs Continuously variable from + 20dB to off
- Maximum Input Level:
- Mic: + 6dBu
- Mic + Pad: + 21dBu
- Mono Channel Line: + 36dBu
- CMR at 100Hz:
- Mic (gain + 40dB): Typ 95dB
- Mic + Pad (gain 0dB): Typ 80dB
- Line (gain 0dB): Typ 80dB
- Total number of Inputs: 56
- Mic/Line Inputs:
- 56 Line: 1/4" Phone
- 56 Mic: 3-pin XLR
- Input Impedance:
- Mic: 1K5 Balanced
- Line: 10K Balanced
- Input Gain (all faders at 0dB):
- Mic: Continuously variable from +15dB to + 60dB
- Mic + Pad: Continuously variable from 0dB to + 45dB
- Line Inputs: Continuously variable from 0dB to + 45dB (-15dB to +30dB with pad)
- Direct: Inputs Continuously variable from + 20dB to off
- Maximum Input Level:
- Mic: + 6dBu
- Mic + Pad: + 21dBu
- Mono Channel Line: + 36dBu
- CMR at 100Hz:
- Mic (gain + 40dB): Typ 95dB
- Mic + Pad (gain 0dB): Typ 80dB
- Line (gain 0dB): Typ 80dB
- Mic (gain + 40dB): Typ 95dB
- Mic + Pad (gain 0dB): Typ 80dB
- Line (gain 0dB): Typ 80dB
- Mic to Mix (gain + 40dB): + 0dB to - 1dB
- Mic EIN ref. 150 Ohms (gain + 60dB) - 129dBu
- Summing Noise (48 channels routed with faders down): - 80dB
- Line to Mix Noise (48 channels routed at 0dB, pan centre): - 75dB
- Channel to Channel: < - 100dB
- Mix to Mix: < - 85dB
- Channel to Mix: < - 85dB
- Maximum Fader attenuation: > 100dB
- Maximum Mute attenuation: > 100dB
- All Line Outputs:
- 50 Ohms Balanced
- Source to drive > 600 Ohms
- Headphones: To drive > 100 Ohms
- All Line Outputs: + 21dBu
- Headphones: + 21dBu
- Mic: - 60dBu to 0dBu
- Line: 0dBu
- Headphones: + 10dBu
- Hi pass slope: 12dB / Oct.
- Hi pass frequency: Continuously variable - 3dB point from 20Hz to 400Hz
- Treble Gain:
- Continuously variable + 15dB to - 15dB
- Centre detent = 0dB
- Treble Freq.:
- Continuously variable - 3dB point from 2K to 20K
- Hi Mid Gain:
- Continuously variable + 15dB to - 15dB
- Centre detent = 0dB
- Hi Mid Freq.: Continuously variable centre from 400Hz to 8K
- Hi Mid Bandwidth: 1 Oct.
- Lo Mid Gain:
- Continuously variable + 15dB to - 15dB
- Centre detent = 0dB
- Lo Mid Freq:. Continuously variable centre from 100Hz to 2K
- Lo Mid Bandwidth: 1 Oct.
- Bass Gain:
- Continuously variable + 15dB to - 15dB
- Centre detent = 0dB
- Bass Freq.: Continuously variable - 3dB point from 20Hz to 400Hz
