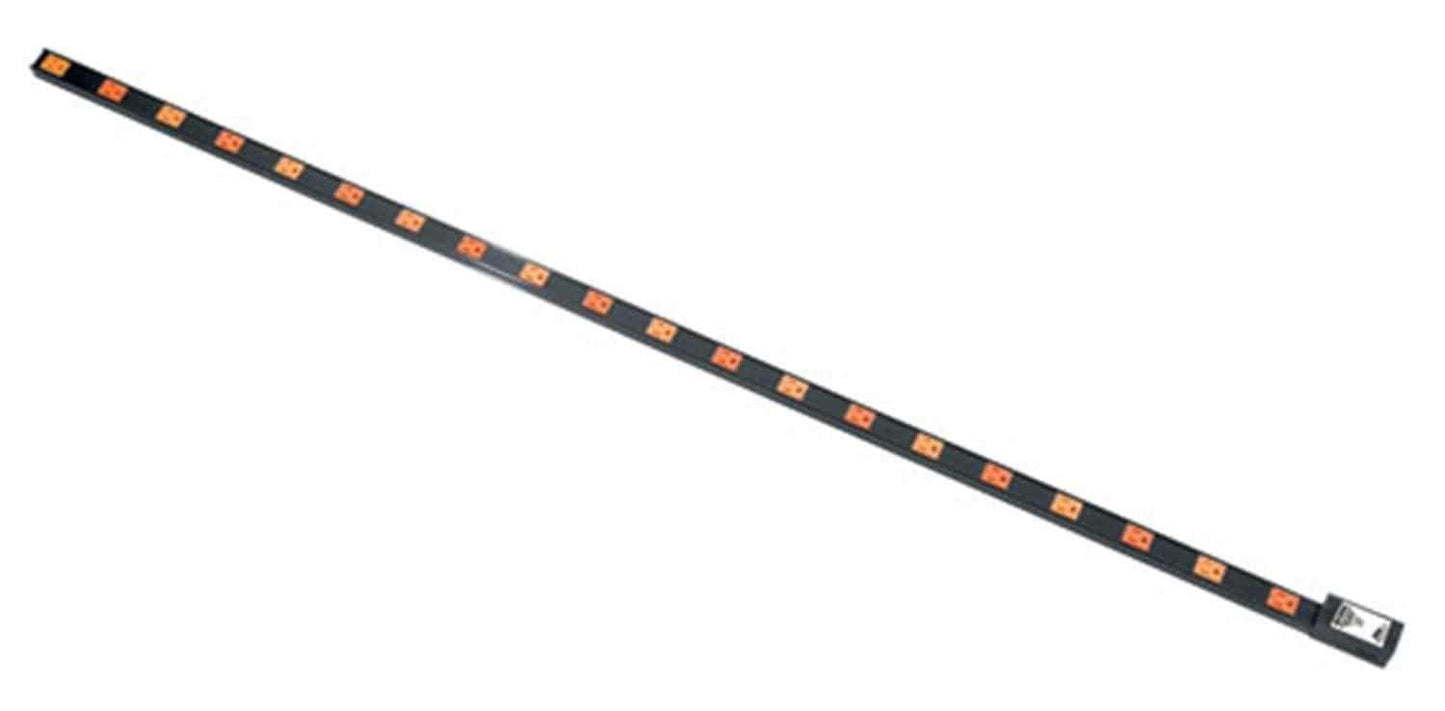

MID ATLANTIC PDT2X1015 15AMP DUAL CIRCUIT PWR STRP
PDT Series Thin Power Strips take up minimal space inside a rack and feature a unique design that allows for isolated ground configurability. Dual circuit models can be configured to operate as a single circuit and all models are factory assembled for easy installation.
Features:
- Small size uses a minimum of space
- Dual circuit models can be field configured to operate as a single circuit
- Unique design allows for isolated ground configurability in the field
- Saves time - ships fully assembled with all needed accessories including cable management clips
- Outlets are spaced to provide enough room for plug-in power supplies
- Top feed models with J-Box on the top of the power strip, available to meet code requirements in select areas
- Easy to order - a single part number includes all needed accessories
- Mounts easily with provided clips
- Prewired with 12-gauge wiring and can be attached to a 20 Amp branch circuit
- UL Listed in the US and Canada
Specifications:
- Circuit: 15 Amp (1 or 2 configurable)
- Termination: J-Box
- # of Outlets: 20
- OD Length: 72.75"
- UL standard #5 Multi-Outlet Assemblies (File #E174334)
- J-Box/ Cord Location: bottom
- Isolated Ground: field configurable
