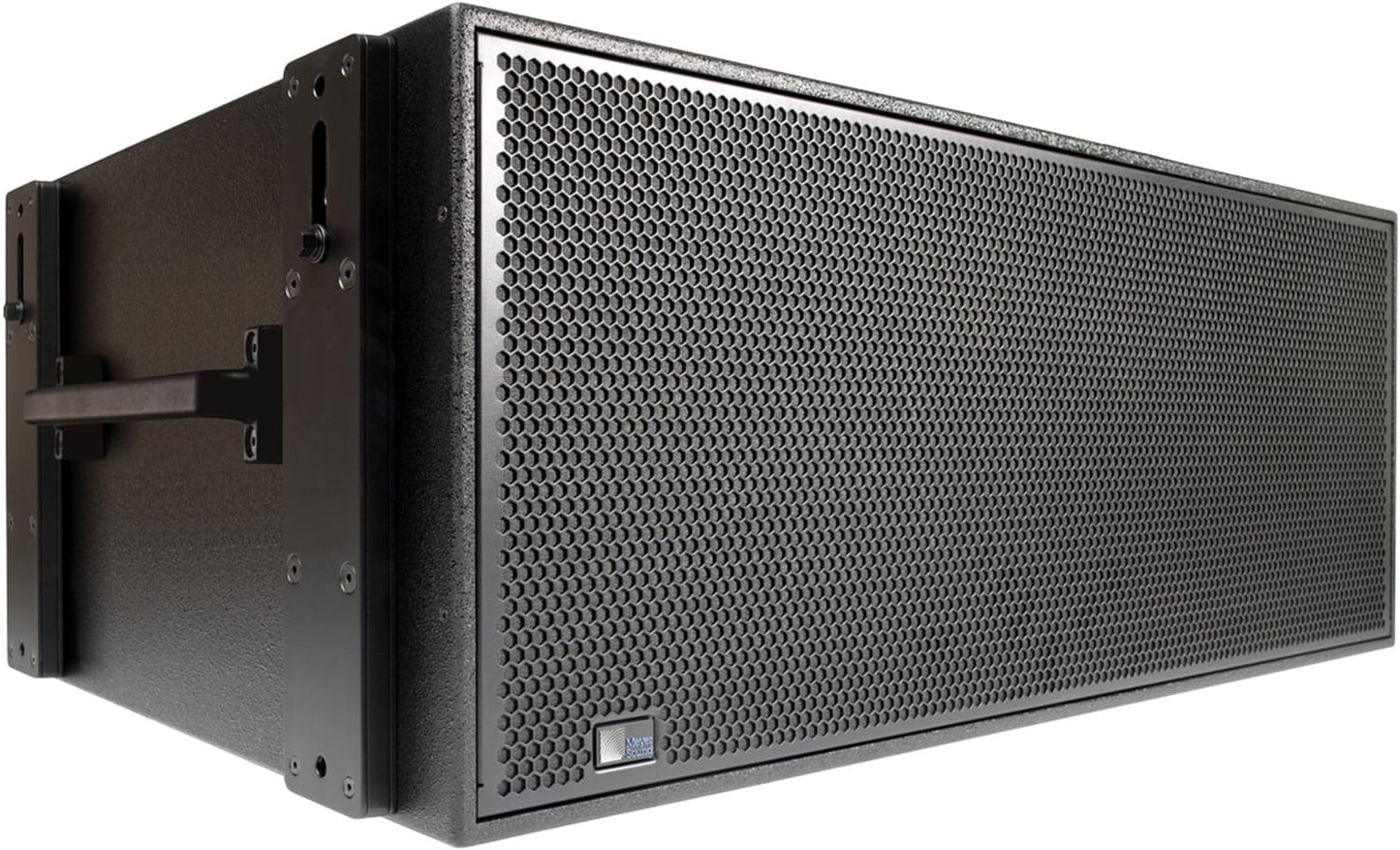

Meyer Sound VLFC Very-Low Frequency Powered Loudspeaker
The VLFC very low‑frequency control element is a self‑powered loudspeaker defined by its sonic linearity and unique ability to reproduce extremely low‑frequency signals at high continuous levels with very low distortion. This very low frequency response, coupled with exceptional headroom and optimized rigging options, makes the VLFC an incredible tool for applications requiring very low frequencies to enhance the audience experience.
Specifications:
- Acoustical:
- Frequency Response2: 13 – 30Hz ±4dB
- Transducer:
- Low Frequency: Two 18″ cone drivers
- Audio I/O:
- Connectors3: XLR 3-pin or 5-pin female input with male loop output
- Amplifier:
- Type: 2-channel complementary MOSFET output stages (Class AB/H bridged)
- AC Power:
- Connectors: powerCON 32-input
- Safety Rated Voltage Range: 208–235 V AC, 50/60 Hz (Turn-on/off Points 165–264 V AC)
- Current Draw4: Max Long-Term Continuous Current (>10 sec) 10.5 A RMS (230 V AC) Burst Current (<1 sec) 18 A RMS (230 V AC)
- RMS Network:
- Equipped with 2-conductor, twisted-pair network, reporting all amplifier operating parameters to host computer
- Physical:
- Dimensions (WHD): 55″ x 20-13/32″ x 33″ (1,397 x 518 x 838 mm)
- Dimensions w/Rigging (WHD): 55″ x 20-13/32″ x 33″ (1,397 x 518 x 838 mm)
- Weight / Weight w/ Rigging: 298 lbs. (135.2 kg) / 332 lbs. (150.7 kg)
- Enclosure: Multi-ply hardwood with black textured finish
- Protective Grille: Powder-coated, hex-stamped steel with acoustical black mesh
- Rigging: Optional MRK-1100 rigging kit with captive GuideALinks for ground-stacked, flown, and cardioid configurations; optional MTG-1100 top grid for flown arrays; optional MCF-1100 caster frame for transporting stacks of up to three units.
