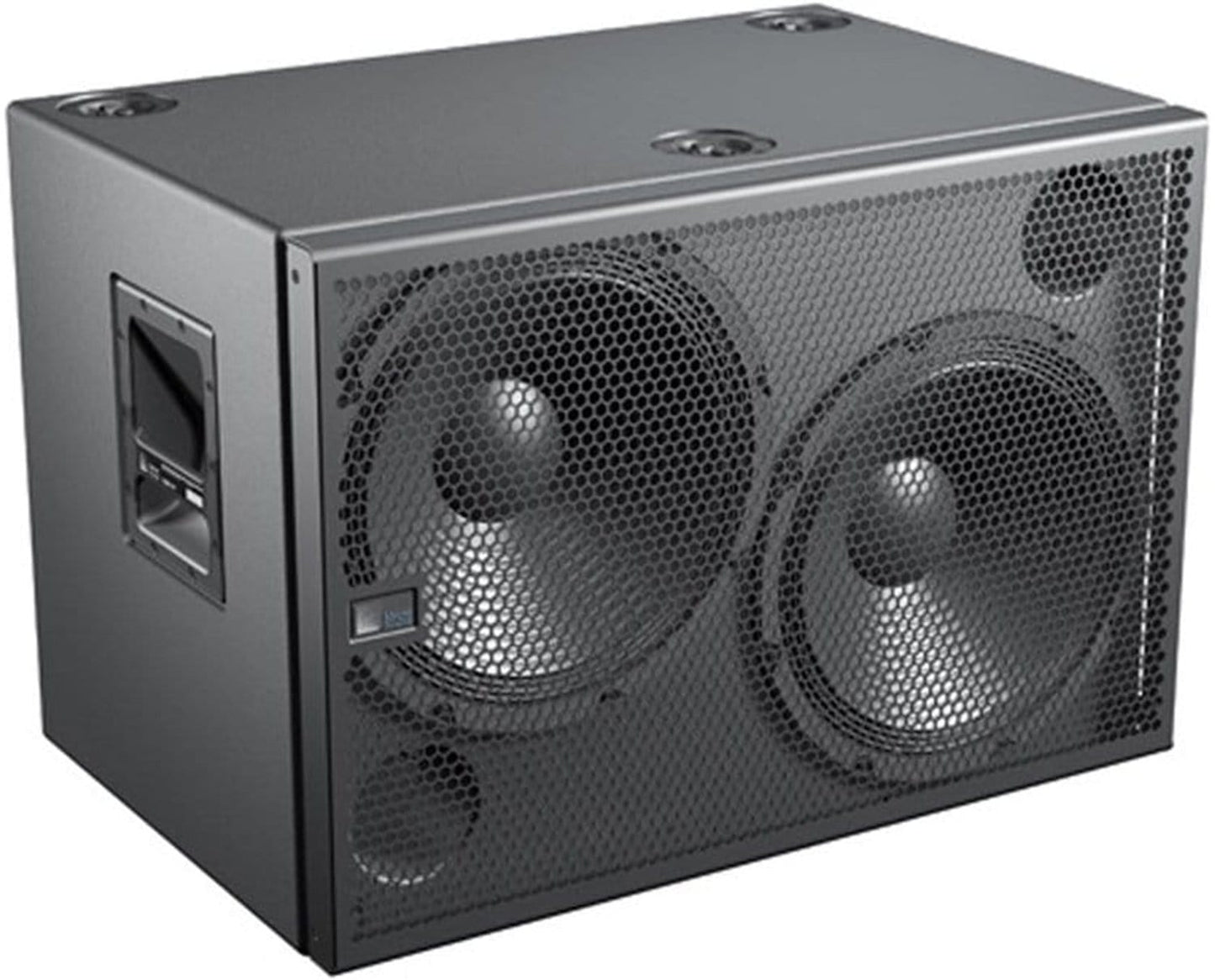

Combining advanced loudspeaker technology with equally advanced power capabilities, the Meyer Sound USW-1P self-powered subwoofer provides flat, low-frequency response from 35 Hz to 180 Hz. The USW-1P performs seamlessly within a full range system, in conjunction with UPA-1P, UPA-2P and UPJ-1P loudspeakers. The USW-1P is also fully compatible with other Meyer Sound self-powered loudspeakers.

Features:

• Classic design configuration with proven heritage from USW-1 model
• High peak power capability for excellent transient reproduction
• Built-in crossover allows for simple daisy chain signal distribution and eliminates the need for external crossovers
• Compact cabinet satisfies a broad range of installation requirements
• Flat phase response for optimal crossover to mid/high systems

Specifications:

• Acoustical
  • Operating Frequency Range¹: 32 Hz - 200 Hz
  • Frequency Response²: 35 Hz - 180 Hz ±4 dB
  • Phase Response: 45 Hz - 155 Hz ±30°
  • Maximum Peak SPL³: 135 dB
  • Dynamic Range: >110 dB
• Coverage⁵
  • 360° single unit; varies for multiple units, depending on number and configuration
• Transducers
  • Low Frequency:
    • Two 15" cone drivers
    • Nominal impedance: 4 Ω
    • Voice coil size: 2"
    • Power handling capability: 400 W
• Audio Input
  • Type: Differential, electronically balanced
  • Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection
  • Connectors: Female XLR input with male XLR loop output or VEAM all-in-one connector (integrates AC, audio, and network)
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring:
    • Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal – (optional polarity reversal switch)⁶
    • Case: Earth ground and chassis
  • DC Blocking: Differential DC blocking up to maximum common mode voltage
  • CMRR: >50 dB, typically 80 dB (50 Hz – 500 Hz)
  • RF Filter: Common mode: 425 kHz; Differential mode: 142 kHz
  • TIM Filter: <80 kHz, integral to signal processing
  • Nominal Input Sensitivity: 0 dBV (1.0 V rms, 1.4 V peak) continuous is typically the onset of limiting for noise and music
  • Input Level: Audio source must be capable of producing +20 dBV (10 V rms, 14 V peak) into 600 Ω in order to produce maximum peak SPL over the operating bandwidth of the loudspeaker
• Amplifier
  • Two-channel complementary MOSFET output stages (class AB/bridged)
  • Output Power⁶: 550 W total
  • THD, IM, TIM: <.02%
  • Load Capacity: 4 Ω both channels
  • Cooling: Convection; 24 V DC output for optional external fan
• AC Power
  • Connector: PowerCon or VEAM
  • Voltage Selection: Automatic, continuous range from 90 V AC - 265 V AC
  • Safety Agency Rated Operating Range: 100 V AC - 240 V AC; 50/60 Hz
  • Turn-on and Turn-off Points: 90 V AC on, no turn-off, only fuse protected above 265 V AC⁷
  • Current Draw: Idle Current: .0.25 A rms (115 V AC); 0.13 A rms (230 V AC); 0.3 A rms (100 V AC)
  • Maximum Long-Term Continuous Current (>10 sec): 2.8 A rms (115 V AC); 1.4 A rms (230 V AC); 3.2 A rms (100 V AC)
  • Burst Current (<1 sec): 3.2 A rms (115 V AC); 1.6 A rms (230 V AC); 3.7 A rms (100 V AC)
  • Ultimate Short-Term Peak Current Draw: 5.0 A pk (115 V AC); 2.5 A pk (230 V AC); 5.8 A pk (100 V AC)
  • Inrush Current: <9 A pk (115 V AC and 230 V AC)
• RMS Network (optional)
  • Equipped with two-conductor twisted-pair network, reporting all operating parameters of amplifiers to system operator’s host computer
• Physical
  • Dimensions: 31.00" w x 21.56" h x 21.30" d (787 mm x 548 mm x 541 mm)
  • Weight: 137 lbs (62.14 kg)
  • Enclosure: Premium birch plywood
  • Finish: Black textured
  • Protective Grille: Powder-coated hex-stamped steel, foam covering
  • Rigging: Three ring and stud pan fittings (on top); working load is 420 lbs (190.51 kg), based on a 5:1 safety factor
