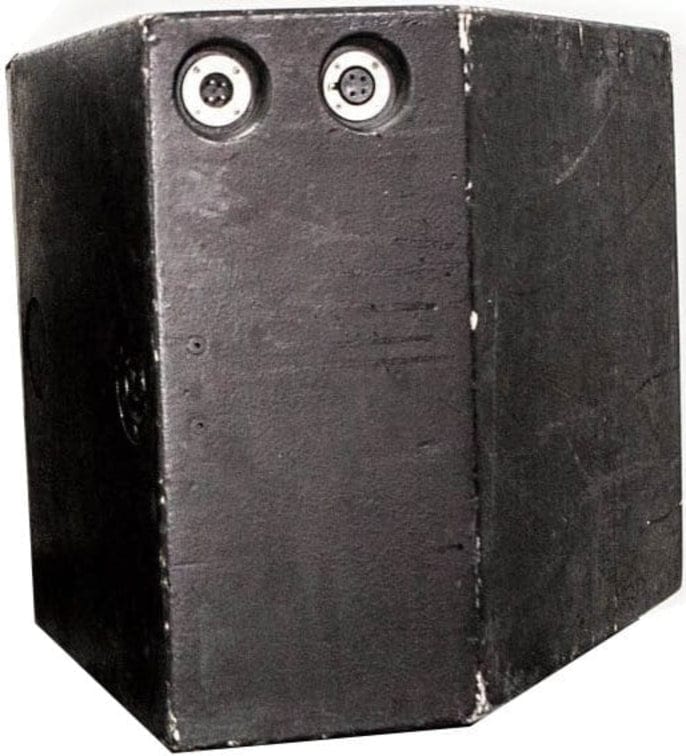

Meyer Sound USM-1 Stage Monitor Loudspeaker Pair w/ Road Case

Meyer Sound USM-1 Stage Monitor Loudspeaker Pair w/ Road Case

The USM-1 is a high-powered, wide-coverage loudspeaker for professional stage monitoring applications. Specifically designed for touring reinforcement, the accurate, rugged USM-1 is a biamplified system consisting of a proprietary 15-inch low-frequency driver in a vented enclosure, and a 70-degree high-frequency horn with 2-inch (throat diameter) driver. The USM-1's drivers provide exceptional efficiency and power handling, with low distortion for maximum clarity. Its very flat frequency response allows control of feedback at high stage levels.

Features:

• High gain-before-feedback
• Wide horizontal coverage
• Flat frequency response
• Rugged and reliable

Specifications:

• Acoustical
  • Frequency Response: 40-18k Hz +4 dB
  • Maximum SPL:
    • Continuous: 130 dB
    • Peak: 139 dB
    • Maximum Peak (Music Signal): 144 dB
  • HF Coverage, -6dB points: 70° horizontal x 60° vertical
  • Acoustical Crossover Frequency: 900 Hz
• Loudspeaker
  • Transducers:
    • Low Frequency: MS-15 15-inch cone driver, 12 ohms
    • High Frequency: MS-2001A 2-inch throat compression driver, 8 ohms
  • High Frequency Horn: 70 degree modified radial
  • HF Network: DC blocking capacitor
  • Enclosure: 2.3 cu. ft. vented, multi-ply Finnish birch
  • Finish: Black textured
  • Protective Grill: Hex perforated metal, powder coated, charcoalgrey foam covering
  • Connector: EP-4 male, EP-5 male (Europe only)
  • Rigging (optional): Aircraft pan fittings or 3⁄8"-16 or M10 x 1.5 nut plates
  • Physical Dimensions: 21" W x 24 1⁄4" H x 18 1⁄4" D
  • Weight: 82 lbs. (37.3 kg)
