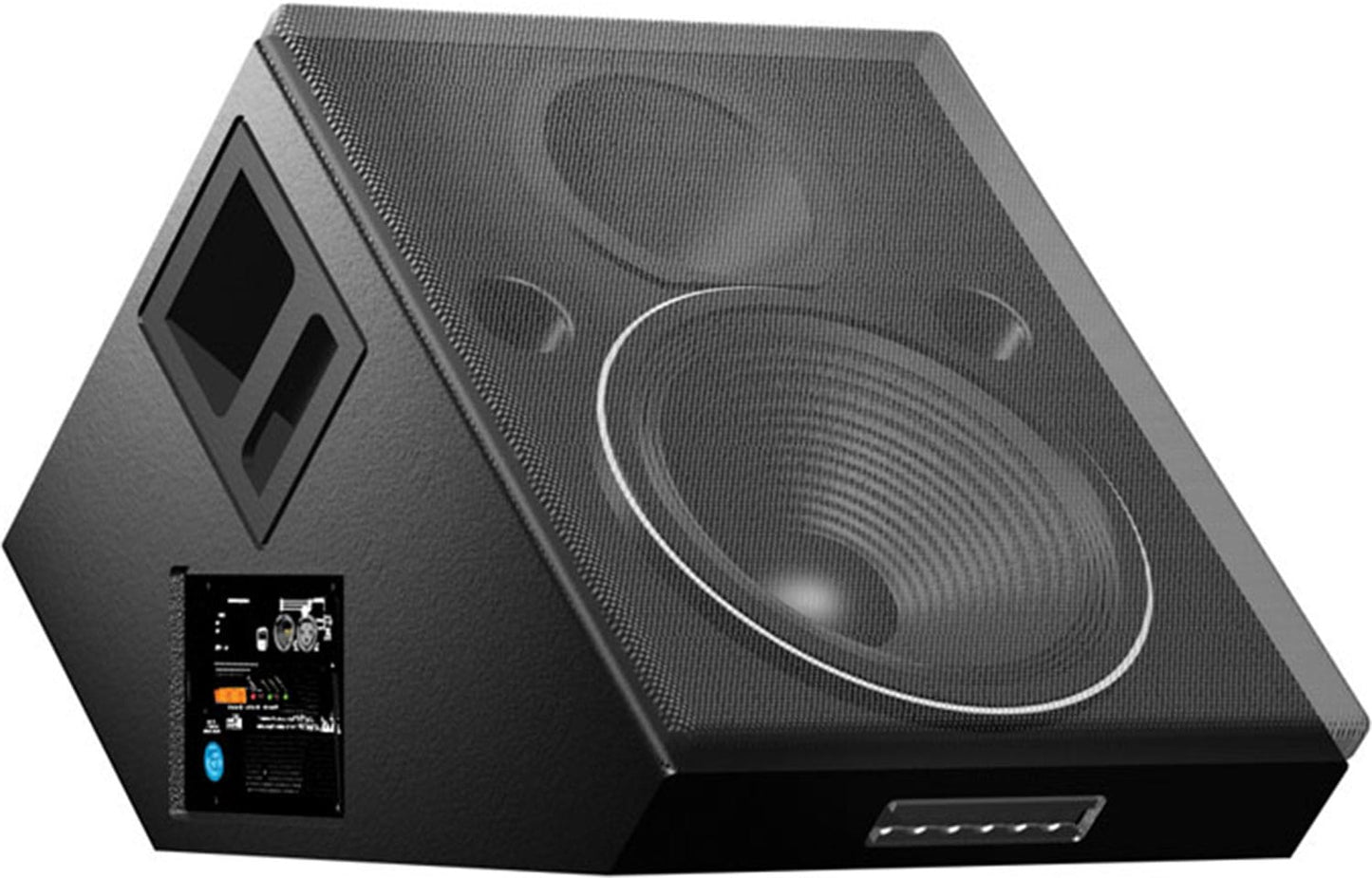

Meyer Sound UM-1P Powered Wedged Stage Monitor

Meyer Sound UM-1P Powered Wedged Stage Monitor

The UM-1P and the UM-100P self-powered stage monitors are designed for high-level, full-bandwidth monitoring, cleanly reproducing stage mixes that include vocals and musical instruments. These units provide efficient response down to 60 Hz. The compact enclosure houses a 12-inch cone driver and a 3-inch-diaphragm compression driver. The combination of high-performance drivers and perfectly matched drive electronics yields flat amplitude and phase response plus near-perfect impulse response over the full audio bandwidth — with benefits including lower susceptibility to feedback. Maximum SPL is 133 dB at one meter, with exceptionally low distortion.

Features:

• Flat frequency and phase response afford high levels of gain before feedback
• The UM-1P offers a symmetrical, constant-Q horn for precise coverage with minimal interaction between adjacent units
• The UM-100P offers a wide-coverage constant-Q horn, providing maximum freedom of movement for performers
• High peak power ensures excellent transient response
• Low-profile cabinet preserves sight lines
• Built-in precision electronics eliminate the need for external crossovers and amplifiers

Specifications:

• Acoustical:
  • Operating Frequency Range: 60 Hz - 18 kHz
  • Frequency Response: 65 Hz - 17 kHz ±4 dB
  • Phase Response: 500 Hz - 16 kHz ±35°
  • Maximum Peak SPL: 133 dB
  • Dynamic Range: >110 dB
• Coverage: UM-1P: 45° x 45°; UM-100P: 100° horiz. x 40° vert.
• Crossover: UM-1P: 1000 Hz; UM-100P: 1200 Hz
• Transducers:
  • Low Frequency:
    • One 12" cone driver
    • Nominal impedance: 2 Ω Voice coil size: 3"
    • Power-handling capability: 400 W (AES)
  • High Frequency:
    • One 3" compression driver
    • Nominal impedance: 16 Ω Voice coil size: 3"
    • Diaphragm size: 3"
    • Exit size: 1.4" throat
    • Power-handling capability: 100 W (AES)
• Audio Input:
  • Type: Differential, electronically balanced
  • Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection
  • Connectors: Female XLR input with male XLR loop output or VEAM all-in-one (integrates AC, audio and network)
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring:
    • Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal - (optional polarity reversal switch)
    • Case: Earth ground and chassis
  • DC Blocking: Differential DC blocking up to maximum common mode voltage
  • CMRR: >50 dB, typically 80 dB (50 Hz – 500 Hz)
  • RF Filter: Common mode: 425 kHz; Differential mode: 142 kHz
  • TIM Filter: <80 kHz, integral to signal processing
  • Nominal Input Sensitivity: 0 dBV (1 V rms, 1.4 V pk) continuous average is typically the onset of limiting for pink noise and music
  • Input Level: Audio source must be capable of producing a minimum of +20 dBV (10 V rms, 14 V pk) into 600 Ω to produce maximum peak SPL over the operating bandwidth of the loudspeaker
• Amplifier:
  • Type: Two-channel complementary MOSFET output stages (class AB/bridged)
  • Output Power: 550 W total
  • THD, IM, TIM: <.02>
  • Load Capacity: 2 Ω low channel, 16 Ω high channel
  • Cooling: Convection; 24 V DC output for optional external fan
• AC Power:
  • Connector: PowerCon or VEAM
  • Voltage Selection: Automatic, continuous range from 90 V AC to 265 V AC
  • Safety Agency Rated Operating Range: 100 V AC - 240 V AC; 50/60 Hz
  • Turn-on and Turn-off Points: 90 V AC on, no turn-off, only fuse-protect above 265 V AC
  • Current Draw:
    • Idle Current: 0.25 A rms (115 V AC); 0.13 A rms (230 V AC); 0.3 A rms (100 V AC)
    • Max Long-Term Continuous Current (>10 sec): 2.8 A rms (115 V AC); 1.4 A rms (230 V AC); 3.2 A rms (100 V AC)
    • Burst Current (<1 sec): 3.2 A rms (115 V AC); 1.6 A rms (230 V AC); 3.7 A rms (100 V AC)
    • Ultimate Short-Term Peak Current Draw: 5.0 A pk (115 V AC); 2.5 A pk (230 V AC); 5.8 A pk (100 V AC)
    • Inrush Current: <9 A pk (115 V AC and 230 V AC)
• RMS Network (Optional): Equipped for two-conductor, twisted-pair network, reporting amplifier operating parameters to system operator’s host computer.
• Dimensions: 16.50" w x 22.38" h x 15.44" d (419 mm x 568 mm x 392 mm)
• Weight: 77 lbs (34.93 kg)
• Enclosure: Premium birch plywood
• Finish: Black textured
• Protective Grille: Powder-coated hex-stamped steel, foam covering
