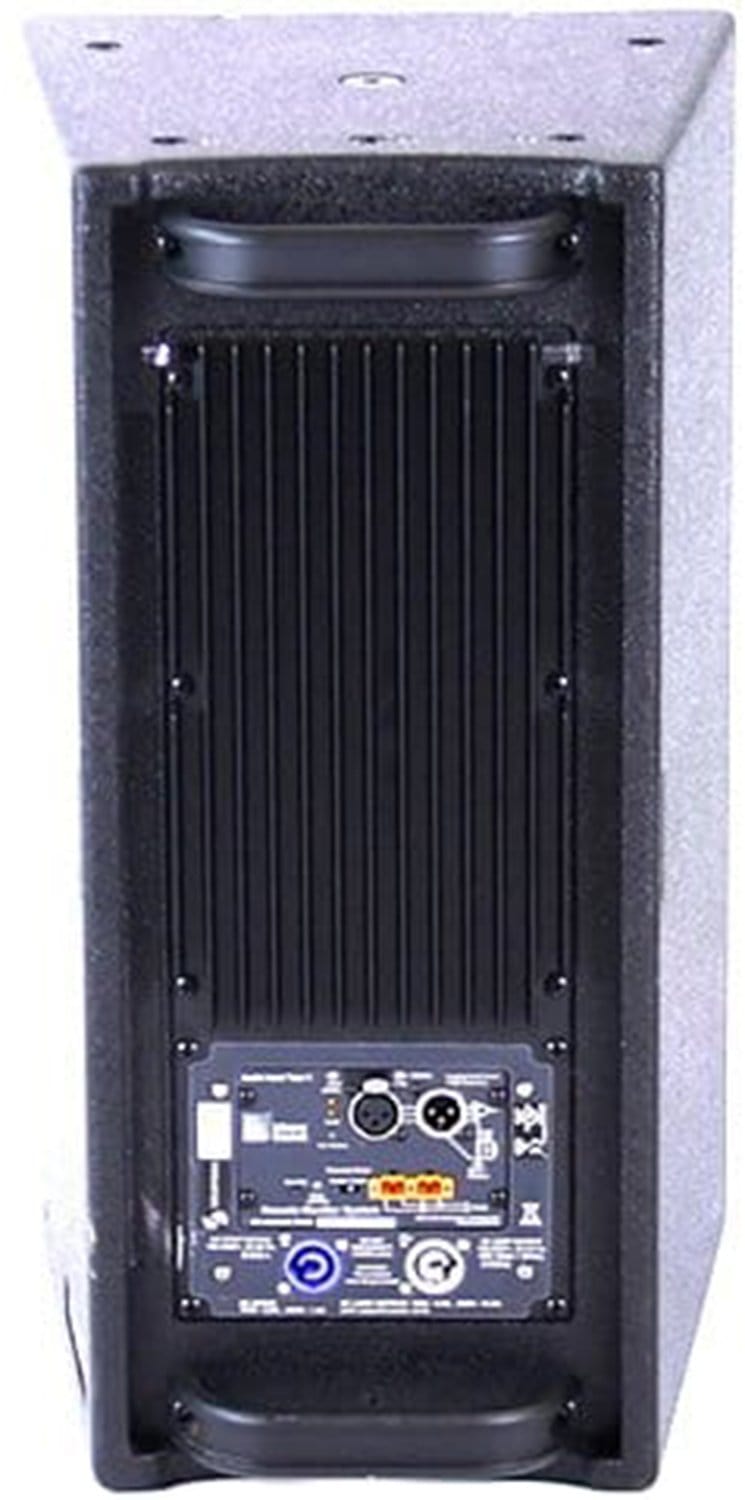

Meyer Sound ULTRA-X40 Powered Loudspeaker

Meyer Sound ULTRA-X40 Powered Loudspeaker

The ULTRA-X40 design continues the tradition of the highly successful UPA loudspeakers-so versatile they have been a universal standard in almost every application for over 35 years. From touring performances to theme parks, worship venues to Broadway shows, and lecture halls to large scale concerts, Meyer Sound technology has delivered exceptional fidelity with high power, low distortion, and uniformly predictable behavior. To this legacy, Meyer Sound incorporated technology from the popular and award-winning LEO family of loudspeakers to bring multiple enhancements to bear in the ULTRA-X40 design: An innovative, newly designed, highly efficient class D amplifier that reproduces any sound source with linearity over a wide dynamic range. Over 20 lbs (10 kgs) of weight reduction, as well as a reduction in overall size compared to the UPA loudspeakers for increased power to weight and size ratios. A concentric driver configuration with all the benefits of a coaxial driver, yet none of the disadvantages. In addition, this configuration supports directional control of frequencies down to 400 Hz. An extremely well-behaved rotatable horn designed for very precise, even coverage. This horn design, in conjunction with the concentric driver configuration, delivers the same pattern despite the orientation.

Features:

• Exceptional fidelity and surprising power capability delivered in a compact, light enclosure
• Extraordinarily flat amplitude and phase response ensures tonal accuracy and precise imaging
• Wide pattern
• Rotatable horn provides installation flexibility
• Integral stand mount and QuickFly® mounting options facilitate rigging

Specifications:

• ACOUSTICAL¹
  • Operating Frequency Range²: 55 Hz – 19.5 kHz
  • Frequency Response³: 56 Hz – 19 kHz ± 4 dB
  • Phase Response: 90 Hz – 19.5 kHz ±45°
  • Maximum SPL⁴: 138 dB
  • Linear Peak SPL⁵: 132.5 dB with 18 dB crest factor (M-noise), 130 dB (Pink Noise), 131 dB (B-noise)
• COVERAGE
  • Rotatable horn: 110° x 50°
• TRANSDUCERS
  • Low Frequency: Two 8-inch cone drivers; 4 Ω nominal impedance
  • High Frequency: One 3-inch diaphragm compression driver connected to a rotatable horn; 8 Ω nominal impedance
• AUDIO INPUT
  • Type: Differential, electronically balanced
  • Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient protection
  • Connectors: XLR 3-pin female input with male loop output; optional XLR 5-pin connector to accommodate both balanced audio and RMS signals.
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring⁶:
    • Pin 1: Chassis/earth through 1 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal –
    • Pin 4: RMS (polarity insensitive)
    • Pin 5: RMS (polarity insensitive)
    • Case: Earth ground and chassis
  • Nominal Input Sensitivity: 0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
  • Input Level: Audio source must be capable of producing of +20 dBV (10 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
• AMPLIFIER
  • Type: three-channel, Class-D
  • Total Output Power⁷: 1950 W peak
  • THD, IM, TIM: <0.02%
  • Cooling: Convection
• AC POWER
  • Connector: powerCON 20 input with loop output
  • Automatic Voltage Selection: 90–265 V AC, 50–60 Hz
  • Safety Rated Voltage Range: 100–240 V AC, 50–60 Hz
  • Turn-on and Turn-off Points: 90 V AC turn-on, no turn-off; internal fuse protection above 265 V AC
• CURRENT DRAW
  • Idle Current: 0.27 A rms (115 V AC); 0.25 A rms (230 V AC); 0.29 A rms (100 V AC)
  • Maximum Long-Term Continuous Current (>10 sec): 1.9 A rms (115 V AC); 1.0 A rms (230 V AC); 2.2 A rms (100 V AC)
  • Burst Current (<1 sec)⁸: 3.1 A rms (115 V AC); 1.5 A rms (230 V AC); 3.4 A rms (100 V AC)
  • Maximum Instantaneous Peak Current: 6.9 A peak (115 V AC); 3.4 A peak (230 V AC); 7.9 A peak (100 V AC)
  • Inrush Current: <20 A peak
