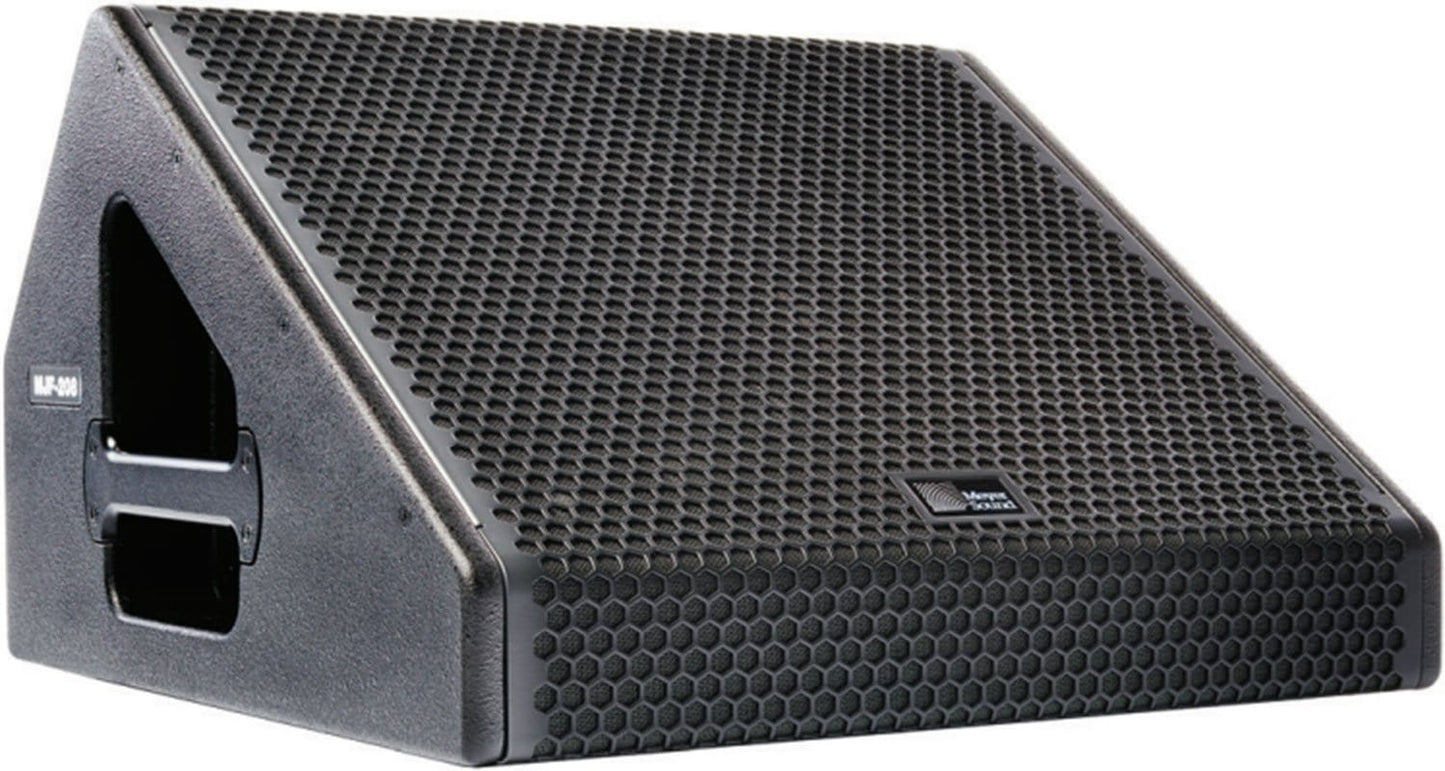

Meyer Sound MJF208 Powered Stage Monitor Speaker

Meyer Sound MJF208 Powered Stage Monitor Speaker

The MJF‑208 compact stage monitor brings the same high intelligibility and low-frequency headroom of Meyer Sound’s acclaimed MJF line of stage monitors to a lighter, more portable cabinet. The MJF‑208 is ideal for monitoring applications with minimal stage space that do not require the higher output of the MJF‑212A or MJF‑210. All three stage monitors offer the self‑powered advantages of simplified setup, operation, and consistent stage-to-stage sound, while occupying a fraction of the truck space of similar monitors that require external amplification.

Features:

• Small lightweight footprint with no external amplification occupies less stage and truck space
• Self-powered system simplifies setup and operation and ensures consistent stage-to-stage sound
• Low-profile cabinet preserves audience sight lines
• High peak power ensures excellent transient response
• Flat phase and frequency response and exceptional pattern control yield high gain before feedback

Specifications:

• ACOUSTICAL
  • Operating Frequency Range: 55 Hz – 18 kHz
  • Frequency Response: 60 Hz – 18 kHz ±4 dB
  • Phase Response: 230 Hz – 16 kHz ±45°
  • Linear Peak SPL: 129 dB with crest factor >16 dB (M-noise)7 128 dB (Pink noise), 129 dB (B-noise)
• COVERAGE
  • Horizontal Coverage: 70°
  • Vertical Coverage: 50°
• TRANSDUCERS
  • Low Frequency: Two 8-inch high-power cone drivers; 4 Ω nominal impedance
  • High Frequency: One 3-inch diaphragm compression driver; 16 Ω nominal impedance
• AUDIO INPUT
  • Type: Differential, electronically balanced
  • Maximum Common Mode Range: ±5 V DC, clamped to earth for voltage transient protection
  • Connectors: XLR 3-pin female input with male loop output; optional XLR 5-pin connector to accommodate both balanced audio and RMS signals.
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring:
    • Pin 1: Chassis/earth through 1 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal –
    • Pin 4: RMS (polarity insensitive)
    • Pin 5: RMS (polarity insensitive)
    • Case: Earth ground and chassis
  • Nominal Input Sensitivity: 0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
  • Input Level: Audio source must be capable of producing of +20 dBV (10 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
• AMPLIFIER
  • Type: Three-channel, Class-D
  • Total Output Power: 1770 W peak
  • THD, IM, TIM: < 0.02%
  • Cooling: Convection
• AC POWER
  • Connector: PowerCON 20 input with loop output
  • Automatic Voltage Selection: 90–265 V AC
  • Safety Agency Rated Voltage Range: 100–240 V AC, 50–60 Hz
  • Turn-on and Turn-off Points: 90 V AC turn-on, no turn-off; internal fuse-protection above 265 V AC
• CURRENT DRAW
  • Idle Current: 0.26 A rms (115 V AC); 0.25 A rms (230 V AC); 0.28 A rms (100 V AC)
  • Maximum Long-Term Continuous Current (>10 sec): 1.4 A rms (115 V AC); 0.8 A rms (230 V AC); 1.7 A rms (100 V AC)
  • Burst Current (<1 sec): 2.2 A rms (115 V AC), 1.1 A rms (230 V AC), 2.6 A rms (100 V AC)
  • Maximum Instantaneous Peak Current: 6.0 A peak (115 V AC), 2.9 A peak (230 V AC), 6.9 A peak (100 V AC)
  • Inrush Current: <20 A peak
• RMS NETWORK (OPTIONAL)
  • Two-conductor twisted-pair network that reports all operating parameters of amplifiers to system operator’s host computer.
• PHYSICAL
  • Dimensions: W: 18.68 in (474 mm) x H: 12.68 in (322 mm) x D: 18.60 in (472 mm)
  • Weight: 47 lb (21.3 kg)
  • Enclosure: Premium multi-ply birch with slightly textured black finish; 35° front angle
  • Protective Grille: Powder-coated, hex-stamped steel with black mesh
