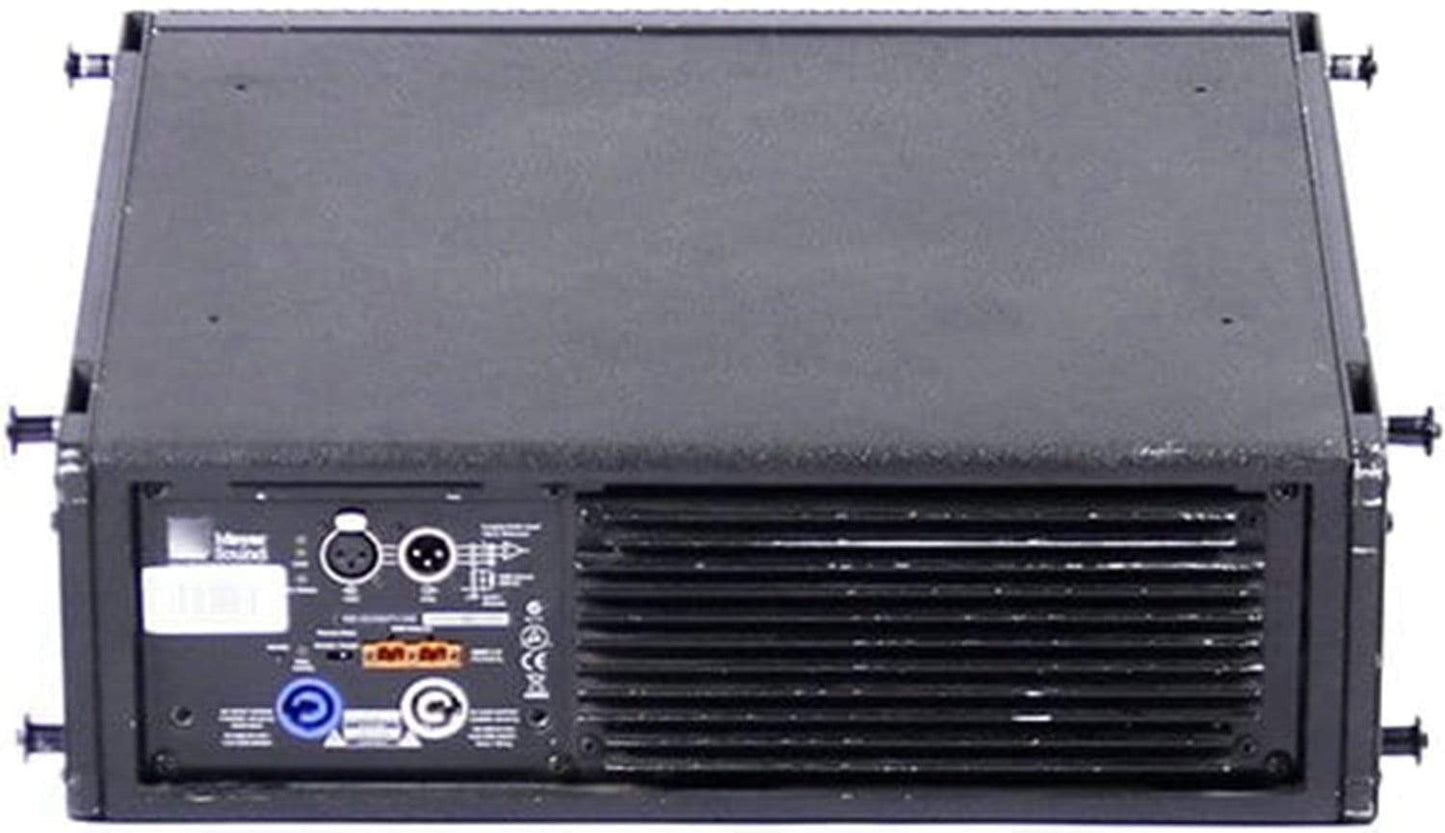

Meyer Sound MINA Powered Line Array Loudspeaker
The MINA™ compact curvilinear array loudspeaker is the smallest member of the industry-leading MILO® family of loudspeakers from Meyer Sound. Measuring just over a foot and a half wide (half a meter) and weighing only 41.2 lbs (18.69 kg), MINA is ideal for use in low-profile, high-power curvilinear array systems and an excellent choice for small theatres, theme parks, houses of wor-ship, AV systems, and any venue where size and weight are concerns and exceptional fidelity a requirement.
Features:
- Small footprint and narrow width ideal for small venues and fill applications
- Exceptional fidelity and transient response for intelligibility and high impact
- High power-to-size ratio
- Wide, even horizontal coverage pattern
- Flexible rigging options
- Seamless integration with M'elodie, MICA, and the 500-HP subwoofer
- QuickFly rigging with captive GuideALinks for flown and ground-stacked arrays, with additional MINAs, or with M'elodies or 500-HPs
Specifications:
- Acoustical
- Operating Frequency Range1: 66 Hz – 18 kHz
- Frequency Response2: 70 Hz – 17.5 kHz ±4 dB
- Phase Response: 1 kHz – 18 kHz ±30°
- Maximum Peak SPL3: 128 dB
- Dynamic Range: >110 dB
- Coverage
- Horizontal Coverage: 100°
- Vertical Coverage: Varies, depending on array length and configuration
- Crossover4
- 760 Hz
- Transducers
- Low Frequency:
- Two 6.5" cone drivers with neodymium magnets
- Nominal impedance: 4 Ω
- Voice coil size: 1.5"
- High Frequency5:
- 3" compression driver
- Nominal impedance: 8 Ω
- Voice coil size: 3"
- Diaphragm size: 3"
- Exit size: 1.2"
- Audio Input
- Type: Differential, electronically balanced
- Maximum Common Mode Range: ±15 V DC
- Connectors: XLR female input with XLR male loop output
- Input Impedance: 10 kΩ differential between pins 2 and 3
- Wiring:
- Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
- Pin 2: Signal +
- Pin 3: Signal –
- Case: Earth ground and chassis
- DC Blocking: Differential DC blocking up to the maximum common mode voltage
- CMRR: >50 dB, typically 80 dB (50 Hz – 500 Hz)
- RF Filter: Common mode: 425 kHz; Differential mode: 142 kHz
- TIM Filter: Integral to signal processing (<80 kHz)
- Nominal Input Sensitivity: 0 dBV (1.0 V rms, 1.4 V peak) continuous is typically the onset of limiting for noise and music
- Input Level: Audio source must be capable of producing +20 dBV (10 V rms, 14 V peak) into 600 Ω in order to produce maximum peak SPL over the operating bandwidth of the loudspeaker
- Amplifier
- Type: Three-channel, Class-D
- Output Power6: 975 W (three channels; 2 x 375 W, 1 x 225 W)
- Total Output7: 1950 W peak
- THD, IM, TIM: <.02%
- Load Capacity: 4 Ω low channels; 8 Ω high channel
- Cooling: Convection
- AC Power
- Connector: PowerCon with loop output
- Voltage Selection: Automatic, continuous from 90–265 V AC
- Safety Agency Rated Operating Range: 100–240 V AC, 50/60 Hz
- Turn-on and Turn-off Points:
- 90 V AC turn-on, no turn-off
- Internal fuse-protection above 265 V AC
- Idle Current: 0.256 A rms (115 V AC); 0.249 A rms (230 V AC); 0.284 A rms (100 V AC)
- Maximum Long-Term Continuous Current (>10 sec): 1.26 A rms (115 V AC); 0.66 A rms (230 V AC); 1.50 A rms (100 V AC)
- Burst Current (<1 sec)9: 3.24 A rms (115 V AC), 1.74 A rms (230 V AC), 4.02 A rms (100 V AC)
- Ultimate Short-Term Peak Current Draw: 10.4 A peak (115 V AC), 5.2 A peak (230 V AC), 11.1 A peak (100 V AC)
- Inrush Current: 7.1 A peak (115 V AC); 16.8 A peak (115 V AC), 20.0 A peak (230 V AC), 15.0 A peak (100 V AC)
- RMS Network (optional)
- Equipped with two-conductor twisted-pair network, reporting all operating parameters of amplifiers to system operator’s host computer
- Physical
- Dimensions: 20.27" w x 8.38" h x 15.32" d with rigging pins (515 mm x 213 mm x 389 mm)
- Weight: 41.2 lbs (18.69 kg)
- Enclosure: Premium birch plywood
- Finish: Black textured
- Protective Grille: Powder-coated, hex-stamped steel with black mesh
- Rigging: End frames with four captive GuideALinks, secured with 0.25" x 0.53" quick-release pins; metric M6 attachment points for optional MYA‑MINA mounting yoke and MUB‑MINA U-bracket
- Acoustical
- Operating Frequency Range1: 66 Hz – 18 kHz
- Frequency Response2: 70 Hz – 17.5 kHz ±4 dB
- Phase Response: 1 kHz – 18 kHz ±30°
- Maximum Peak SPL3: 128 dB
- Dynamic Range: >110 dB
- Coverage
- Horizontal Coverage: 100°
- Vertical Coverage: Varies, depending on array length and configuration
- Crossover4
- 760 Hz
- Transducers
- Low Frequency:
- Two 6.5" cone drivers with neodymium magnets
- Nominal impedance: 4 Ω
- Voice coil size: 1.5"
- High Frequency5:
- 3" compression driver
- Nominal impedance: 8 Ω
- Voice coil size: 3"
- Diaphragm size: 3"
- Exit size: 1.2"
- Low Frequency:
- Audio Input
- Type: Differential, electronically balanced
- Maximum Common Mode Range: ±15 V DC
- Connectors: XLR female input with XLR male loop output
- Input Impedance: 10 kΩ differential between pins 2 and 3
- Wiring:
- Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
- Pin 2: Signal +
- Pin 3: Signal –
- Case: Earth ground and chassis
- DC Blocking: Differential DC blocking up to the maximum common mode voltage
- CMRR: >50 dB, typically 80 dB (50 Hz – 500 Hz)
- RF Filter: Common mode: 425 kHz; Differential mode: 142 kHz
- TIM Filter: Integral to signal processing (<80 kHz)
- Nominal Input Sensitivity: 0 dBV (1.0 V rms, 1.4 V peak) continuous is typically the onset of limiting for noise and music
- Input Level: Audio source must be capable of producing +20 dBV (10 V rms, 14 V peak) into 600 Ω in order to produce maximum peak SPL over the operating bandwidth of the loudspeaker
- Amplifier
- Type: Three-channel, Class-D
- Output Power6: 975 W (three channels; 2 x 375 W, 1 x 225 W)
- Total Output7: 1950 W peak
- THD, IM, TIM: <.02%
- Load Capacity: 4 Ω low channels; 8 Ω high channel
- Cooling: Convection
- AC Power
- Connector: PowerCon with loop output
- Voltage Selection: Automatic, continuous from 90–265 V AC
- Safety Agency Rated Operating Range: 100–240 V AC, 50/60 Hz
- Turn-on and Turn-off Points:
- 90 V AC turn-on, no turn-off
- Internal fuse-protection above 265 V AC
- Idle Current: 0.256 A rms (115 V AC); 0.249 A rms (230 V AC); 0.284 A rms (100 V AC)
- Maximum Long-Term Continuous Current (>10 sec): 1.26 A rms (115 V AC); 0.66 A rms (230 V AC); 1.50 A rms (100 V AC)
- Burst Current (<1 sec)9: 3.24 A rms (115 V AC), 1.74 A rms (230 V AC), 4.02 A rms (100 V AC)
- Ultimate Short-Term Peak Current Draw: 10.4 A peak (115 V AC), 5.2 A peak (230 V AC), 11.1 A peak (100 V AC)
- Inrush Current: 7.1 A peak (115 V AC); 16.8 A peak (115 V AC), 20.0 A peak (230 V AC), 15.0 A peak (100 V AC)
- RMS Network (optional)
- Equipped with two-conductor twisted-pair network, reporting all operating parameters of amplifiers to system operator’s host computer
- Physical
- Dimensions: 20.27" w x 8.38" h x 15.32" d with rigging pins (515 mm x 213 mm x 389 mm)
- Weight: 41.2 lbs (18.69 kg)
- Enclosure: Premium birch plywood
- Finish: Black textured
- Protective Grille: Powder-coated, hex-stamped steel with black mesh
- Rigging: End frames with four captive GuideALinks, secured with 0.25" x 0.53" quick-release pins; metric M6 attachment points for optional MYA‑MINA mounting yoke and MUB‑MINA U-bracket
