Description

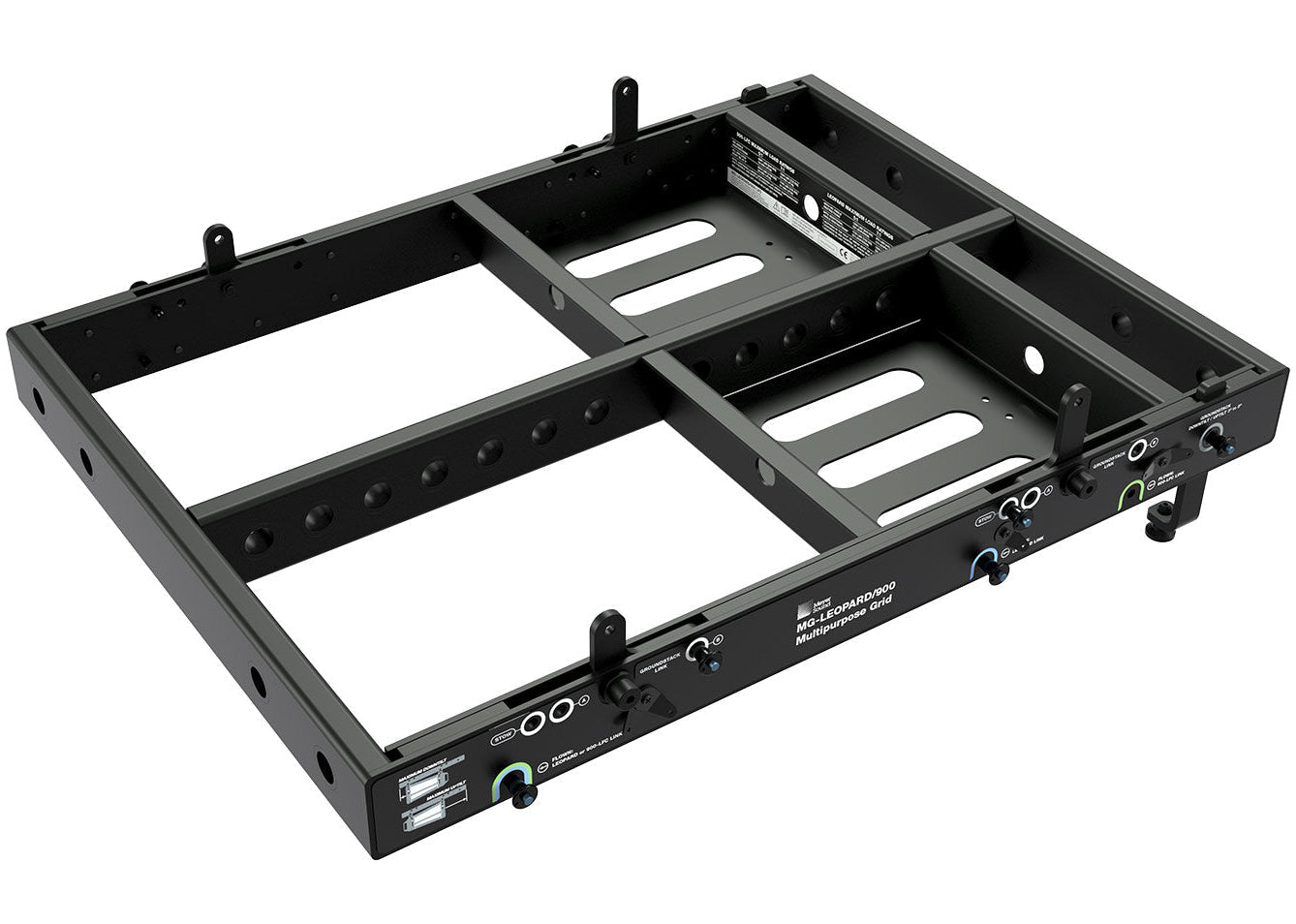

Meyer Sound MG-Leopard/900 Multipurpose Grid
The MG-LEOPARD/900 is a versatile, multipurpose rigging grid by Meyer Sound, designed to fly or ground-stack LEOPARD linear line array loudspeakers and 900-LFC low-frequency control elements seamlessly, without the need for transition hardware.
Key Features and Specifications
-
Capacity: Flies up to 23 LEOPARD cabinets with a 5:1 safety factor and BGV C1 compliance, subject to angle restrictions.
-
Configurations: Supports both flown arrays and ground-stacked setups, accommodating mixed configurations of LEOPARD and 900-LFC units.
-
Orientation: Can be positioned forward for maximum down-tilt or rotated to the rearward position for maximum up-tilt.
-
Targeting Tools: Features built-in central pickup options and alignment openings designed to allow an inclinometer laser beam to pass through for accurate array aiming.
-
Accessory Compatibility: Compatible with the optional Ground-stack Tilt Kit for additional downward angle adjustment and the PBF-LEOPARD pull-back frame for extreme down-tilt angles.
