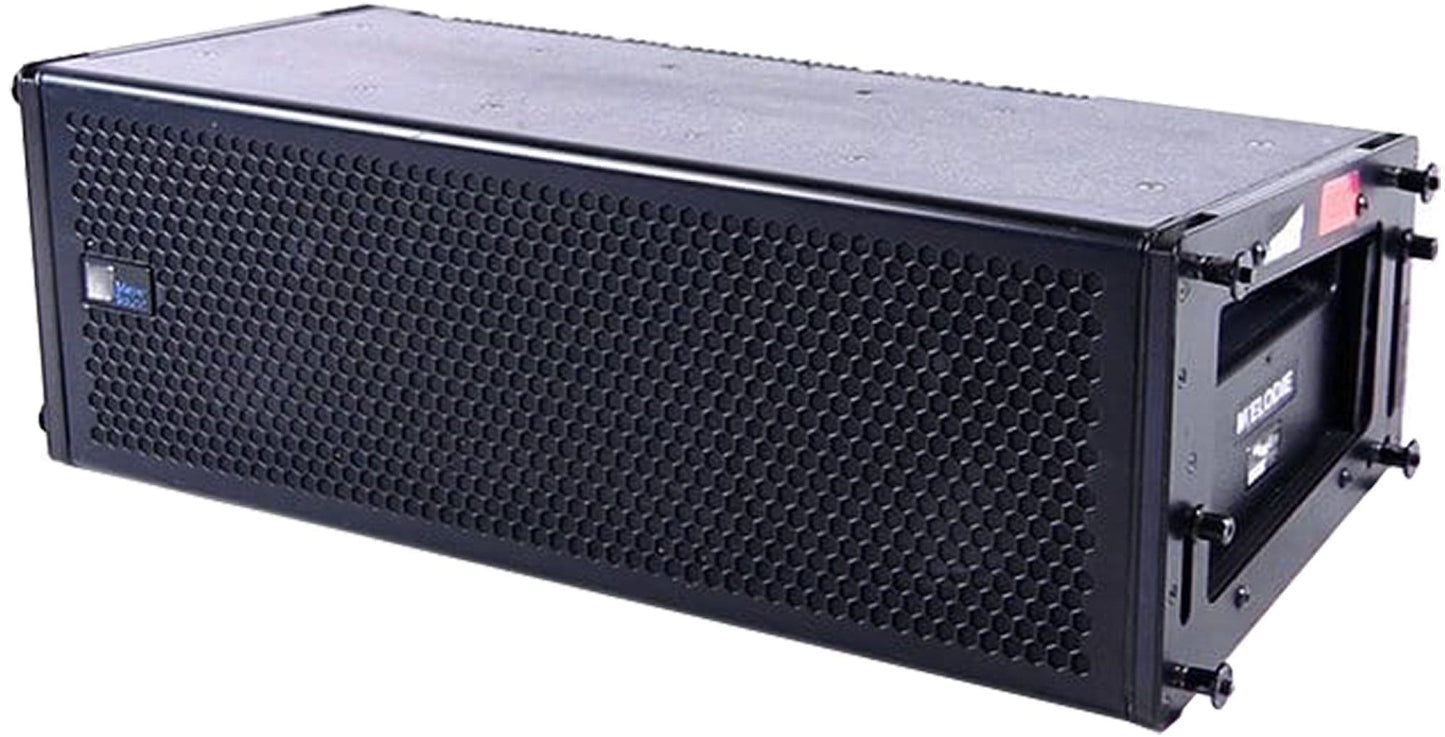

Meyer Sound Melodie Powered Line Array Speaker
The self-powered M’elodie ultracompact high-power curvilinear array loudspeaker is a member of the popular MILO® family of loudspeakers. Its extended high-frequency headroom gives it a smooth sound over its wide operating frequency range of 70 Hz to 18 kHz. This headroom combines with a 100-degree horizontal coverage pattern to provide detailed resolution of delicate transient information across a broad coverage area.
Features:
- Exceptional power-to-size ratio
- Wide and even horizontal coverage pattern
- Very small footprint keeps a low profile appearance
- Seamless integration with MICA
- QuickFly rigging with captive GuideALinks simplifies use in flown or groundstacked arrays, alone or with MICA and/or 600-HP subwoofer
Specifications:
- ACOUSTICAL
- Operating frequency range: 70 Hz - 18 kHz
- Frequency response: 76 Hz - 16 kHz ±4 dB
- Phase response: 1.5 kHz - 16 kHz ±30°
- Maximum peak SPL: 131 dB
- Dynamic range: >110 dB
- Acoustical crossover: 1100 Hz
- COVERAGE
- Horizontal coverage: 100°
- Vertical coverage: Varies, depending on array length and configuration
- TRANSDUCERS
- Low/low-mid:
- frequency: Two 8” cone drivers with neodymium magnets
- Nominal impedance: 4 Ω
- Voice coil size: 1.5”
- Power handling capability: 600 W (AES); 900 W peak
- High frequency:
- 3” compression driver
- Nominal impedance: 8 Ω
- Voice coil size: 3”
- Diaphragm size: 3”
- Exit size: 1.2”
- Power handling capability: 180 W (AES); 360 W peak
- AUDIO INPUT
- Type: Differential, electronically balanced
- Max. common mode range: ±15 V DC, clamped to earth for voltage transient protection
- Connectors: Female XLR input with male XLR loop output or VEAM all-in-one connector (integrates AC, audio, and network)
- Input impedance: 10 kΩ differential between pins 2 and 3
- Wiring:
- Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
- Pin 2: Signal +
- Pin 3: Signal -
- Case: Earth ground and chassis
- DC Blocking: Differential DC blocking up to max common mode voltage
- CMRR: >50 dB, typically 80 dB (50 Hz – 500 Hz)
- RF filter:
- Common mode: 425 kHz
- Differential mode: 142 kHz
- TIM filter: <80 kHz, integral to signal processing
- Nominal input sensitivity: 0 dB V (1 V rms, 1.4 V pk) continuous is typically the onset of limiting for noise and music.
- Input level: Audio source must be capable of producing +20 dBV (10 V rms, 14 V pk) into 600 Ω in order to produce maximum peak SPL over the operating bandwidth of the loudspeaker
- AMPLIFIERS
- Amplifier type: Three-channel complementary MOSFET output stages (class AB/H)
- Output power: 1275 W (three channels; 2 x 500 W, 1 x 275 W); 2550 W peak10
- THD, IM TIM: < .02%
- Load capacity: 4 Ω low and mid; 8 Ω high channels
- Cooling: Convection cooled
- AC POWER
- AC power connector: PowerCon with looping output or VEAM all-in-one connector (integrates AC, audio and network)
- Voltage selection: Automatic, two ranges, each with high-low voltage tap (uninterrupted)
- Safety agency rated operating voltage: 95 V AC – 125 V AC, 208 V AC - 235 V AC, 50/60 Hz
- Turn on/turn off points: 85 V AC - 134 V AC; 165 V AC - 264 V AC
- Idle current: 0.680 A rms (115 V AC), 0.360 A rms (230 V AC), 0.760 A rms (100 V AC)
- Max. long-term continuous current (>10 sec): 2.3 A rms (115 V AC); 1.2 A rms (230 V AC); 2.6 A rms (100 V AC)11
- Burst Current (<1 sec): 4 A rms (115 V AC), 2 A rms (230 V AC), 4.5 A rms (100 V AC)
- Ultimate Short-Term Peak Current Draw: 13 A pk (115 V AC), 6.5 A pk (230 V AC), 15 A pk (100 V AC)
- Inrush Current :10 A pk (115 and 100 V AC), 18 A pk (230 V AC)
- RMS NETWORK
- Equipped with two-conductor twisted-pair network, reporting all operating parameters of amplifiers to system operator’s host computer.
- PHYSICAL
- Enclosure: Premium birch plywood
- Finish: Black textured
- Protective grille: Powder-coated, hex-stamped steel, black mesh
- Rigging: QuickFly rigging with four captive GuideALinks in the bottom corners of two aluminum and steel end frames, secured with quick-release pins
- Dimensions: 28.54 w x 9.19 h x 12.75 d (724.84 mm x 233.31 mm x 323.85 mm)
- Weight: 62 lbs (28.12 kg)
- ACOUSTICAL
- Operating frequency range: 70 Hz - 18 kHz
- Frequency response: 76 Hz - 16 kHz ±4 dB
- Phase response: 1.5 kHz - 16 kHz ±30°
- Maximum peak SPL: 131 dB
- Dynamic range: >110 dB
- Acoustical crossover: 1100 Hz
- COVERAGE
- Horizontal coverage: 100°
- Vertical coverage: Varies, depending on array length and configuration
- TRANSDUCERS
- Low/low-mid:
- frequency: Two 8” cone drivers with neodymium magnets
- Nominal impedance: 4 Ω
- Voice coil size: 1.5”
- Power handling capability: 600 W (AES); 900 W peak
- High frequency:
- 3” compression driver
- Nominal impedance: 8 Ω
- Voice coil size: 3”
- Diaphragm size: 3”
- Exit size: 1.2”
- Power handling capability: 180 W (AES); 360 W peak
- Low/low-mid:
- AUDIO INPUT
- Type: Differential, electronically balanced
- Max. common mode range: ±15 V DC, clamped to earth for voltage transient protection
- Connectors: Female XLR input with male XLR loop output or VEAM all-in-one connector (integrates AC, audio, and network)
- Input impedance: 10 kΩ differential between pins 2 and 3
- Wiring:
- Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
- Pin 2: Signal +
- Pin 3: Signal -
- Case: Earth ground and chassis
- DC Blocking: Differential DC blocking up to max common mode voltage
- CMRR: >50 dB, typically 80 dB (50 Hz – 500 Hz)
- RF filter:
- Common mode: 425 kHz
- Differential mode: 142 kHz
- TIM filter: <80 kHz, integral to signal processing
- Nominal input sensitivity: 0 dB V (1 V rms, 1.4 V pk) continuous is typically the onset of limiting for noise and music.
- Input level: Audio source must be capable of producing +20 dBV (10 V rms, 14 V pk) into 600 Ω in order to produce maximum peak SPL over the operating bandwidth of the loudspeaker
- AMPLIFIERS
- Amplifier type: Three-channel complementary MOSFET output stages (class AB/H)
- Output power: 1275 W (three channels; 2 x 500 W, 1 x 275 W); 2550 W peak10
- THD, IM TIM: < .02%
- Load capacity: 4 Ω low and mid; 8 Ω high channels
- Cooling: Convection cooled
- AC POWER
- AC power connector: PowerCon with looping output or VEAM all-in-one connector (integrates AC, audio and network)
- Voltage selection: Automatic, two ranges, each with high-low voltage tap (uninterrupted)
- Safety agency rated operating voltage: 95 V AC – 125 V AC, 208 V AC - 235 V AC, 50/60 Hz
- Turn on/turn off points: 85 V AC - 134 V AC; 165 V AC - 264 V AC
- Idle current: 0.680 A rms (115 V AC), 0.360 A rms (230 V AC), 0.760 A rms (100 V AC)
- Max. long-term continuous current (>10 sec): 2.3 A rms (115 V AC); 1.2 A rms (230 V AC); 2.6 A rms (100 V AC)11
- Burst Current (<1 sec): 4 A rms (115 V AC), 2 A rms (230 V AC), 4.5 A rms (100 V AC)
- Ultimate Short-Term Peak Current Draw: 13 A pk (115 V AC), 6.5 A pk (230 V AC), 15 A pk (100 V AC)
- Inrush Current :10 A pk (115 and 100 V AC), 18 A pk (230 V AC)
- RMS NETWORK
- Equipped with two-conductor twisted-pair network, reporting all operating parameters of amplifiers to system operator’s host computer.
- PHYSICAL
- Enclosure: Premium birch plywood
- Finish: Black textured
- Protective grille: Powder-coated, hex-stamped steel, black mesh
- Rigging: QuickFly rigging with four captive GuideALinks in the bottom corners of two aluminum and steel end frames, secured with quick-release pins
- Dimensions: 28.54 w x 9.19 h x 12.75 d (724.84 mm x 233.31 mm x 323.85 mm)
- Weight: 62 lbs (28.12 kg)
