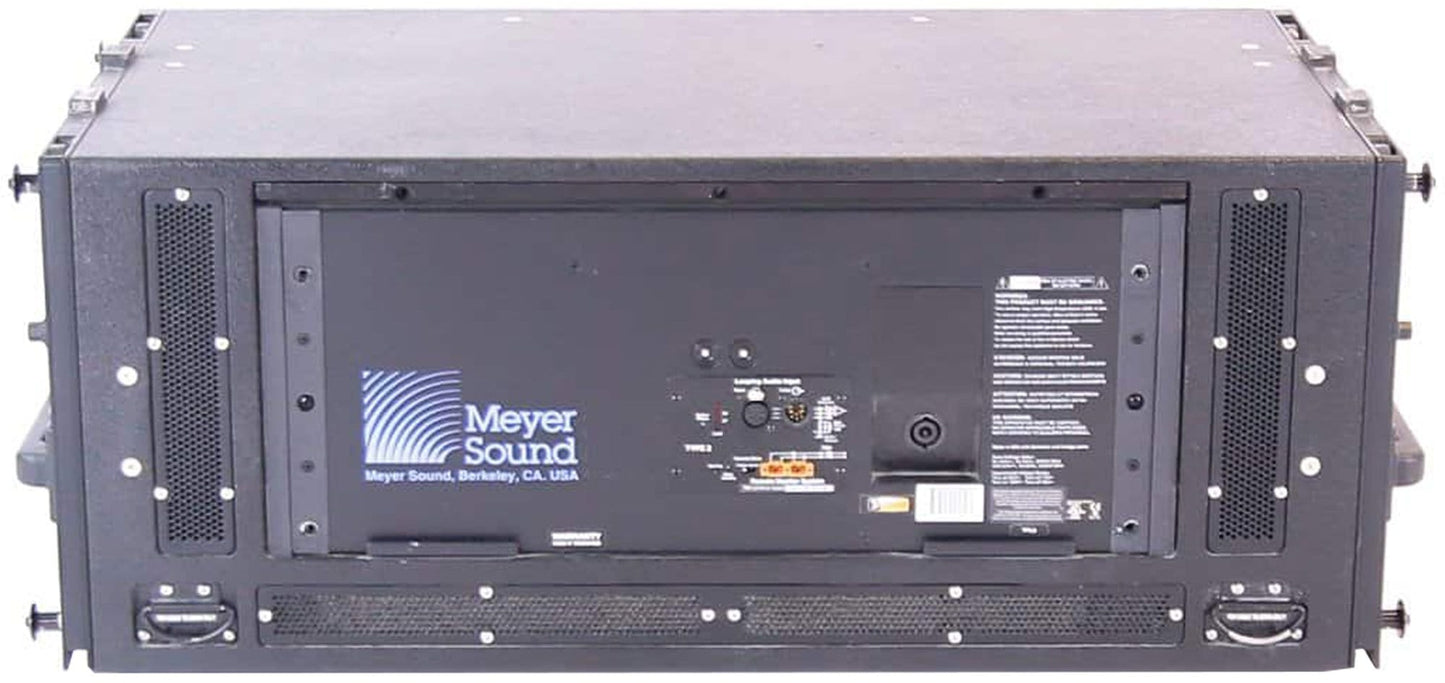

Meyer Sound LYON-M Powered Line Array Loudspeaker

Meyer Sound LYON-M Powered Line Array Loudspeaker

LEO-M remains linear and predictable across all frequencies and at extraordinarily high sound levels. Whether you have an audience of 65,000 dancing to an EDM show or spread across a park lawn to hear a symphony orchestra, the system’s impressive transparency allows the audience to hear each instrument—vocals, sax, drums, guitar, violin, cello—simultaneously and clearly, without one element coloring the others. LEO-M leaves you free to create any desired effects with a guarantee of accurate reproduction upstream. LEO-M is self-powered, saving you money, time, and aggravation by eliminating long cables and bulky amp racks. And the long-throw capabilities often reduce or eliminate the need for delay systems.

Specifications:

• Dimension: 38.15” W x 14.85” H x 21.00” D (1128 mm x 453 mm x 584 mm)
• Weight: 199 lbs (90.3 kg)
• Total Output Power: 8500 Watts Peak
• Maximum SPL: 150dB

• Operating Frequency Range: 55Hz - 16.5 kHz
• Phase Response: 80Hz - 16kHz +30°
• Horizontal Coverage: 90°
• Vertical Coverage: Varies, Depending on array length and configuration
• Low Frequency: Two 12-inch long-excursion cone drivers; 4 Ω nominal impedance
• High Frequency: Two 3-inch diaphragm compression drivers coupled to a constant-directivity horn through a patented REM manifold; 16 Ω nominal impedance
