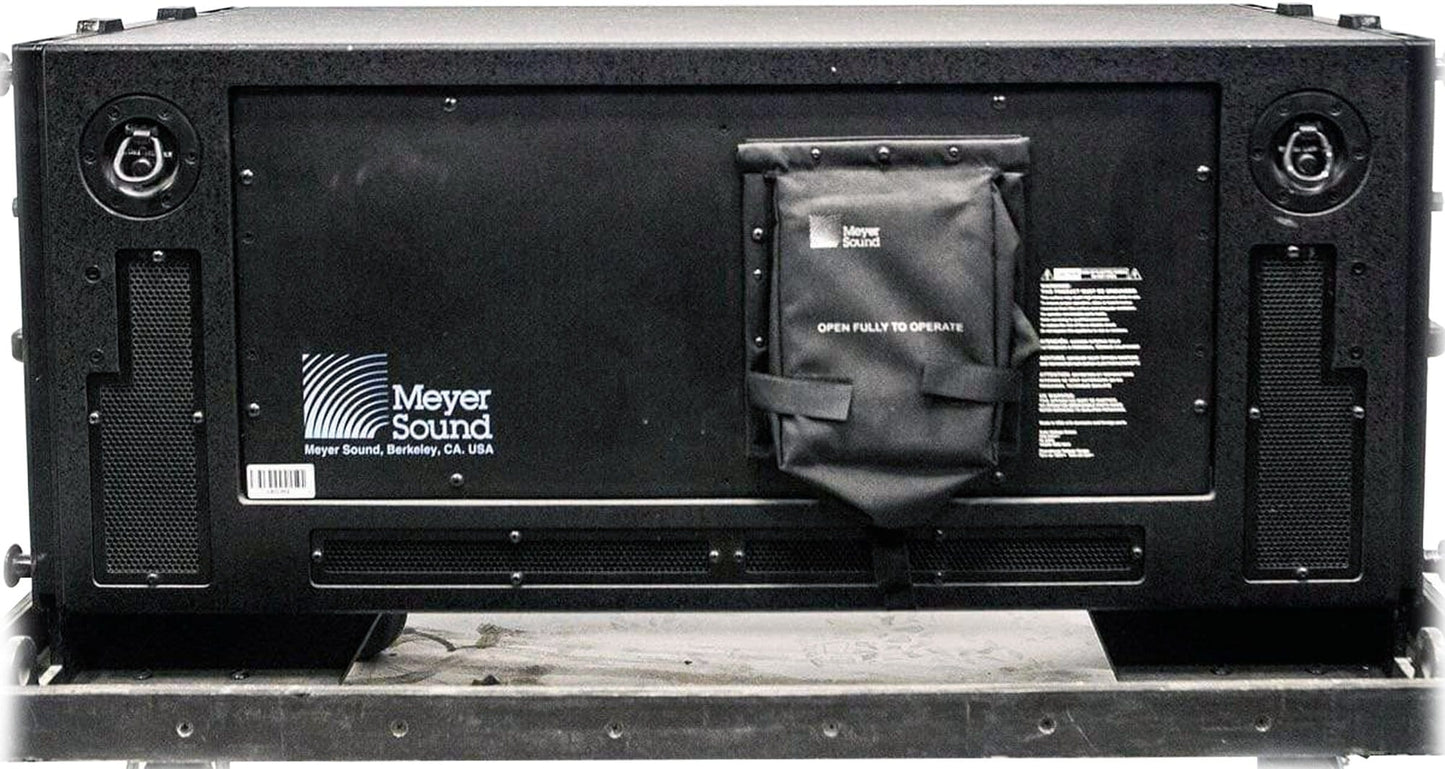

Meyer Sound LEO-M Powered Line Array Loudspeaker

Meyer Sound LEO-M Powered Line Array Loudspeaker

The LEO-M advanced linear array loudspeaker is defined by its sonic linearity at any output level. With exceptional headroom, extremely low distortion, and optimized rigging options, LEO-M forms the nucleus of Meyer Sound’s next-generation LEO array systems, conceived for long-throw applications. LEO arrays are ideally paired with Meyer Sound’s 1100-LFC low-frequency control element for bass reproduction, and the LYON™ linear line array loudspeaker for downfill. The MICA® compact high-power curvilinear array loudspeaker is also well suited for downfill. Entire systems are driven by Meyer Sound’s Galileo Callisto™ 616 array processor, which provides matrix routing, alignment, and processing for array components.

Features:

• Optimized line arrays with controlled directivity for even coverage and consistent responses over long throws
• High peak power output with exceptional linearity and transient reproduction at extreme levels
• Self-powered for simplified setup and increased reliability
• Optimized rigging allows splay angles to be set while stacks rest in caster frames
• Integrates seamlessly with 1100-LFC, LYON, and MIC

Specifications:

• ACOUSTICAL
  • Operating Frequency Range: 55 Hz – 16 kHz
  • Phase Response: 375 Hz – 14 kHz ±30°
• TRANSDUCERS
  • Low Frequency: Two 15” long-excursion cone drivers
  • High Frequency: Two 4” compression drivers
• AUDIO INPUT
  • Type: Differential, electronically balance
  • Maximum Common Mode Range: ±15 V DC, clamped to earth for voltage transient pro
  • Connectors: XLR 5-pin female input with XLR 5-pin male loop output
  • Input Impedance: 10 kΩ differential between pins 2 and 3
  • Wiring:
    • Pin 1: Chassis/earth through 1 kΩ, 1000 pF, 15 V clamped network to provide virtual ground lift at audio frequencies
    • Pin 2: Signal +
    • Pin 3: Signal –
    • Pin 4: RMS
    • Pin 5: RMS
    • Case: Earth ground and chassis
  • DC Blocking: Differential DC blocking up to the maximum common
  • CMRR: >50 dB, typically 80 dB (50 Hz – 500 Hz)
  • RF Filter:
    Common mode: 425 kHz
  Differential mode: 142 kHz

TIM Filter: Integral to signal processing (<80 kHz)

Nominal Input Sensitivity: 0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music

Input Level: Audio source must be capable of producing of +20 dBV (10 V rms, 14 V peak) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker

AMPLIFIER

• Type: 3-channel complementary MOSFET output stages (class AB/H bridged)
• Two ultrahigh-speed primary fans, two ultrahigh-speed reserve fan

AC POWER

• Connectors: powerCON 32
• Automatic Voltage Selection: 208–235 V AC, 50–60 Hz
• Operational Voltage Range: Turn-on: 165 V AC; Turn-off: 264 V AC
• Current Draw:
  • Idle Current: 0.6 A rms (230 V AC)
  • Maximum Long-Term Continuous Current (>10 sec): 6.0 A rms (230 V AC)
  • Burst Current (<1 sec): 8.0 A rms (230 V AC)
  • Maximum Instantaneous Peak Current: 24 A peak (230 V AC)
  • Inrush Current: <15 A peak (230 V AC)

RMS NETWORK

• Equipped with 2‑conductor, twisted‑pair network, reporting all amplifier operating parameters to host computer

PHYSICAL

• Dimensions:
  • 44.42” w x 17.85” h x 23.00” d
  • (1128 mm x 453 mm x 584 mm)
• Weight: 265 lbs (120.2 kg)
• Enclosure: Multi-ply hardwood
• Finish: Black textured
• Protective Grille: Hex-stamped steel with acoustical black mesh
• Rigging: Endframes with captive GuideALinks, quick-release pins, and detachable handles
