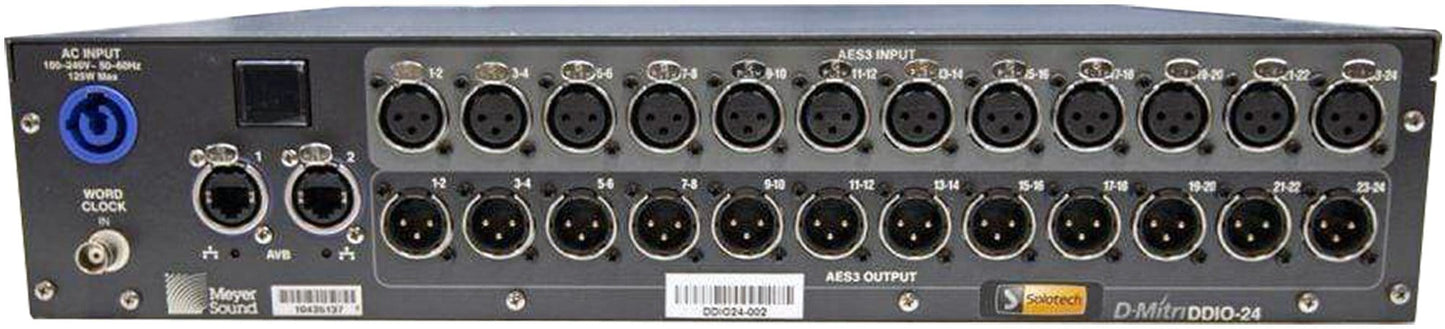

Meyer Sound DDIO-24 Digital I/O Module for D-Mitri

Meyer Sound DDIO-24 Digital I/O Module for D-Mitri

The DDIO-24 is a 2U rackmountable input/output module for the D-Mitri digital audio platform providing 24 channels each of input and output conversions between D-Mitri's AVB-enabled Ethernet network and devices that have AES/ EBU digital audio connections. The DDIO-24 includes sample rate conversion on both inputs and outputs, allowing complete independence from AES/EBU stream clocking.

Features:

• Enables integration with devices having AES/EBU interfaces
• Provides 24 channels of input and 24 channels of output conversion between AES/EBU devices and D-Mitri’s Ethernet/AVB network
• Sample rate conversion on input and output allows independence from AES/ EBU stream clocking
• External Word Clock Input to allow the AES Outputs clock to be locked to an external device
• Additional redundant AVB port

Specifications:

• CONVERSION
  • Digital Conversion: 24-bit resolution, 96 kHz sampling rate, sample rate conversion avai
• DIGITAL AUDIO AND CONTROL
  Input Section: 12 AES/EBU inputs Connectors: Gold-plated female XLR Output Section: 12 AES/EBU outputs Connectors: Gold-plated male XLR Word Clock input: One word clock input on BNC connector Network: Two AVB-enabled Ethernet ports for connection to D-Mitri system Software Control: Full bidirectional communication with D-Mitri processors for control by CueStation software within a client-server architecture, as well as external control via Open Sound Control protocol
• AC POWER
  • Connector: PowerCon®
  • Operating Voltage Range: 100–240 V AC, 50-60 Hz
  • Power Consumption: 125 W maximum
• PHYSICAL
  • Dimensions:
    • Two rack spaces
    • 19" w x 3.5" h x 15.9" d
    • (483 mm x 89 mm x 404 mm)
  • Weight: 20 lbs
• NOTES
  • System Requirements: D-Mitri requires a Gigabit Ethernet infrastructure
  • Cabling: Cat-5e or Cat-6
