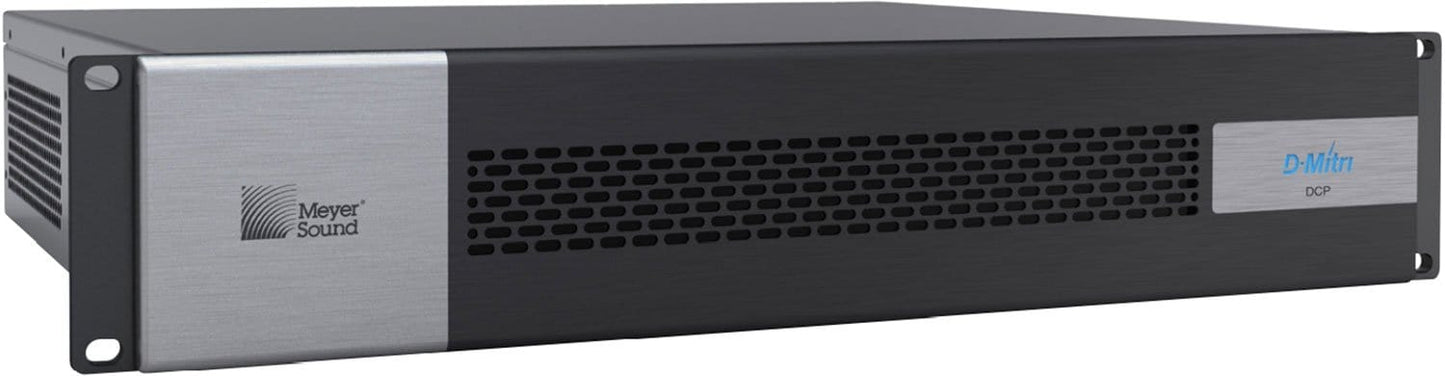

Meyer Sound DCP 72-Channel Core Signal Processor

Meyer Sound DCP 72-Channel Core Signal Processor

The DCP is a 2U rackmountable processing module for the D-Mitri digital audio platform which provides complete audio processing for up to 72 inputs, outputs, and internal buses. The DCP receives audio inputs from and sends outputs to D-Mitri audio interfaces via the system’s AVB-enabled Ethernet network. Audio travels between the DCP and DCM-2 or DCM-4 matrix mixing modules over Matrix Link, a dedicated, ultra-low latency Ethernet connection carrying audio streams at a 96 kHz sample rate and 32-bit resolution. All processing is fully dynamic under the control of D-Mitri’s CueStation software.

Features:

• Provides complete audio processing for up to 72 inputs, outputs and internal buses
• Processing dynamically controlled by CueStation software
• Processes streams of up to 32 bits of resolution at 96 kHz sample rate
• Sends and receives audio to and from D-Mitri's matrix mixing modules (DCM) over Matrix Link
• Sends and receives audio to and from D-Mitri's I/O modules over AVB
• Sends and receives audio to and from D-Mitri¹s Ethernet/AVB network
• Redundant control port
• Additional redundant AVB port
• Additional redundant Matrix Link port

Specifications:

• Digital Audio and Control
  • Network:
    • Two AVB-enabled Ethernet ports for connection to D-Mitri interfaces
    • Two Matrix Link ports for connection to D-Mitri DCM-2 and DCM-4 matrix mixing/routing modules
  • Software Control: Full bidirectional communication with D-Mitri processors for control by CueStation software within a client-server architecture, as well as external control via Open Sound Control protocol
  • Control Connections: The DCM-2 has two control ports for redundant control from a backup network or controller.
• AC Power
  • Connector: PowerCon®
  • Operating Voltage Range: 100–240 V AC, 50-60 Hz
  • Power Consumption: 150 W maximum
• PHYSICAL
  • Dimensions:
    • Two rack spaces
    • 19" w x 3.5" h x 15.9" d
    • (483 mm x 89 mm x 404 mm)
  • Weight: 23 lbs.
• Notes
  • System Requirements: D-Mitri requires a Gigabit Ethernet infrastructure
  • Cabling: Cat-5e or Cat-6
