Meyer Sound DAIO-816 Analog I/O Module for D-Mitri

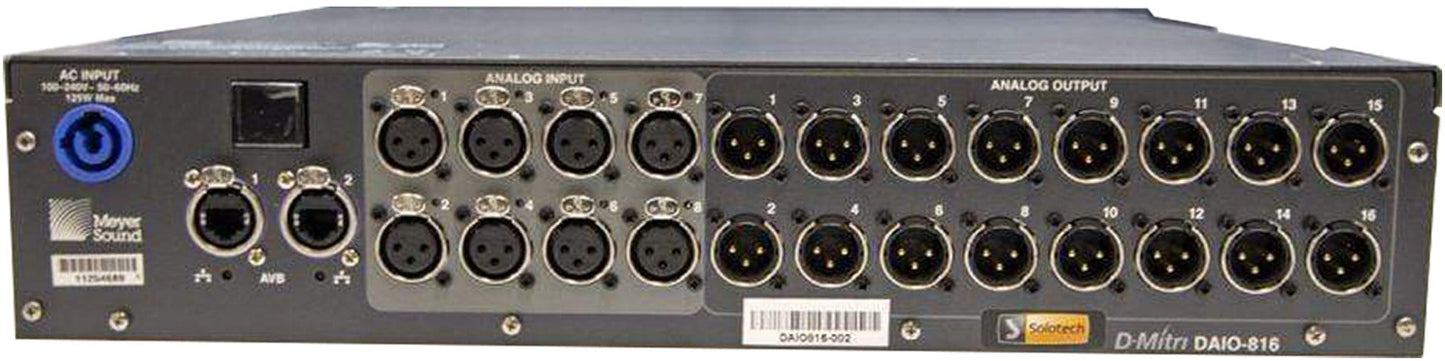

The DAIO-816 is a 2U rackmountable input/output module for the D-Mitri digital audio platform providing eight channels of balanced mic-level or line-level analog input and 16 channels of line-level analog output on XLR connectors. The DAIO-816 includes a high-quality preamplifier and precision A/D conversion for each input channel and a software-selectable maximum output level, as well as transport of input and output channels to and from D-Mitri’s AVB enabled Ethernet network.
Features:
- Provides eight mic-level or line-level analog inputs and 16 line-level analog outputs
- High-resolution A/D/A conversion: up to 96 kHz sample rate at 24 bits
- Accepts very wide range of input signal levels
- Software-controlled gain and phantom power for each input
- Software-selectable maximum output levels
- Integrates analog audio inputs and outputs into D-Mitri’s Ethernet/AVB network
- Additional redundant AVB port
Specifications:
- ANALOG AUDIO
- Input Section: Eight analog inputs
- Connectors: Gold-plated female XLR
- Maximum Input Level: +26 dBu (maximum range selected, 0 dB input gain)
- Output Section: 16 analog outputs
- Connectors: Gold-plated male XLR
- Maximum Output Level: +26 dBu into 600 ohms or greater (maximum range selected)
- A/D/A CONVERSION
- Digital Conversion: 24-bit resolution, 96 kHz sampling rate
- Analog Conversion: 24-bit resolution, 96 kHz sampling rat
- DIGITAL AUDIO AND CONTROL
- Network: Two AVB-enabled Ethernet ports for connection to D-Mitri system
- Software Control: Full bidirectional communication with D-Mitri processors for control by CueStation software within a client-server architecture, as well as external control via Open Sound Control protocol
- AC POWER
- Connector: PowerCon®
- Operating Voltage Range: 100–240 V AC, 50-60 Hz
- Power Consumption: 125 W maximum
- PHYSICAL
- Dimensions:
- Two rack spaces
- 19" w x 3.5" h x 15.9" d
- (483 mm x 89 mm x 404 mm)
- Weight: 20 lbs
- NOTES
- System Requirements: D-Mitri requires a Gigabit Ethernet infrastructure
- Cabling: Cat-5e or Cat-6
- ANALOG AUDIO
- Input Section: Eight analog inputs
- Connectors: Gold-plated female XLR
- Maximum Input Level: +26 dBu (maximum range selected, 0 dB input gain)
- Output Section: 16 analog outputs
- Connectors: Gold-plated male XLR
- Maximum Output Level: +26 dBu into 600 ohms or greater (maximum range selected)
- A/D/A CONVERSION
- Digital Conversion: 24-bit resolution, 96 kHz sampling rate
- Analog Conversion: 24-bit resolution, 96 kHz sampling rat
- DIGITAL AUDIO AND CONTROL
- Network: Two AVB-enabled Ethernet ports for connection to D-Mitri system
- Software Control: Full bidirectional communication with D-Mitri processors for control by CueStation software within a client-server architecture, as well as external control via Open Sound Control protocol
- AC POWER
- Connector: PowerCon®
- Operating Voltage Range: 100–240 V AC, 50-60 Hz
- Power Consumption: 125 W maximum
- PHYSICAL
- Dimensions:
- Two rack spaces
- 19" w x 3.5" h x 15.9" d
- (483 mm x 89 mm x 404 mm)
- Weight: 20 lbs
- Dimensions:
- NOTES
- System Requirements: D-Mitri requires a Gigabit Ethernet infrastructure
- Cabling: Cat-5e or Cat-6
