Meyer Sound D-Mitri DGPIO In-Out Signal Processor

Meyer Sound D-Mitri DGPIO In-Out Signal Processor

Write a review

SKU: TZ-DGPIO Solotech ID#: 100809890

Shipping calculated at checkout.

Available options

 View full details

Description

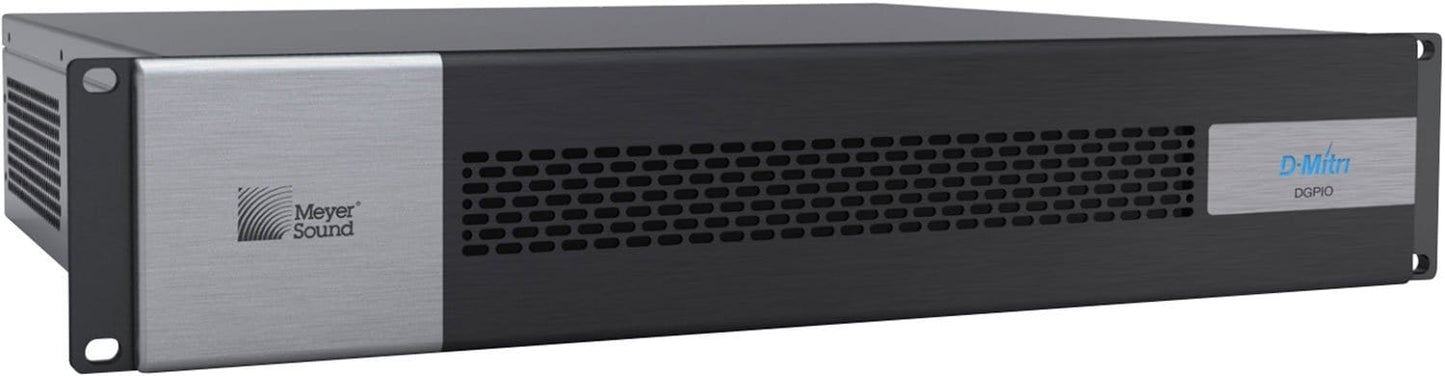

Meyer Sound D-Mitri DGPIO In-Out Signal Processor

The DGPIO is a 2U rackmountable input/output module for the D-Mitri® digital audio platform providing control input and output connections between D-Mitri’s Ethernet audio network and external devices that have a variety of industry standard interface types.

Features:

  • General Purpose I/O with contact closure inputs and relays
  • Serial Computer Interfaces for both RS-232 and RS-422
  • MIDI in and out
  • SMPTE Linear Time Code In and Out
  • System Word Clock In and Out
  • Provides conversion between these interfaces and D-Mitri’s Ethernet audio network
  • Enables extensive control of external devices by CueStation™ software
  • ADC inputs
  • Additional redundant AVB-capable port

Specifications:

  • Connections
    • MIDI:
      • One MIDI input on 5-pin DIN connector
      • One MIDI output on 5-pin DIN connector
    • SMPTE (LTC):
      • One SMPTE input on gold-plated XLR 3-pin female connector
      • One SMPTE output on gold-plated XLR 3-pin male connector
    • Serial:
      • One RS-232 on male DB-9 connector
      • One RS-422 on female DB-9 connector
    • Word Clock:
      • One word clock input on BNC connector
      • One word clock output on BNC connector
    • Terminal Strip:
      • Six relay connections
      • Six Digital Logic Inputs with switch contact closure (including ground and +5v)
      • Four ADC inputs
  • Digital Audio and Control
    • Network: Two AVB-capable Ethernet ports for connection to D-Mitri system
    • Software Control: Full bidirectional communication with D-Mitri processors for control by CueStation software within a client-server architecture, as well as external control via Open Sound Control protocol
  • AC Power
    • Connector: powerCON 20
    • Operating Voltage Range: 100–240 V AC, 50–60 Hz
    • Power Consumption: 125 W maximum
  • Physical
    • Dimensions:
    • Two rack spaces
    • 19" w x 3.5" h x 15.9" d
    • (483 mm x 89 mm x 404 mm)
  • Weight: 20 lbs. (9.1 kg)
  • Notes
    • System requirements: D-Mitri requires a Gigabit Ethernet infrastructure
    • Cabling: Cat-5e or Cat-6
