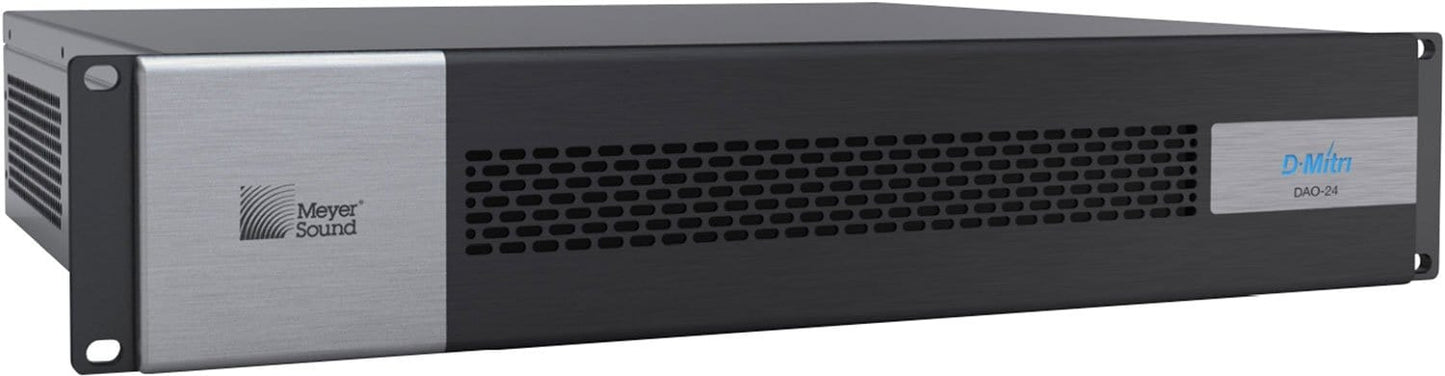

Meyer Sound D-Mitri Dao 24-Output Signal Processor

Meyer Sound D-Mitri DAO 24-Output Signal Processor

The DAO-24 is a 2U rackmountable output module for the D-Mitri® digital audio platform providing 24 channels of balanced line-level analog output on XLR connectors. The DAO-24 provides two software-selectable maximum output levels, as well as transport and conversion of channels from D-Mitri’s Ethernet audio network.

Features:

• Provides 24 analog outputs
• High-resolution D/A conversion of signals of up to 96 kHz sample rate at 24 bits
• Software-selectable maximum output levels
• Receives audio from D-Mitri’s Ethernet audio network
• Additional redundant AVB-capable port

Specifications:

• Analog Audio
  • Output Section: 24 analog outputs
  • Connectors: Gold-plated XLR 3-pin male
  • Maximum Output Level: +26 dBu into 600 ohms or greater (maximum range selected)
• D/A Conversion
  • Analog Conversion: 24-bit resolution, 96 kHz sampling rate
• Digital Audio and Control
  • Network: Two AVB-capable Ethernet ports for connection to D-Mitri system
  • Software Control: Full bidirectional communication with D-Mitri processors for control by CueStation™ software within a client-server architecture, as well as external control via Open Sound Control protocol
• AC Power
  • Connector: powerCON 20
  • Operating Voltage Range: 100–240 V AC, 50–60 Hz
  • Power Consumption: 125 W maximum
• Physical
  • Dimensions:
  • Two rack spaces
  • 19" w x 3.5" h x 15.9" d
  • (483 mm x 89 mm x 404 mm)
• Weight: 20 lbs. (9.1 kg)
• Notes
  • System Requirements: D-Mitri requires a Gigabit Ethernet infrastructure
  • Cabling: Cat-5e or Cat-6
