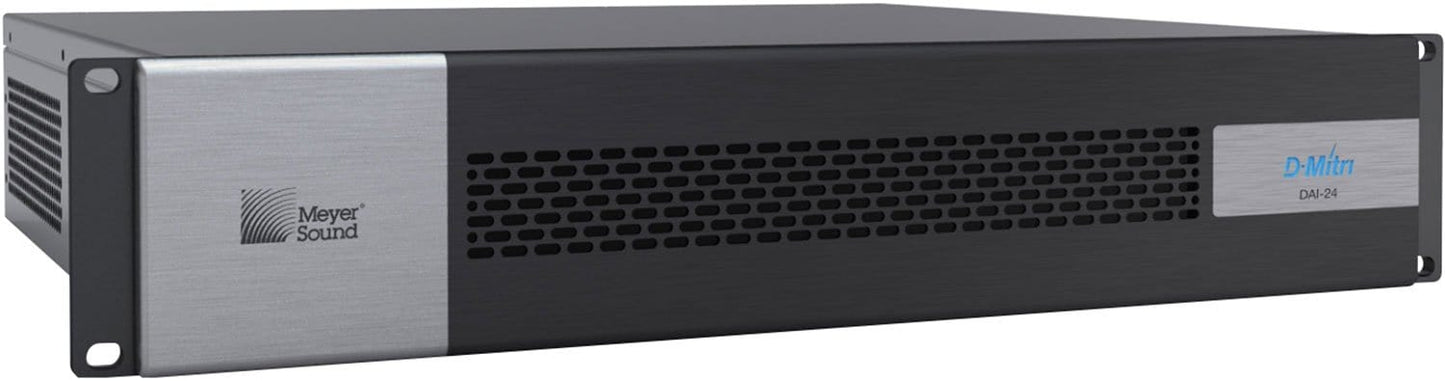

Meyer Sound D-Mitri Dai 24-Input Signal Processor

Meyer Sound D-Mitri Dai 24-Input Signal Processor

The DAI-24 is a 2U rackmountable input module for the D-Mitri® digital audio platform providing 24 channels of balanced mic-level or line-level analog input on XLR connectors. The DAI-24 includes a high-quality preamplifier and precision A/D conversion for each channel, as well as transport of converted channels over D-Mitri’s Ethernet audio network.

Features:

• Provides 24 mic-level or line-level analog inputs
• High-resolution A/D conversion: up to 96 kHz sample rate at 24 bits
• Accepts very wide range of input signal levels
• Software-controlled gain and phantom power for each input
• Integrates converted audio into D-Mitri’s Ethernet audio network
• Additional redundant AVB-capable port

Specifications:

• Analog Audio
  • Input Section: 16 analog inputs
  • Connectors: Gold-plated XLR 3-pin female
  • Maximum Input Level: +26 dBu (maximum range selected, 0 dB input gain)
  • Output Section: Eight analog outputs
  • Connectors: Gold-plated XLR 3-pin male
  • Maximum Output Level: +26 dBu into 600 ohms or greater (maximum range selected)
• A/D/a Conversion
  • Digital Conversion: 24-bit resolution, 96 kHz sampling rate
  • Analog Conversion: 24-bit resolution, 96 kHz sampling rate
• Digital Audio and Control
  • Network: Two AVB-capable Ethernet ports for connection to D-Mitri system
  • Software Control: Full bidirectional communication with D-Mitri processors for control by CueStation software within a client-server architecture, as well as external control via Open Sound Control protocol
• AC Power
  • Connector: powerCON 20
  • Operating Voltage Range: 100–240 V AC, 50–60 Hz
  • Power Consumption: 125 W maximum
• Physical
  • Dimensions:
    • Two rack spaces
    • 19" w x 3.5" h x 15.9" d
    • (483 mm x 89 mm x 404 mm)
  • Weight: 20 lbs. (9.1 kg)
• Notes
  • System Requirements: D-Mitri requires a Gigabit Ethernet infrastructure
  • Cabling: Cat-5e or Cat-6
