Meyer Sound CQ2 Self Powered Speaker
The Meyer Sound CQ-2 is a self-powered, phase-corrected reinforcement loudspeaker offering precise, high-Q coverage. The CQ-2 has a new, patented horn design that is the result of extensive research in Meyer Sound's calibrated anechoic chamber.
Specifications:
⦁ Frequency Response- ±4 dB from 40 Hz to 18 kHz
⦁ Phase Response - ±90° from 50 Hz to 16 kHz
⦁ Maximum SPL -136 dB @ 1 meter (CQ-1) / 139 dB @ 1 meter (CQ-2)
⦁ Dynamic Range - >110 dB, CQ-1 (Low Q System)
⦁ 6 dB points H: 80° (500 Hz to 16 kHz); V: 40° (1500 Hz to 12 kHz
⦁ 10 dB pointsH: 100° (500 Hz to 16 kHz); V: 50° (1500 Hz to 12 kHz)
⦁ CQ-2 (High Q System), -6 dB points H: 50° (800 Hz to 12 kHz); V: 40° (1500 Hz to 12 kHz)
⦁ 10 dB pointsH: 60° (800 Hz to 12 kHz);
⦁ V: 50° (1500 Hz to 12 kHz)
⦁ CQ-1 700 Hz, CQ-2900 Hz, Low Frequency 15" diameter MS-15 cone
⦁ High Frequency4" diaphragm MS-2010CQ horn compression driver
⦁ Type 10kΩ impedance, electronically balanced
⦁ Connector XLR (A-3) male and female
⦁ Nominal input level+4 dBu (1.23 Vrms)
⦁ Type Complementary power MOSFET output stages (audio class AB/H)
⦁ Burst Capability2 1240 Watts (620 Watts/channel)

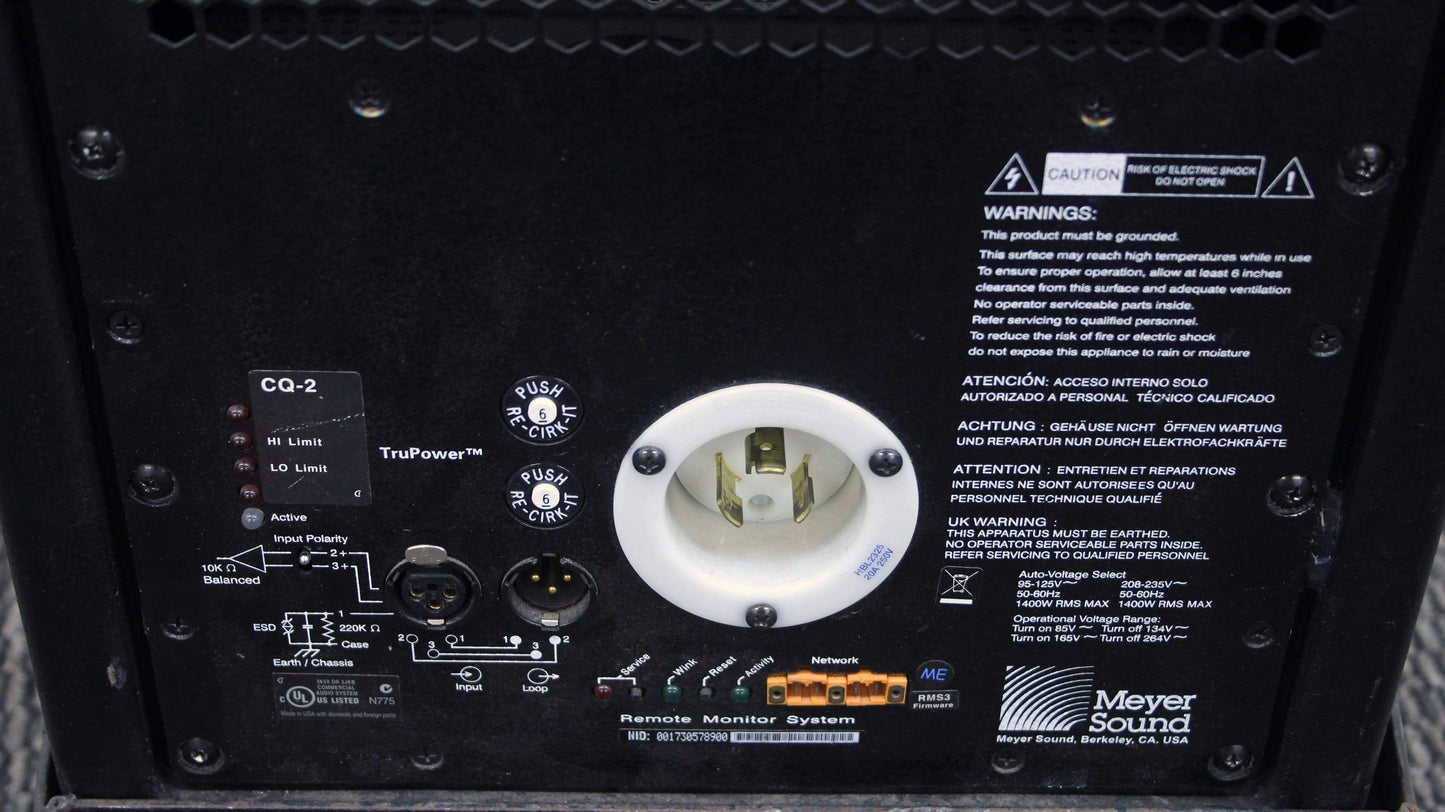

⦁ THD, IM, TIM .02 %, Connector 250V NEMA L6-20P (twistlock) inlet or IEC 309 male inlet
⦁ Automatic voltage selection 95-125 VAC and 208-235 VAC; 50/60 Hz4
⦁ Operational voltage range Turn on: 85 VAC; Turn off: 134 VAC; 50/60 Hz, Turn on: 165 VAC; Turn off: 264 VAC; 50/60 Hz
⦁ Max.Continuous RMS Current (>10 sec) @115 V: 8A @230V: 4A @100V: 10A
⦁ Burst RMS Current (<1 sec) @115 V: 15A @230V: 8A @100V: 18A
⦁ Max Peak Current During Burst @115 V: 22Apk @230V: 11Apk @100V: 25Apk
⦁ Soft-Current Turn-on Inrush current <12A@115V
⦁ Weight 130lbs
⦁ Dimensions 21" W x 30" H x 22 1⁄2" D
