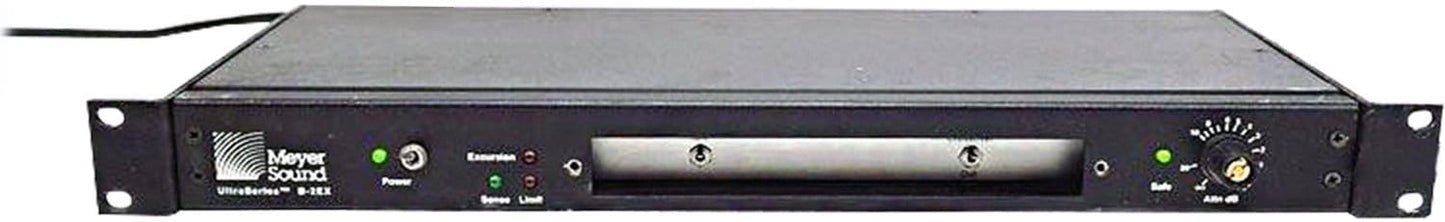

Meyer Sound B-2EX Processor
The Meyer Sound B-2EX is an active signal processor designed for use with Meyer Sound subwoofers. It occupies a single 1¾ inch rack space.
Features:
- Active crossover, 12 dB/octave slope
- Subwoofer frequency response alignment
- SpeakerSense™ driver protection
- Switch-selectable driver excursion protection
- Two-channel input sum-ming to provide a mono subwoofer signal
Specifications:
- Input Type: Balanced (active), 47k ohms
- Output Type: Active push-pull, will drive 600 ohms
- Maximum Input/Output Level:
- Balanced: + 26 dBv
- Unbalanced: 20 dBv
- Hum and Noise: -90 dBv ("A" weighted)
- Dynamic Range: 110 dB
- Sense Inputs: 10k ohm true differential
- Driver Protection Circuitry:
- RMS limiter, 100 msec integration time
- Frequency-selective excursion limiter
- Indicators:
- Sense: Green LED
- Limit: Red LED
- Excursion: Red LED
- Safe: Green LED
- Power: Green LED
- Controls:
- Front Panel: Attn control, AC on/off switch
- Preset Panel: Crossover in/out switch, Safe switch
- Connectors:
- Balanced Inputs/Output: XLR-type (A-3) female/male
- Sense Inputs: Banana receptacles
- Power: 100 -240 VAC, switchable in four ranges
- Physical Dimensions: 19"W x 1¾"H x 7¾"D
- Weight: 8 lbs. (3.25 kg)
