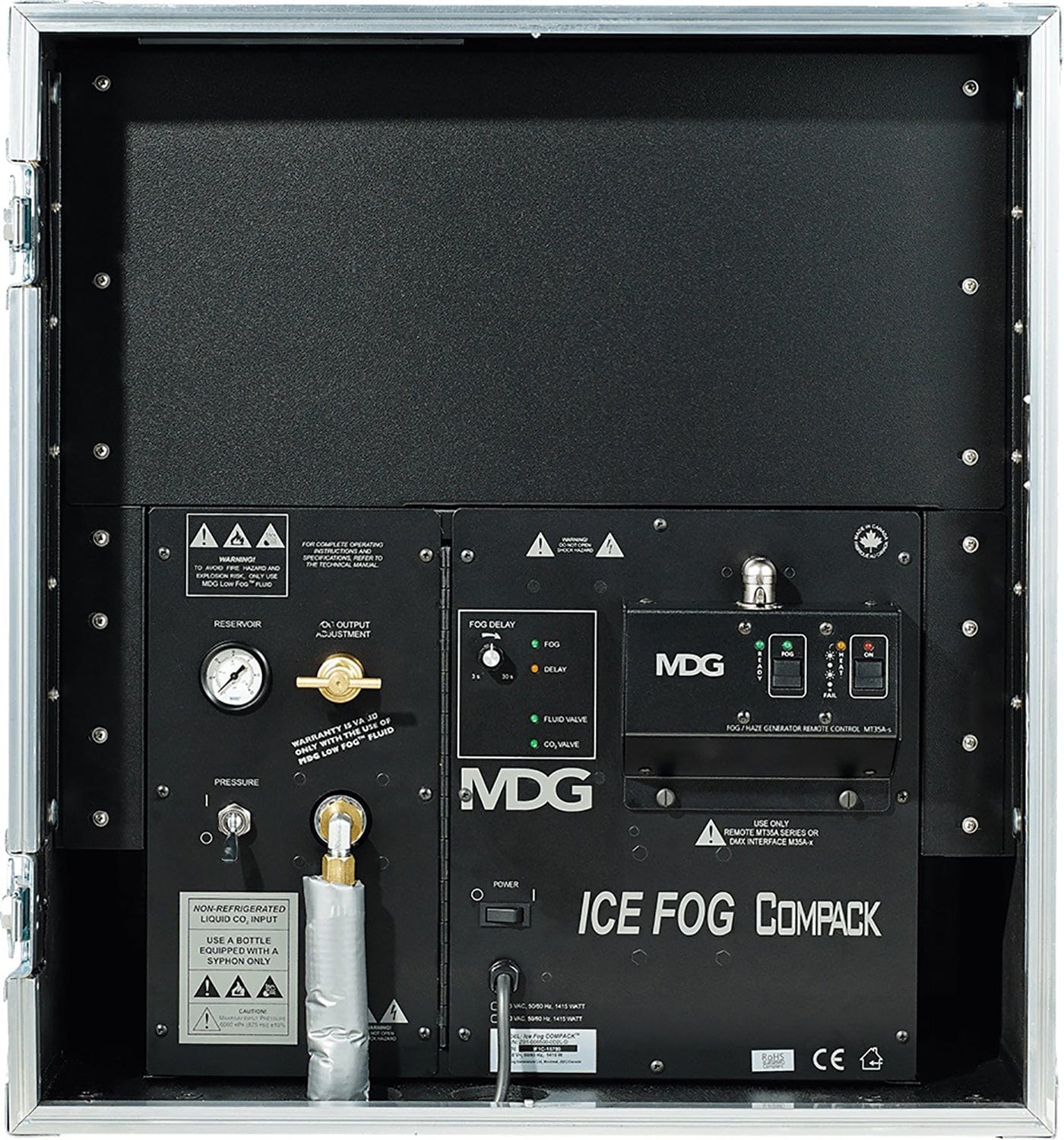

MDG Ice Fog Compack High Pressure Unit
The ICE FOG Compack creates a thick low-lying fog with zero residue without the use of dry ice.
Features:
- Extremely low fluid consumption: 35 ml (1.18 US fl oz) per minute at full output.
- Adjustable low fog density. 100 % duty cycle.
- High pressure version available
- Self-contained unit on wheels for easy transport
- Detachable remote control and 8 m (26 ft) cable included
- Compatible with DMX interface and remote control timer
Specifications:
- Liquid CO2 type: non-refrigerated
- Liquid CO2 consumption: 1.35 kg (3 lb) at 60.3 bar (875 psi) per minute
- Reservoir capacity: 2.5 L (0.66 US gallon)
- Fog colour: Pure white
- Particle size: 0.5 - 4.5 microns
- CO2 running time: 23 kg (50 lb) canister = 17 minutes
- Warm-up time: 8 minutes (maximum)
- Fluid type: MDG Low Fog
- Operating voltage (single phase): 115 or 230 VAC, 50/60 Hz
- Power consumption: 1,450 W
- Fluid consumption: 35 ml (1.18 oz) per minute at full output
- Total length: 1.15 m (45 1/8“)
- Operating length: 1.08 m (42 3/8”)
- Width: 63.5 cm (25”)
- Height: 82.5 cm (32 1/2”)
- Weight: 91 kg (200 lb)
- Approval: CE Declaration. SPE1000 approved
- Liquid CO2 type: non-refrigerated
- Liquid CO2 consumption: 1.35 kg (3 lb) at 60.3 bar (875 psi) per minute
- Reservoir capacity: 2.5 L (0.66 US gallon)
- Fog colour: Pure white
- Particle size: 0.5 - 4.5 microns
- CO2 running time: 23 kg (50 lb) canister = 17 minutes
- Warm-up time: 8 minutes (maximum)
- Fluid type: MDG Low Fog
- Operating voltage (single phase): 115 or 230 VAC, 50/60 Hz
- Power consumption: 1,450 W
- Fluid consumption: 35 ml (1.18 oz) per minute at full output
- Total length: 1.15 m (45 1/8“)
- Operating length: 1.08 m (42 3/8”)
- Width: 63.5 cm (25”)
- Height: 82.5 cm (32 1/2”)
- Weight: 91 kg (200 lb)
- Approval: CE Declaration. SPE1000 approved
