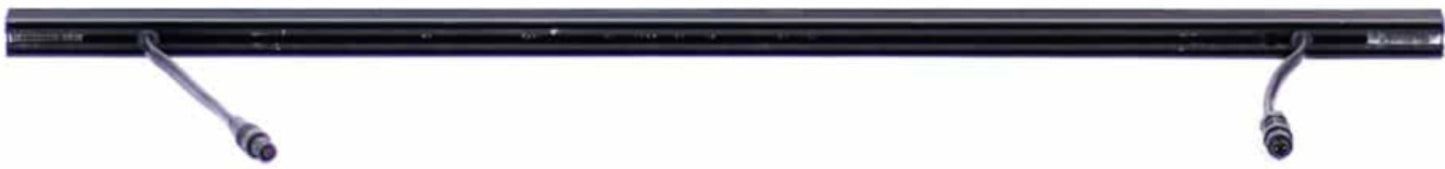

Martin VDO SCEPTRON 10 1000MM LED Strip
Only available as part of a complete system. Talk to a Sales Representative for more information.
The VDO Sceptron 10 is a linear outdoor-rated LED video fixture for the rental market with 10 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 10 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allow for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.
Features:
- Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and simple cabling system
- Combined power and data cabling (compatible with other products such as VDO Fatron and VDO Dotron)
- DMX Control
- P3 Control with VideoMapping
- Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
- Extensive range of built-in effects
- Intuitive mapping and addressing via P3 System Controller
- Fully brightness and color calibrated for optimal consistency between products (colors matched with VDO Fatron and VDO Dotron)
- Pixel-level brightness and color calibrated for a completely homogenous look
- High-quality 16-bit per color image processing technology
- 10 mm pixel pitch
- 250 cd per meter calibrated
- 750 lumen per meter calibrated
- Field-exchangeable diffusers and lenses
- IP65 rated for outdoor use
- Versatile rigging accessories
- Available in two lengths: 1000 mm and 320 mm
Specifications:
- Physical
- Length: 1000 mm (39.4 in.)
- Width: 27 mm (1.06 in.)
- Height without front: 28 mm (1.10 in.)
- Height with standard front (Square Diffuser): 42 mm (1.65 in.)
- Weight without front: 1.2 kg (2.6 lbs.)
- Weight with standard front (Square Diffuser): 1.4 kg (3.1 lbs.)
- Control and Programming
- Control options: Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX
- Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
- Protocol detection: Automatic
- Setting and addressing: Martin P3™ System Controller or RDM-compliant controller
- Color and intensity calibration: Pixel-level D
- MX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Firmware update: Via Martin P3™ System Controller
- Control modes, direct DMX control: RGB, Basic, Segment and Pixel
- DMX channels, direct DMX control: 3/10/13/22/103/307
- Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap
- DMX channels, DMX via P3: Wide range of options from 1 to 303
- Control/User Interface
- Device status: Multi-color visual indication
- Device test and reset: Magnetic pushbutton to call up local test patterns and reset device
- Optics
- Diffuser/Lens Options:
- Open Front
- Flat Diffuser
- Flat Smoked Diffuser
- Round Diffuser
- Round Smoked Diffuser
- Square Diffuser (supplied standard with fixture)
- Square Smoked Diffuser
- Tube Diffuser
- Tube Smoked Diffuser
- NoBlend Diffuser 10 mm
- NoBlend Smoked Diffuser 10 mm
- NoBlend Diffuser 20 mm
- NoBlend Smoked Diffuser 20 mm
- NoBlend Diffuser 40 mm
- NoBlend Smoked Diffuser 40 mm
- Asymmetric (Wall-Washing) Lens
- Photometric Data
- Color resolution: 16 bits per color (48 bits per pixel)
- Viewing angle: 120° x 120° (half-peak)
- Pitch (pixel center-to-center): 10.00 mm
- Luminous intensity, calibrated mode: 250 cd per meter
- Luminous output, calibrated mode: 750 lumen per meter
- Total output, calibrated mode: 8333 nits (fixtures placed in continuous surface at 30 mm center-to-center)
- LED Array VDO: 1 x 100
- Video Processing
- Brightness control
- Gamma correction and control
- Color temperature control
- Color space control
- Calibration processing
- Synchronization
- Signal Protocol
- Martin P3 (via Martin P3™ PowerPort) or DMX
- Construction
- Color: Matte black
- Base: Extruded aluminum profile
- Protection rating: IP65
- RoHS compliant
- Installation
- Mounting: Channel for M6 captive nuts on back of profile
- Mounting options: M6 bolts, optional sliding bracket (accepts M12 bolt), half coupler, spigot adapter, linear coupler, parallel coupler, pivot coupler, floorstand
- Orientation: Any
- Connections
- Power and data input: 6-pin custom (BBD) IP66-rated
- Power and data thru: 6-pin custom (BBD) IP66-rated
- Hot plugging compatible
- Electrical
- Nominal input voltage: 48 VDC +/- 4%
- Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin™ DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU
- Maximum power consumption, all LEDs at full intensity: 30 W
- Thermal
- Cooling: Convection Maximum ambient temperature (Ta max.): 55° C (131° F)
- Minimum ambient temperature (Ta min.): -30° C (-22° F)
- Total heat dissipation (calculated, +/- 10%): 115 BTU/hr
