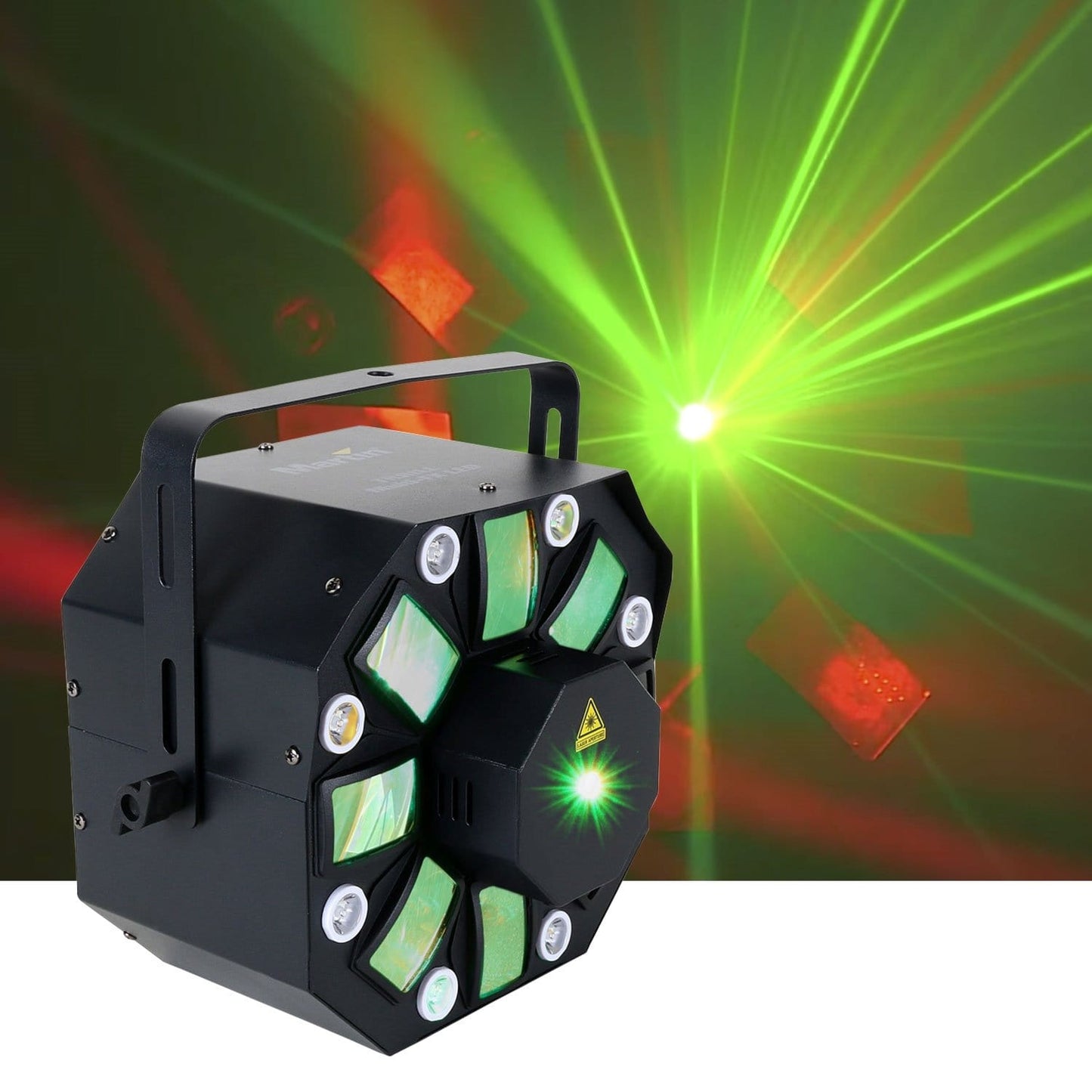

Martin THRILL Multi-FX 3-in-1 Multi LED FX Light

Martin THRILL Multi-FX 3-in-1 Multi LED FX Light

THRILL Multi-FX LED is a 3-in-1 LED light fixture designed to boost the wow factor and thrill your audience with highspeed mid-air looks in a variety of setups ranging from entertainment and club environments to wedding parties and corporate shows. This fixture delivers high output via sharp optics and is packed with eye-catching effects and hundreds of red and green laser beams washing over the crowd with pre-defined shapes and patterns.

Martin Heritage
For 30 years, the Martin brand has been the leading choice of professional lighting designers, rental and production houses, and installers across the global architectural, commercial, and entertainment lighting markets. With the THRILL series, Martin is bringing its industry-leading excellence in dynamic light and visual effects to new audiences by providing more affordable and easier-to-use models, while still retaining a die-hard dedication to quality and our customers.

Performance
THRILL Multi-FX LED is a 3-in-1 LED light fixture with an impressive number of tricks up its sleeve, guaranteed to make your show larger than life. It is equipped with laser, strobe, and rotating colored wash light effects with super bright output for a great variety of dazzling looks.With its high-speed, ultra-sharp laser effects, the THRILL Multi-FX LED is ideal for creating dramatic atmospheres and boosting energy levels.

Versatility
Via its built-in microphone, THRILL Multi-FX LED’s eye-catching effects can be synchronized to a music beat via audio trigger or run from the eight pre-programmed shows. For more control options, it can also be operated via DMX. This makes it the perfect fit for musicians, DJs and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment.

Portability
Its portable and lightweight design makes it ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.

Specifications:

• Dynamic Effects
• Multibeam effects
• Color mixing: RGBWA Color selection: 36 color presets
• Electronic dimming: 0-100%
• Strobe and pulse effects: Variable speed and action, random strobe
• Electronic 'shutter' effect: Instant open and blackout
• Strobe effects
• Color: White
• Strobe rate: TBA
• Special effects: On/off, strobe effect, pulse effects, random and blackout
• Laser effects
• Color: Red, green
• Strobe rate: TBA
• Special effects: On/off, strobe effect, pulse effects, random and blackout
• Control and Programming
• Control options: DMX, stand-alone
• Safety switch, laser: Keyed switch on/off operation
• DMX channels: 2/16
• Stand-alone trigger options: Sound-trigger, auto-run
• User interface: Control panel with LED display
• DMX compliance: ANSI E1.11 - USITT DMX512-A
• Optics
• Multibeam and strobe
• Multibeam light source: 5 x 3 W RGBWA LEDs
• Strobe light source: 8 x 1 W White LEDs
• Minimum LED lifetime: 30 000 hours (to >70% luminous output)
• Laser
• Green laser, power / wavelength: 50 mW / 532 nm
• Red laser, power / wavelength: 150 mW / 650 nm
• Aperture diameter: 7 mm
• Beam shape: Divergent Pulse duration (frequency): Not pulsed
• Maximum laser power of each beam from aperture: 7.5 mW
• Class: 3B (US: Class IIIB)
• Minimum laser lifetime: 3 000 hours
• Construction
• Housing: Steel
• Color: Black
• Protection rating: IP20
• Installation
• Mounting: Adjustable bracket, surface or truss mount
• Mounting points: Bracket for single rigging clamp, M12 or ½"
• Orientation: Any (respecting laser precautions)
• Location: Indoor, dry locations only, overhead use only
• Minimum distance above floor level: 3 m (9.8 ft.)
• Minimum distance from public: 3 m (9.8 ft.)
• Connections
• AC power in/thru: IEC male inlet/female connector, C14/C13
• DMX data in/thru: 3-pin XLR
• Electrical
• AC power: 100-240 V nominal, 50/60 Hz
• Fuse: F 3 AL, 250 V
• Maximum number of fixtures on AC power throughput, 100-130 V: 6 x THRILL Multi-FX LED or 3 A
• Maximum number of fixtures on AC power throughput, 220-240 V: 10 x THRILL Multi-FX LED or 3 A
• Power consumption figures are typical, not maximum. Allow for +/-10% variation.
• Typical Power and Current
• 110 V, 60 Hz: 0.5 A, 62 W
• 230 V, 50 Hz: 0.3 A, 66 W
• Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
• Thermal
• Cooling: Passive
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 0° C (32° F)
• Total heat dissipation (calculated, +/- 10%) at full intensity, full white: 225 BTU/hr.
• Approvals
• EU safety: EN 60598-1, EN 60598-2-17, EN 60825-1, EN 62031, EN 6247-1, EN 6247-2-13, EN 62493, IEC TR 62471-2
• EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
• FDA (pending)
• Whats's Included: Power cable, EU, IEC C13 female, molded Schuko, 1.5 m (4.9 ft.); Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.5 m (4.9 ft.); Mounting bracket; Set of keys for laser safetyswitch
• Compatiable Accessories: Super lightweight half-coupler rigging clamp, black: P/N 91602018 Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006
• Dimensions: Length: 249 mm (9.8 in.) Width: 229 mm (9.0 in.) Height: 249 mm (9.8 in.) Height with hanging bracket: 288 mm (11.3 in.)
• Weight: 4.0 kg (8.9 lbs.)
