Martin RUSH PAR 4 UV 100-Watt COB LED Par Can

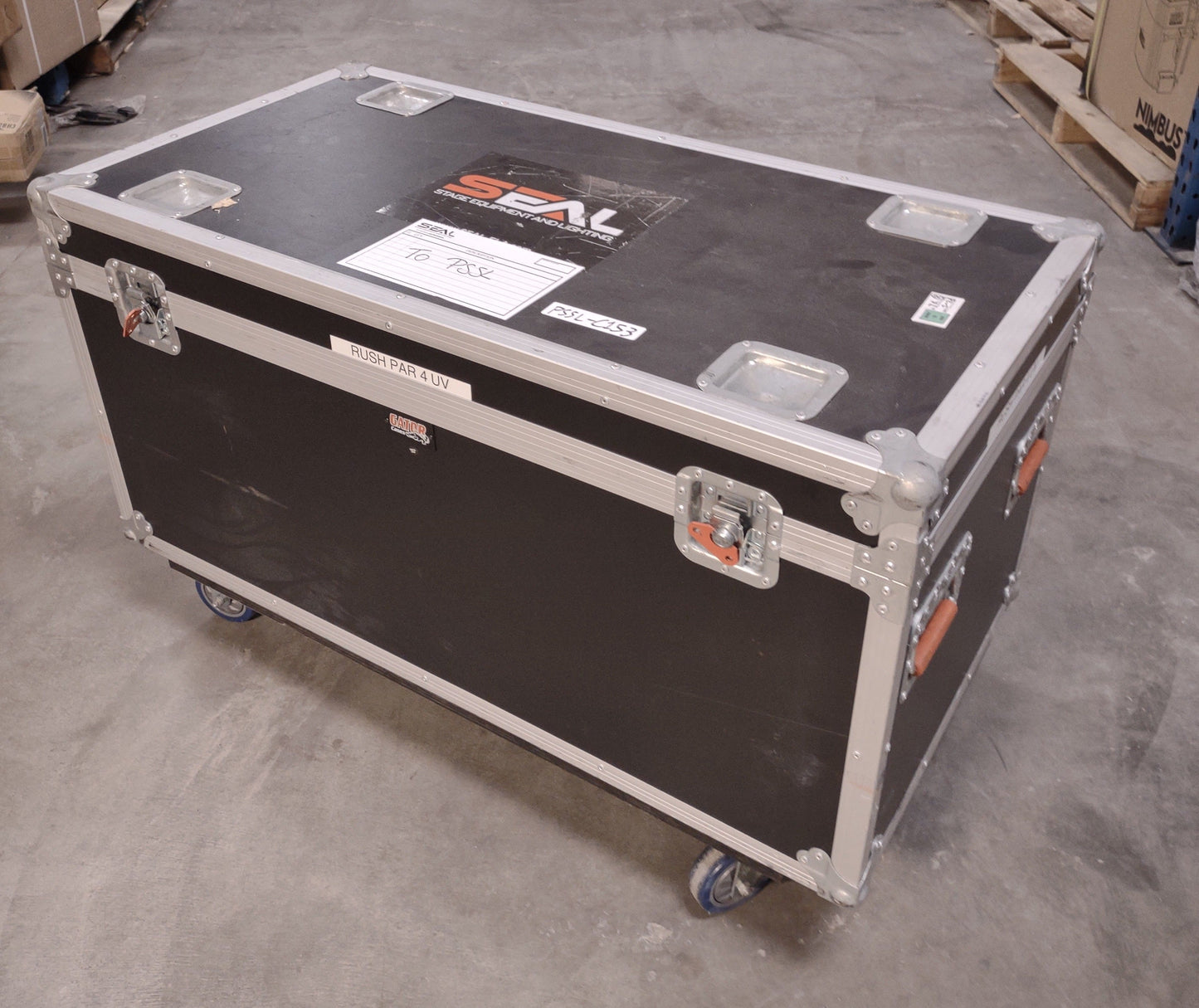

This package contains 8 units of the Martin RUSH PAR 4 UV 100-Watt COB LED Par Can in a sturdy road case.
Specs for each Martin RUSH PAR 4 UV 100-Watt COB LED Par Can unit:
The RUSH PAR 4 UV is a bright single-lens UV LED PAR can light fixture for use in blacklight applications. The fixture includes a 100 watt COB 400nm UV LED mounted in a reflector for high-output ultraviolet light, and has regulated air cooling for quiet operation. With electronic dimming and strobe and a bracket suitable for floor or truss mounting, the RUSH PAR 4 UV is ideal for a variety of nightlife, stage, and concert applications.
- Single-lens 100W UV LED PAR
- Electronic dimming and strobe
Features:
- 100 watt COB 400nm LV LED
- Forced air cooling for quiet operation
- Electronic dimming and strobe
- Bracket suitable for floor or truss mounting
- Lightweight construction (4 kg / 8.8 lbs.)
Specifications:
Physical
- Dimensions (L x W x H): 327 x 312 x 207 mm (12.8 x 12.3 x 8.1 in.)
- Weight: 4 kg (8.8 lbs.)
Dynamic Effects
- Dimming: 0 – 100%, coarse & fine control
- Shutter: Strobe & pulse effects, instant open and blackout
Control and Programming
- Control system: USITT DMX512/1990 with RDM
- DMX channels: 3
- RDM compliance: ANSI/ESTA E.120
- Interface: Control panel with backlit LCD display
Construction
- Color: Black
- Housing: Cast aluminum
- IP rating : IP 20
Installation
- Mounting points : Adjustable bracket, surface or truss mount
- Location: Indoor location only
- Orientation: Any
- Minimum distance to illuminated surfaces: 0.5 m (20 in.)
- Minimum distance to combustible materials: 0.1 m (4 in.)
Connections
- AC power input/output: Neutrik PowerCon
- DMX & RDM data in/out : 5-pin locking XLR
- RUSH PAR 4 UV User Manual 31
Electrical
- AC power: 100-240 V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Maximum total power consumption: 114 W
- Typical half-cycle RMS inrush current: 11.2 A
- Recommended Miniature Circuit Breaker when power linking* : Type D
*Per IEC 60898/UL489/CSA C22.2 No. 5
