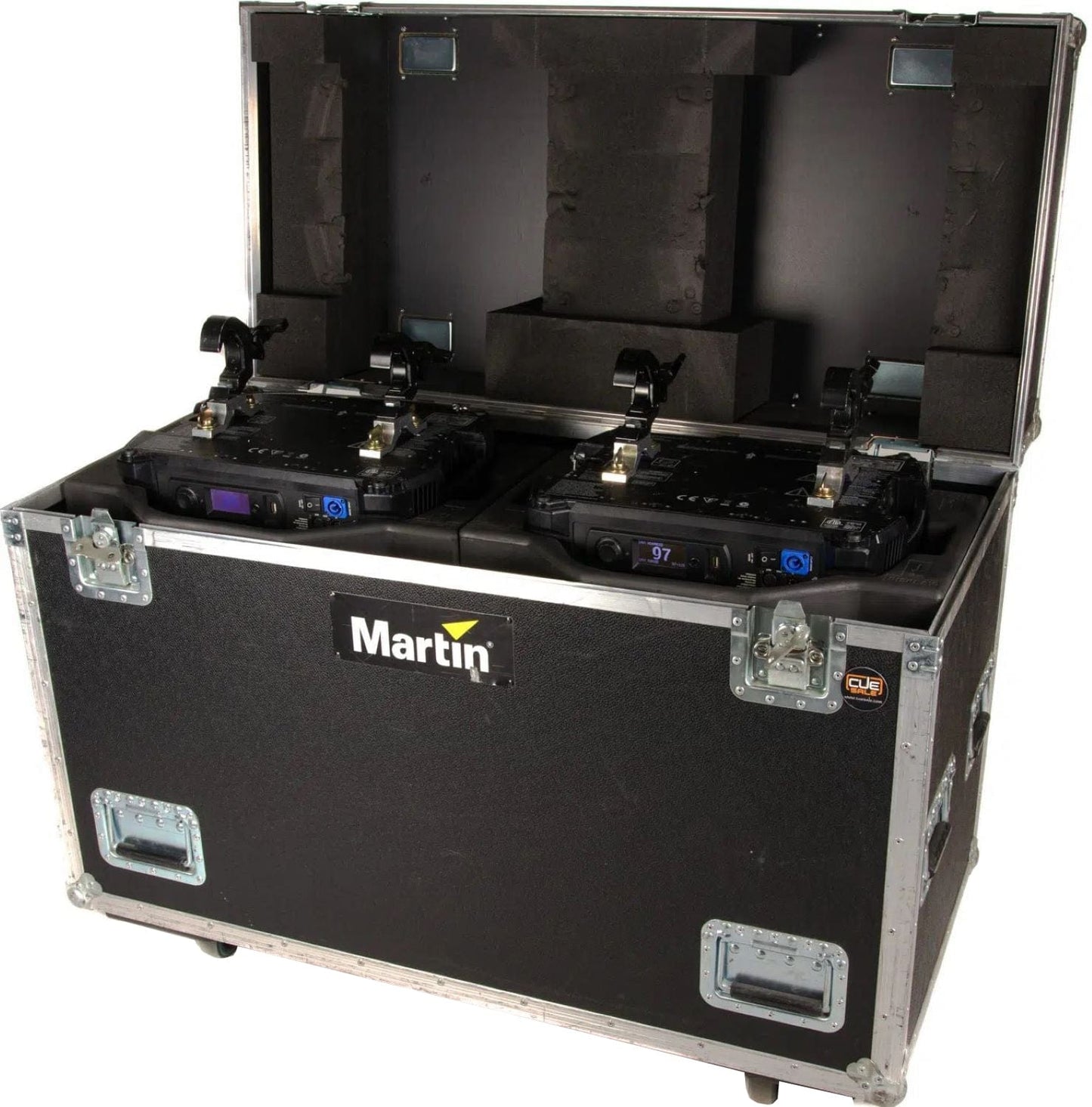

Martin MAC Viper Performance Profile Fixture with 2-Unit Flightcase
HIGH OUTPUT DISCHARGE-BASED PROFILE LUMINARE WITH CMY COLOR MIXING AND FRAMING SHUTTERS
The MAC Viper Performance is a full-feature framing fixture that delivers an output and performance never before seen in a fixture this size or one using so little power. Unlike other fixtures in this class, the MAC Viper Performance does not forgo an iris or animation wheel – they are both included along with a framing system and rotating gobos.
The framing system consists of four shutter blades that can all individually adjust +/- 30° while the entire system can rotate +/- 55°. The exacting system can repeat each cue with great precision. When fully focused, gobos can be nicely framed with a soft edge. The MAC Viper Performance has adopted the compact form, impressive speed, superior light quality and beautiful colors that the MAC Viper Profile is renowned for and uses the same 1000-watt lamp.
- 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
- 1:4 zoom – Fast zoom with auto-linked focus
- Four shutter blades individually adjust +/- 30° while the entire system rotates +/- 55°. Repeats cues with great precision
- 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
- 1:4 zoom – Fast zoom with auto-linked focus
- Four shutter blades individually adjust +/- 30° while the entire system rotates +/- 55°. Repeats cues with great precision
- Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look
- 5 rotating gobos – All glass gobos with only a slight focal separation to the framing system
- Animation wheel with continuous bi-directional rotation
- CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
- 7-slot color wheel – Static colors and correction filters for added color choice and bump effects
- Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
- Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
- Iris – Fast and tight iris with adjustable dynamic effects
- Strobe – Diverse strobe effects using mechanical or electronic control or in combination
- Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring option
- 4-facet prism – Real beam separation with rotation and index control for dynamic effects and accurate tiling
SPECIFICATIONS
- PHYSICAL
- Length:
- 472 mm (18.6 in.) base
- 566 mm (21.6 in.) head
- Width:
- 472 mm (18.6 in.)
- 335 mm (13.2 in.) base
- Height:
- 731 mm (28.8 in.) head straight up
- 748 mm (29.4 in.) maximum
- Weight: 37.9 kg (83.6 lbs.)
- Minimum center-to-center distance in side-by-side installation: 650 mm (25.6 in.)
- DYNAMIC EFFECTS
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 7 interchangeable dichroic filters + open, indexing, continuous rotation, random color
- Aerial wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
- Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable speed and direction
- Iris: 0 - 100%
- Zoom: Motorized
- Color temperature control: CTO, variable 6000 - 3200 K
- Framing: Rotatable framing module, +/- 55°, with 4 individually controllable blades
- Prism: Interchangeable 4-facet rotating prism
- Frost: Variable
- Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
- Dimming options: Choice of four dimming curves
- Zoom-focus linking system: 3-zone
- Pan: 540°
- Tilt: 268°
- Position correction system: Absolute position monitoring
- Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.)
- CONTROL AND PROGRAMMING
- Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
- 16-bit control: Dimming, rotating gobos, zoom, focus, pan and tilt
- DMX channels: 32/40
- Receiver: Opto-isolated RS-485
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Firmware update: USB memory device or USB/DMX hardware interface over DMX link
- OPTICS
- Zoom range: 10-44° (1:4)
- Color temperature: 6000 K
- Output: 26,000 lumens
- PHOTOMETRIC DATA
- * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
- LAMP
- Type: 1000 W short-arc discharge
- CRI (Color rendering index): >85
- Average lifetime: 750 hours
- Socket: PGJX36
- Ballast: Electronic
- Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
- SERVICE UTILITIES
- Fixture identification: User-settable fixture ID number
- CONSTRUCTION
- Housing: UV-resistant fiber-reinforced composite
- Color: Black
- Reflector: Glass, cold light
- Protection rating: IP20
- GOBOS
- Size: E27 (Size E, max. image diameter 27 mm)
- Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved)
- Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 +0/- 0.01 in.)
- Maximum image diameter: 27 mm (1.1 in.)
- Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)
- INSTALLATION
- Mounting points: Eight quarter-turn locking points
- Orientation: Any
- Minimum distance to combustible materials: 0.3 m (1.0 ft.)
- Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
- CONNECTIONS
- AC power input: Neutrik PowerCon
- DMX and RDM data in/out: 5-pin locking XLR
- USB memory devices: USB host socket
- ELECTRICAL
- AC power: 120-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 A
- Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V
- Typical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V *
- Power Consumption
- Typical: 1225 W *
- * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
- Typical: full output white, no effects moving, regulated fan speed.
- THERMAL
- Cooling: Filtered forced air (temperature-regulated, low noise)
- Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)
- ENVIRONMENTAL
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 20 lm/w
- LWR*: 628 lm/kg (285 lm/lb)
- LWR = Lumen-to-Weight Ratio
- APPROVALS
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
- EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class A
- Canadian safety: CSA E598-2-17 (CSA E60598-1)
- Canadian EMC: ICES-003 Class A
- Australia/NZ: C-TICK N4241
- INCLUDED ITEMS
- Lamp (installed): P/N 97010346
- Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001
- Safety and installation manual: P/N 35000258
- RELATED ITEMS
- Martin Companion Cable: P/N 91616091
- Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
- ACCESSORIES
- Power Input Cables: Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
- Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
- Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
- Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
- (H07RN-F are European approved cables, SJOOW are US approved cables)
- Power connectors: Power Connector PowerCON Female : P/N 91611794
- T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008
- Half-coupler (tube) clamp: P/N 91602005
- G-clamp (suspension with yoke vertically downwards only): P/N 91602003
- Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007
- Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001
- Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
- Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
- Flightcase for 2 x MAC Viper: P/N 91510180
- SPARE PARTS
- Osram HTI 1000/PS Lok-it lamp: P/N 97010346
- Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
- ORDERING INFORMATION
- MAC Viper™ Performance in cardboard box: P/N 90233100
- MAC Viper™ Performance in double flightcase: P/N 90233110
- SHIPPING INFORMATION
- In cardboard carton:
- Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
- Shipping weight: 41 kg (90.4 lbs.)
- Quantity on pallet: 8 fixtures
- Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
- Pallet weight (incl. pallet): 350 kg (771.7 lbs.)
