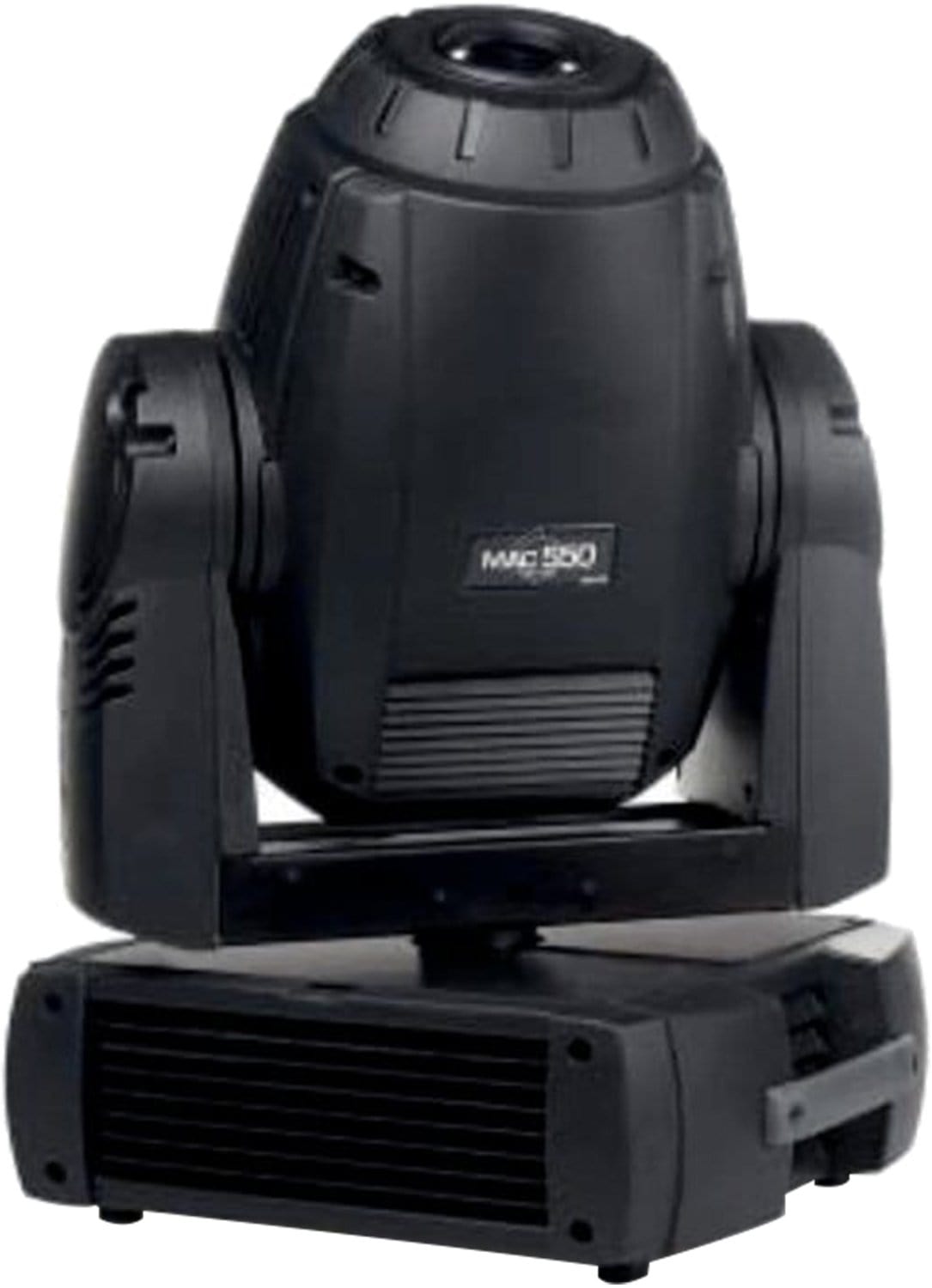

Martin MAC 550 Moving Light Spot
The MAC 550 features unprecedented output for a 400 W profile, astounding graphics and animation, a motorized zoom and new color and gobo motors.
Features:
- 400 W short arc discharge lamp
- 2 x 8 position color wheels plus open
- Gobo animation wheel with full movement / direction control
- 9 static and 6 indexable rotating gobos plus open
- Interchangeable rotating prism
- Motorized iris
- Strobe effect up to 10 Hz, random strobe, pulse effects, instant open and blackout
- Motorized zoom and focus
- Mechanical dimming
- Pan and tilt range of 540°/246°
- Modular design for easy maintenance and servicing
- Electronic ballast with hot lamp restrike and flicker free light
- Variable fan control for quieter operation
Specifications:
- Physical
- Length: 450 mm
- Width: 365 mm
- Height: 636 mm, head straight up
- Weight: 31 kg
- Dynamic Effects
- Color wheel: Two wheels, each with 8 filters + open, indexing, continuous rotation
- Rotating gobo wheel: 6 interchangeable gobos + open, indexing, continuous gobo rotation & scrolling, shake Static gobos: 9 interchangeable gobos + open, continuous scrolling, random gobo
- Gobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
- Iris: 10 - 100% diameter, pulse effects
- Mechanical dimmer: 0 - 100%
- Shutter: Strobe effect up to 10 Hz, random strobe, pulse effects, instant open and blackout
- Focus: 2 m to infinity
- Zoom: 14° - 30°
- Pan: 540°
- Tilt: 246°
- Control and Programming
- DMX channels: 21/27
- Setting and addressing: Control panel with LED display
- 16-bit control: Color wheels 1 + 2, rotating gobo wheel, dimmer, iris, focus, zoom, pan & tilt
- Movement control options: Tracking and vector
- Protocol: USITT DMX512/1990
- Receiver: Opto-isolated RS-485
- Firmware update: Serial upload via DMX link
- Lamp
- Type: 400 W short-arc discharge
- Fitted as standard: Osram HTI 400 W/D3
- Color temperature: 7500 K
- CRI (Color rendering index): 80
- Average lifetime: 750 hours
- Hot restrike: Yes
- Socket: Double-ended SFc 10-4 with key
- Ballast: Electronic
- Construction
- Color(s): Black
- Housing: UV-resistant fiber-reinforced composite
- Reflector: Glass, cold light
- Protection rating: IP20
- Gobos
- Outside diameter: 27.9 mm +0/- 0.3 mm
- Maximum image diameter: 23 mm
- Maximum thickness: 1.1 mm in static slots, 4 mm in rotating slots
- Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coating
- Recommended metal: 0.5 mm aluminum
- Gobo Animation Wheel
- Outside diameter: 116 mm +0/- 0.25 mm
- Image outer diameter: 112 mm
- Image inner diameter: 32 mm
- Construction: 0.5 mm aluminum, magnetic mounting
- Installation
- Mounting points: 2 pairs of 1/4-turn locks
- Orientation: Any
- Connections
- AC power input: 3 m integral cable without power plug
- DMX data in/out: 3-pin and 5-pin locking XLR
- Electrical
- AC power: 100-120/208-240 V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch-mode
- Main fuse: 6.3 AT (for 200-240 V power)
- Main fuse: 10 AT (for 100-120 V power)
- Typical Power and Current
- 100 V, 50 Hz: 650 W, 6.8 A, PF 0.954
- 100 V, 60 Hz: 640 W, 6.7 A, PF 0.961
- 120 V, 60 Hz: 626 W, 5.5 A, PF 0.956
- 208 V, 60 Hz: 592 W, 3.1 A, PF 0.936
- 230 V, 50 Hz: 594 W, 2.8 A, PF 0.927
- 250 V, 50 Hz: 594 W, 2.6 A, PF 0.921
- Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
- Thermal
- Cooling: Filtered forced air (temperature-regulated)
- Maximum ambient temperature (Ta max.): 40° C
- Maximum surface temperature, steady state, Ta=40° C: 160° C
- Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 2200 BTU/hr.
- Approvals
- EU EMC: EN 50 081-1, EN 50 082-1
- EU safety: EN 60598-1, EN 60598-2-17
- Canadian safety: CSA C22.2 No. 166
- US safety: ANSI/UL 1573
- Included Items
- Osram HTI 400/D3 lamp (installed): 97010211
- Radial breakup gobo animation wheel (installed): 62325048
- Two T-shaped Omega brackets with 1/4 turn fasteners: 91602008
- User manual: 35000136
- Accessories
- GE CSR400/S/DE/75 lamp: 97010245
- Spiral breakup gobo animation wheel: 62325049
- Linear breakup gobo animation wheel: 62325050
- Coarse tangential gobo animation wheel: 62325051
- Cloud breakup gobo animation wheel: 62325094
- Elliptical breakup gobo animation wheel: 62325095
- G-clamp: 91602003
- Half-coupler clamp: 91602005
- Quick trigger clamp: 91602007
- Double flightcase, MAC 550 Profile, MAC 700 Wash, MAC 700 Profile: 91510020
- Spare Parts
- Osram HTI 400/D3 lamp: 97010211
- 6.3 AT main fuse: 05020020
- 10 AT main fuse: 05020025
- Air filter (head, side): 20800170
